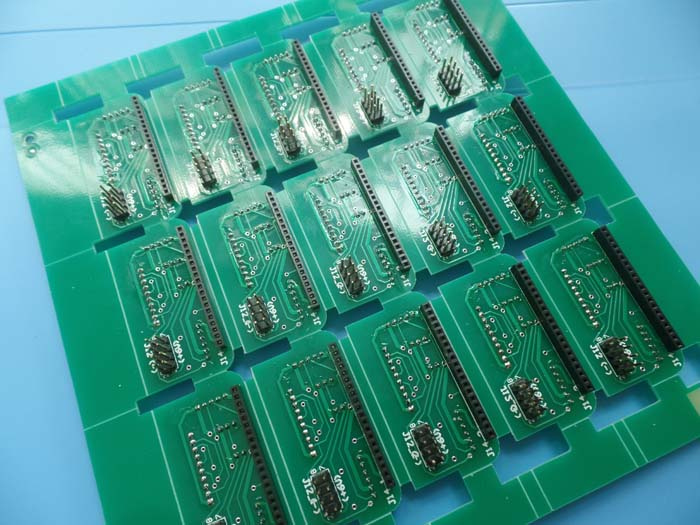

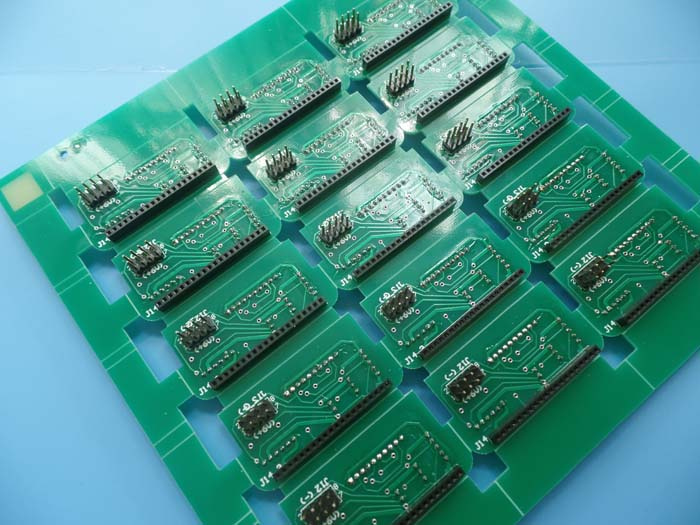

Printed circuit board Assembly 2 Layer PCB SMT with HASL

Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.6mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Board dimension	188 x 181mm
Board Type	Double Sided PCB
Board Thickness	1.6mm +/-0.16
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

Surface Finish	HASL Lead free
RoHS Required	Yes
Surface Cu thickness	35 um (1oz)

Color of Silkscreen	White
Number of Silkscreen	1
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13um

Through hole assembly	YES
Sides of through hole assembly	2
SMD assembly	NO
Sides of SMD assembly	NO

Total quantity of components	6
Quantity of SMT	0
Quantity of Through holes	6
Applications
RoHS Required	YES

Laminates --- FR-4 Applied on printed circuit boards (PCBs)
FR-4 grade materials are generally used on the circuit board has many types, but most are based
on the so-called four function (Tera-Function) composite material which is composed of woven
fiberglass cloth with an epoxy resin binder that is flame resistant.

FR-4 is the primary insulating backbone upon which the vast majority of rigid printed circuit boards
(PCBs) are produced. A thin layer of copper foil is laminated to one or both sides of an FR-4 glass
epoxy panel. These are commonly referred to as copper clad laminates (CCL).

FR-4 copper-clad sheets are fabricated with circuitry interconnections etched into copper layers to
produce printed circuit boards (PCBs). More sophisticated and complex FR-4 printed circuit boards
(PCBs) are produced in multiple layers, also known as "multilayer circuitry"
