Printed Circuit Board PCB Double Sided Lead Free HASL
| Price: |
US $ 0.39/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1280R8.2 |
| Surface Finish: |
Lead Free HASL |
| Board Thick: |
1.565-1.62mm |
| Copper Thick: |
35um |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Min Line Width: |
8.1 Mil |
| Min Line Spacing: |
7.6 Mil |
| Board Plating: |
0.0030" |
| Forming: |
V-Cut |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

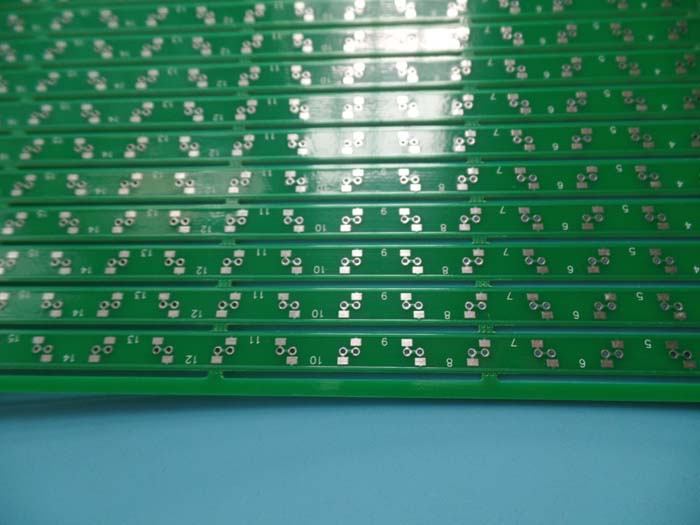

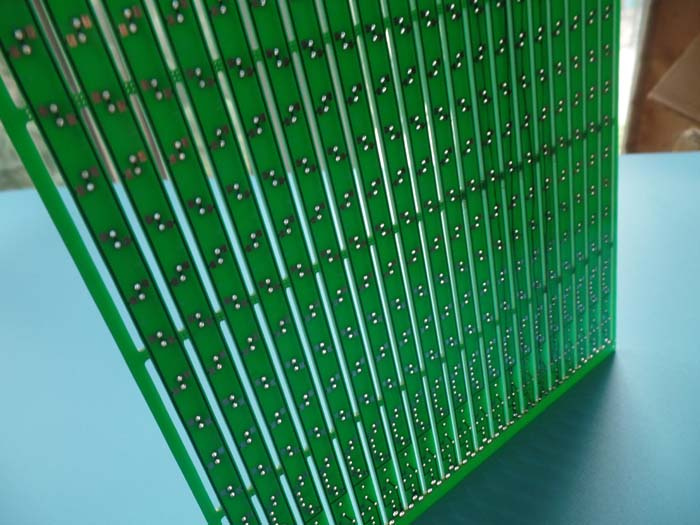

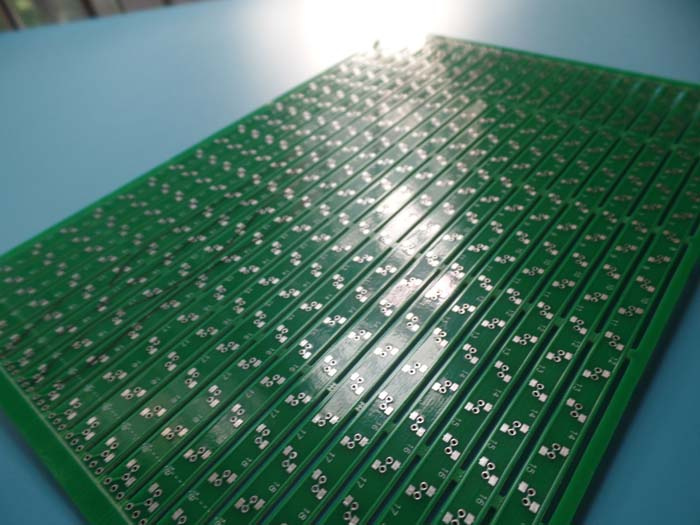

Printed Circuit Board PCB Double Sided Lead Free HASL with 1.6mm thick 1 oz copper
board
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.1.565-1.62m
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Kuang Shun. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 TG170 | FR-4 TG170 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.60±10%mm | 1.565-1.62mm |
| Outer copper foil | >=35 um | 43.8um |
| Inner copper foil | / | / |
| Warp-twist | <= 0.75% | 0.61% |
| Legend | Type | KUANG SHUN | KUANG SHUN |
| Color | White | White |
| Location | CS | CS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | WWYY |
| Marking form | NA | OK |
| Location | CS | CS |
| Min line width (mil) | 7.87 | 8.1 |
| Min line spacing (mil) | 7.8 | 7.6 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KUANG SHUN | KUANG SHUN |
| Color | Green | Green |
| Thickness | >=10 um | 14 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | Lead free HASL | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-CUT | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012B | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Design For Manufacturability
This manufacturability guide provides an overview of various areas that printed circuit board
designer may take into consideration on the fabrication possibility, manufacturing cost and re
liability of their products. This DFM is divided into 5 parts for our readers. This is the section
| Metal Core Capability |
| NO. | Parameter | Value |
| 1 | Type of Metal Core | Aluminum, Copper, Iron |
| 2 | Model of Metal Core | A1100, A5052, A6061, A6063, C1100 |
| 3 | Surface Finish | HASL, Immersion Gold, Immersion Silver, OSP |
| 4 | Thickness of Surface plating | HASL: Sn>2.54µm, ENIG: Au 0.025-0.1µm,
Ni 2.5-5µm |
| 5 | Layer Count | 1-4 Layers |
| 6 | Maximum of Board Size | 23" x 46" (584mm×1168mm) |
| 7 | Mininum of Board Size | 0.1969" x 0.1969" (5mm×5mm) |
| 8 | Board Thickness | 0.0157" x 0.2362" (0.4-6.0mm) |
| 9 | Copper Thickness | 0.5OZ(17.5µm),1OZ(35µm),2OZ(70µm),
3OZ(105µm),4OZ
(140µm) |
| 10 | Minimum Track Width | 5mil (0.127mm) |
| 11 | Minimum Space | 5mil (0.127mm) |
| 12 | Minimum Hole Size | 0.0197" (0.5mm) |
| 13 | Maximum Hole Size | No limit |
| 14 | Minimum Holes Punched | PCB thickness <1.0mm: 0.0394" (1.0mm) |
| PCB thikness 1.2-3.0mm: 0.0591" (1.5mm) |
| 15 | PTH Wall Thickness | >20µm |
| 16 | Tolerance of PTH | ±0.00295" (0.075mm) |
| 17 | Tolerance of NPTH | ±0.00197" (0.05mm) |
| 18 | Deviation of Hole Position | ±0.00394" (0.10mm) |
| 19 | Outline Tolerance | Routing: ±0.00394" (0.1mm) |
| Punching: ±0.00591" (0.15mm) |
| 20 | Angle of V-cut | 30°, 45°, 60° |
| 21 | V-cut Size | 0.1969" x 47.24" (5mm×1200mm) |
| 22 | Thickness of V-cut Board | 0.0236" x 0.1181" (0.6-3mm) |
| 23 | Tolerance of V-cut Angle | ±5º |
| 24 | V-CUT Verticality | ≤0.0059" (0.15mm) |
| 25 | Minimum Square
Slots Punched | PCB thickness < 1.0mm: 0.0315" x 0.0315"
(0.8 x 0.8mm) |
| PCB thickness 1.2-3.0mm: 0.0394" x 0.0394" (1.0 x 1.0mm) |
| 26 | Minimum BGA PAD | 0.01378" (0.35mm) |
| 27 | Minimum Width of
Solder Mask Bridge. | 8mil (0.2032mm) |
| 28 | Minimum Thickness
of Solder Mask | >13µm (0.013mm) |
| 29 | Insulation Resistance | 1012ΩNormal |
| 30 | Peel-off Strength | 2.2N/mm |
| 31 | Solder float | 260ºC 3min |
| 32 | E-test Voltage | 50-250V |
| 33 | Thermal Conductivity | 0.8-8W/M.K |
| 34 | Warp or Twist | ≤0.5% |
| 35 | Flammability | FV-0 |
| 36 | Minimum Height of
Component indicator | 0.0059"(0.15mm) |
| 37 | Minimum Open Solder
Mask on Pad | 0.000394" (0.01mm) |
Bicheng PCB board
Bicheng Enterprise Limited offers single sided PCB, double sided PCB and multilayer circuit
boards. We have been serving electronics industry in Shenzhen, China for 14 years.
OUR ADVANTAGES
* Your satisfied source to buy printed circuit boards (PCBs)
* All PCBs are 100% tested (flying probe or fixture test)
* Free panelizing
* Special price for partners
* On time delivery
* No minimum order quantity
* Worldwide shipping, door to door service
OUR PRODUCTS
* PCB Prototypes and PCB mass production
* Rigid PCB Fabrication
* Flexible PCB (FPC)
* PCB up to 32 layers
* RoHS complaint, Lead free PCBs
* Material: FR-4, High Tg (Tg170, Tg180), RO4350B, RO4003C, Polyimide, Aluminum core.
* Controlled Impedance
* Hybrid PCB
* Heavy copper
* Surface finish: HASL, HASL lead free, Immersion tin, Immersion silver, Immersion gold, Gold
finger
* Blind via, countersunk hole, castellation hole, press-fit hole
* 3 days to 4 weeks lead time
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
