Professional Duct Fiber Cable Unitube Optical Fiber Cable

Prod Model:	GYXY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber:	G652D
Armored:	No Armored
Strength Member:	Two Parallel Steels Wire
Tube:	Central Loose Tube
Material Of Jacket:	HDPE/Lszh /Flame Retardant /Anti-Roden
Bend Radius:	Static 10*Cable-D: Dynamic 20*Cable-D
Applications:	Aerial and Duct
Operating Temperature:	-40°c~+70°c
Certificate:	ISO9001 RoHS Tlc
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-288
Brand:	Efon
Sheath Material:	HDPE/LSZH Sheath/Flame Retardant Sheath/Anti-Roden

Product Description

Product Description

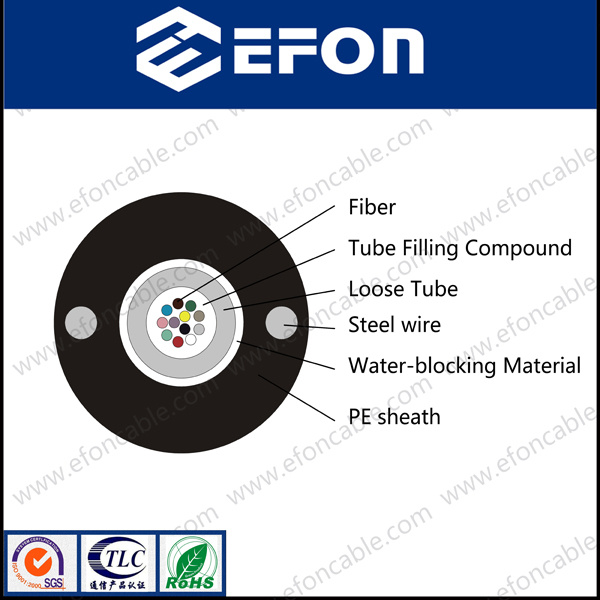

  The fibers,250µm,are positioned in a loose tube made of a high modulus plastic. The tubes ate filled with a water-resistant filling compound, Over the tube water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides, The cable is completed with the PE sheath.

Feature

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Two parallel steel wires ensure tensile strength
PE sheath protects cable from ultraviolet
Small diameter light weight and friendly installation
Long delivery length
Performance
Applications: Suitable for long-distance communication and indoor communication
Way of laying: aerial duct
Operating temperature: -40 ~ + 70 °C
Bending Radius: Static 10*Cable-diameter: Dynamic 20*Cable-diameter

Products Standard

Mechanical Performance :
Max Tension Performance : IEC 60794-1-2-E
Max. Operation Tension : IEC 60794-1-2-E1
Crush Test : IEC 6079 -1-2-E3
Impact Test : IEC 60794-1-2-E4
Repeated Bending : IEC 60794-1-2-E6
Torsion Test : IEC 60794-1-2-E7
Cable bend : IEC 60794-1-2-E11A
Attenuation Coefficient : ITU-T G.652
Structural Test : IEC-60793-1-20
Environmental Performance
Temperature Cycling : IEC 60794-1-2-F1
Water Penetration : IEC 60794-1-2-F5B
Filing Compound Flow : IEC 60794-1-E14

Technical Parameters

Fiber Count		2-8	10-12	14-24
Diameter of steel wire(mm)		0.7
Diameter of Loose tube(mm)		2.0	2.4	2.8
Diameter of Cable(mm)		5.8	6.0	6.3
Gross weight(Kg/Km)		54	55	62
Min. bending radius		Static 10xD     Dynamic 20xD
Max. tensile force, N		Short term/ Long term   1000N/300N
Max Crush Resistance(N/100mm)		Short term/ Long term   400N/200N
Allowable  T emperatures	operation	-40°C - +60°C
	storage	-50°C - +70°C
	install.	-20°C - +50°C
