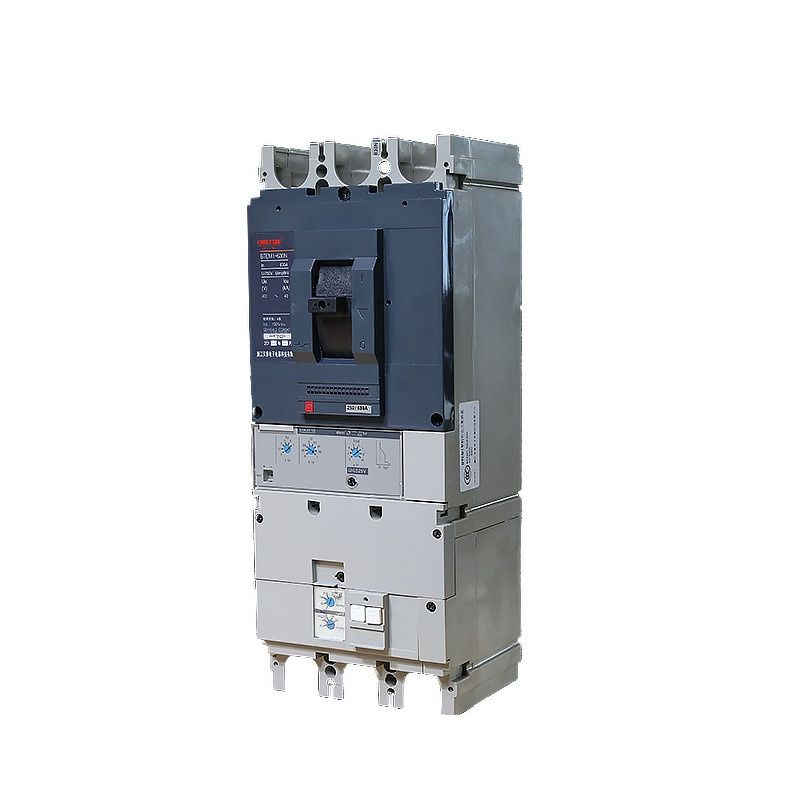

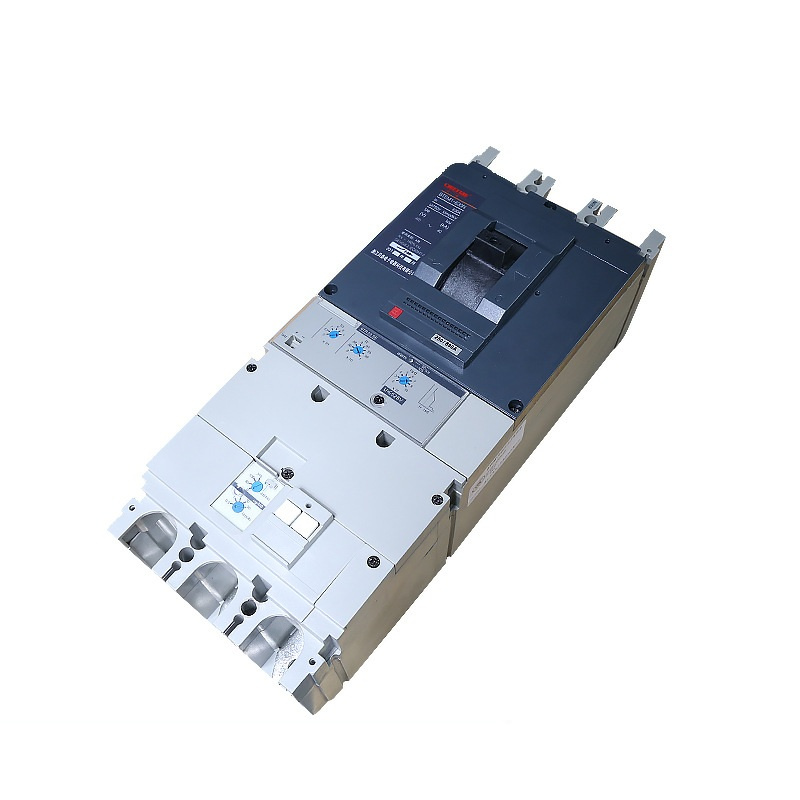

Professional Factory 4 Poles Number Ns 630n 630A Voltage Circuit Breaker

Name: Professional Factory 4 Poles Number Ns 630n 630A Voltage Circuit Breaker
Brand: all-electronics-online.com
SKU: 730322812
Availability: InStock
Rating: 5 (85 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	NS-630
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

Working environment

♦ The altitude bellows 2,000m;

♦ Circuit breaker may be used between -25ºC and +70ºC. For temperatures higher than 40ºC(65ºC for circuit breakers used to protect motor feeders), devices must be derated;

♦ It can withstand the impact from humid air, salt spray, oil mist and mold;

♦ Pollution degree 3;

♦ Installation category III.

Functions and characteristics

Item No.		NS100/160/250		NS400/630		NS800-1600
Number of poles:		3P	4P	3P	4P	3P	4P
Control	Manual	with toggle with direct or extended rotary handle

Connections	Fixed	front connections
	Plug-in	front conections/rear connections
Electrical characteristics as per IEC60947-2 and EN60947-2
Rated current(A)	In	100A,160A,250A		400A,630A		800, 1000,1250,1600
Rated operating voltage(V)	Ue	AC50/60Hz, 690V
Rated insulation voltage(V)	Ui	800V
Rated impulse withstand voltage(kV)	Uimp	8kV
Utilization category		A
Operation performance	Mechanical	8500		6000		10000
	Electrical	1500		1000		5000
Indication and control auxiliaries
Auxiliary switch		*
MX shunt coil		*
MN under voltage coil		*
Dimensions(mm) W X H X D		105 X 161 X 86	140 X 161 X 86	140 X 255 X 110	185 X 255 X 110	210 X 327 X 147	280 X 327 X 147

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
