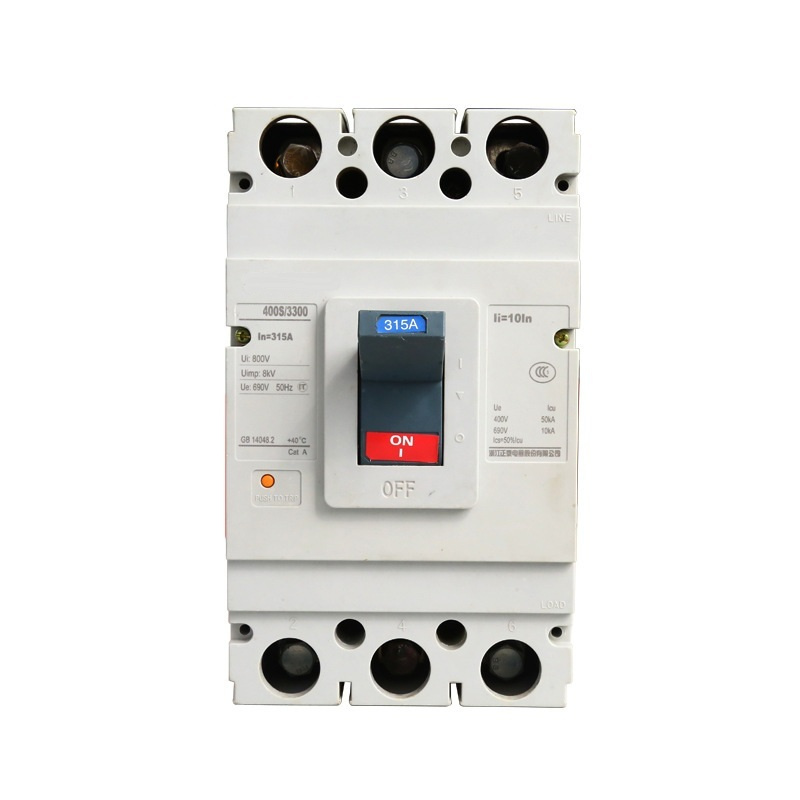

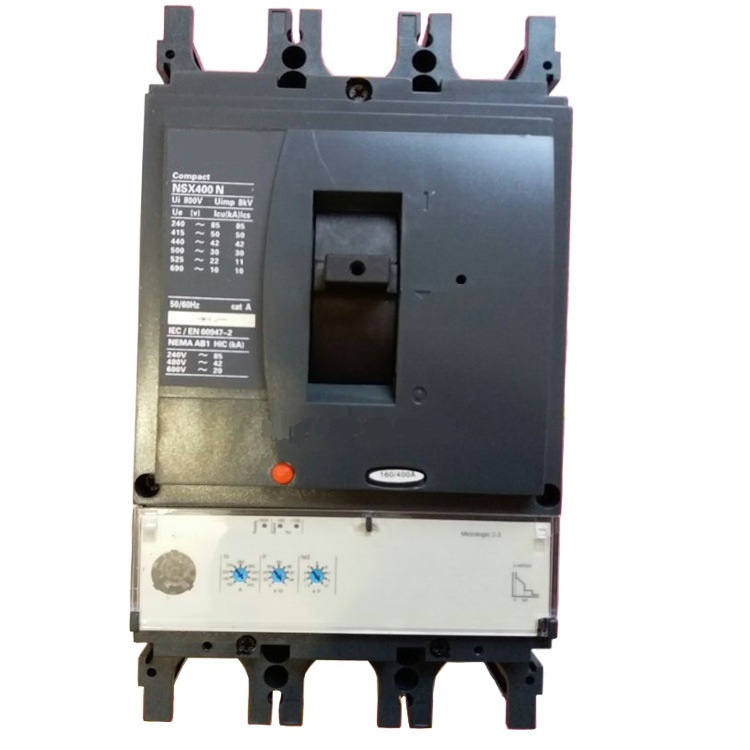

| Prod Model: |
NS-400N |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |

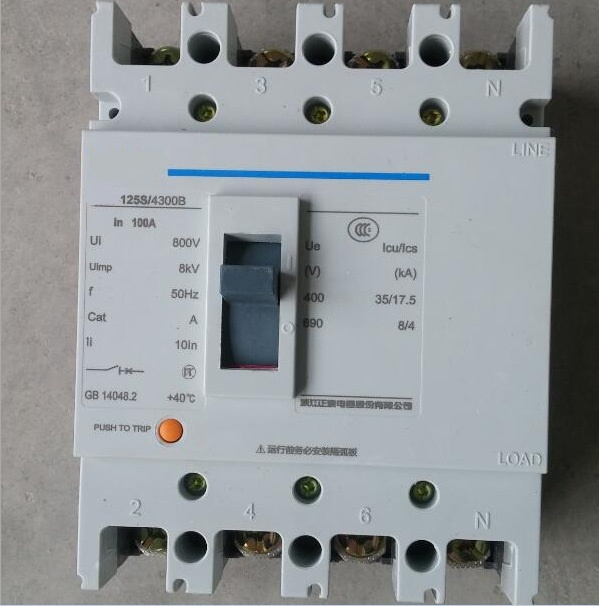

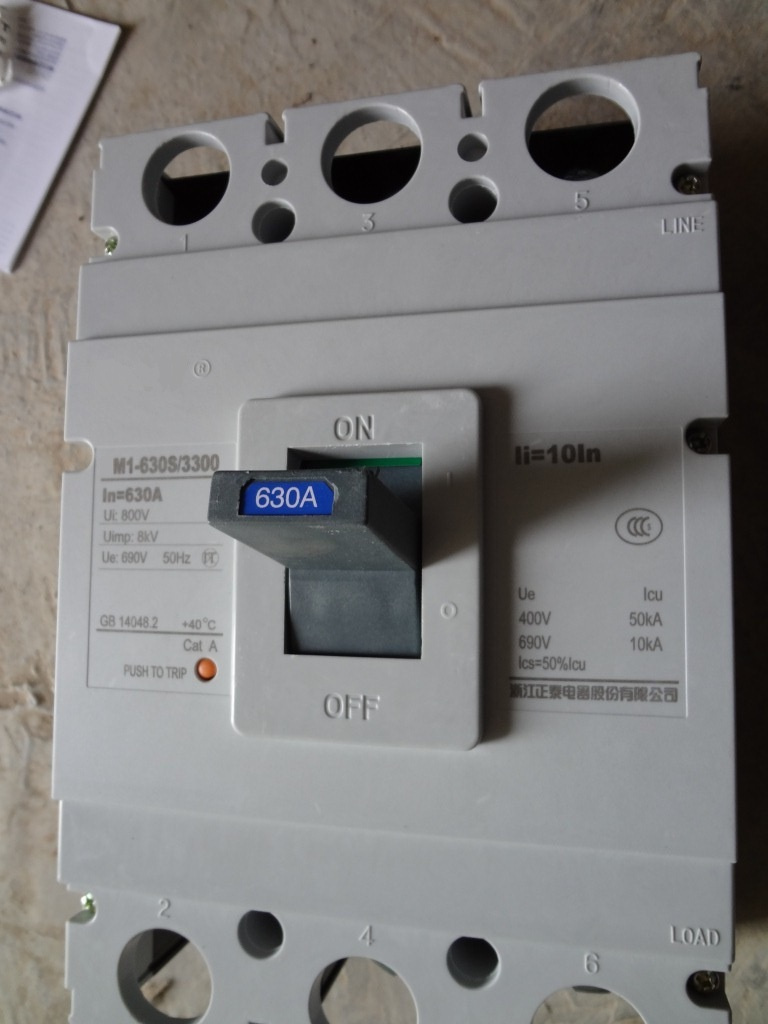

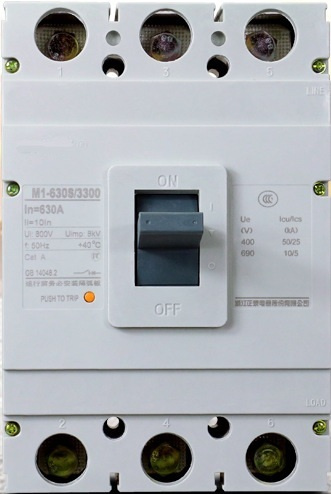

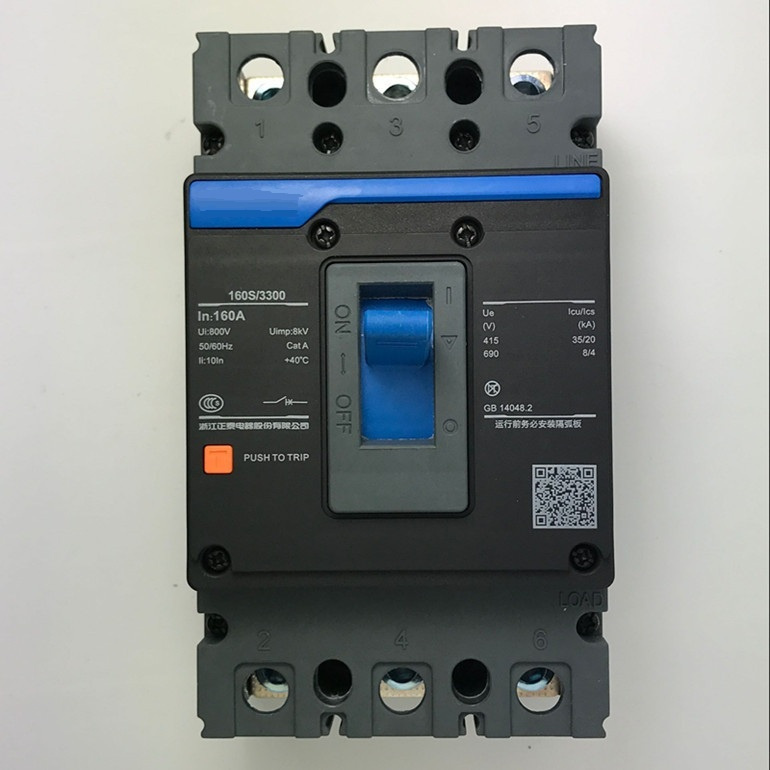

Product Description
About NS
Our NS series of MCCB has already provided ODM/OEM and other related services to many well-known demestic and foreign manufacturers.
"With professional heart, do professional thing" reflects our commitment to the pursuit of excellent quality.
In order to ensure each MCCB can meet the high standard requirement of performance and safety, every production workshop is equipped with long-delay, short delay, in stantaneous efficacy desk, withstanding voltage calibration desk, mechanical life test rack, intelligent tester and other testing equipment. We test rigorously for the product' tripping precision, sensitivity and reliability of mechanical operation, and the material of key accessories, so as to ensure every product can meet the customer's quality requirement.
In order to control costs and quality effectively, all accessories of the circuit breaker are designed, molded and put into continuous production on our own.
Our commitment to all customers is to offer the products with the best cost-performance ratio.
Working environment
♦ The altitude bellows 2,000m;
♦ Circuit breaker may be used between -25ºC and +70ºC. For temperatures higher than 40ºC(65ºC for circuit breakers used to protect motor feeders), devices must be derated;
♦ It can withstand the impact from humid air, salt spray, oil mist and mold;
♦ It should be installed in places with no danger of explosion, no conductive dust, and no substance enough to corrode metal or damage the insulation;
♦ In places with no rain and snow erosion;
♦ Pollution degree 3;
♦ Installation category III.
Functions and characteristics
Item No. | | NS100/160/250 | NS400/630 | NS800-1600 | |
Number of poles: | | 3P | 4P | 3P | 4P | 3P | 4P | |
Control | Manual | with toggle
with direct or extended rotary handle | |
| |
Connections | Fixed | front connections | |
Plug-in | front conections/rear connections | |
Electrical characteristics as per IEC60947-2 and EN60947-2 | |
Rated current(A) | In | 100A,160A,250A | 400A,630A | 800, 1000,1250,1600 | |
Rated operating voltage(V) | Ue | AC50/60Hz, 690V | |
Rated insulation voltage(V) | Ui | 800V | |
Rated impulse withstand voltage(kV) | Uimp | 8kV | |
Utilization category | | A | |
Operation performance | Mechanical | 8500 | 6000 | 10000 | |
Electrical | 1500 | 1000 | 5000 | |
Indication and control auxiliaries | |
Auxiliary switch | | * | |
MX shunt coil | | * | |
MN under voltage coil | | * | |
Dimensions(mm)
W X H X D | | 105 X 161 X 86 | 140 X 161 X 86 | 140 X 255 X 110 | 185 X 255 X 110 | 210 X 327 X 147 | 280 X 327 X 147 |
ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.
The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.
Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.
SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.
In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
