Professional Factory for Dpnl Dz30 Earth Leakage Circuit Breaker RCBO

Name: Professional Factory for Dpnl Dz30 Earth Leakage Circuit Breaker RCBO
Brand: all-electronics-online.com
SKU: 730755982
Availability: InStock
Rating: 5 (126 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DPNL
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	2
Certification:	CCC

Product Description

Specifications

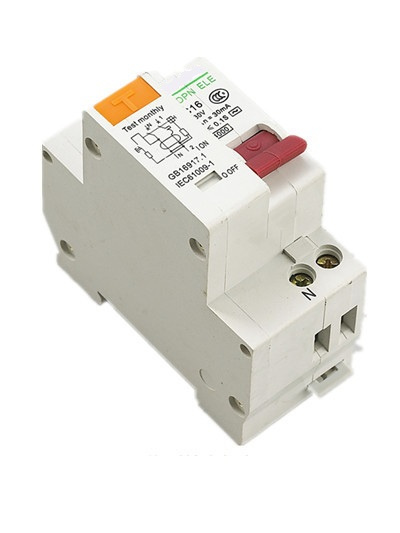

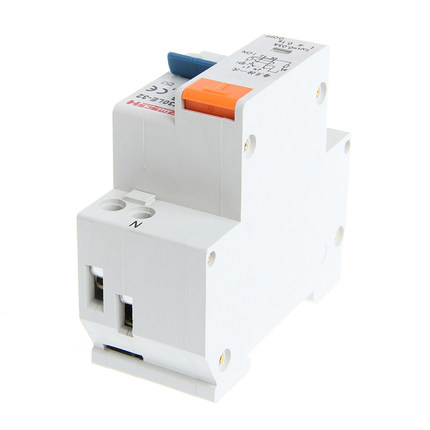

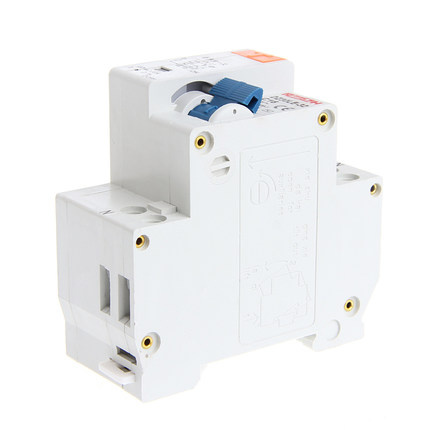

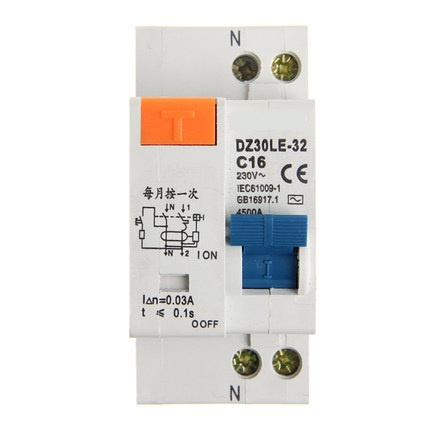

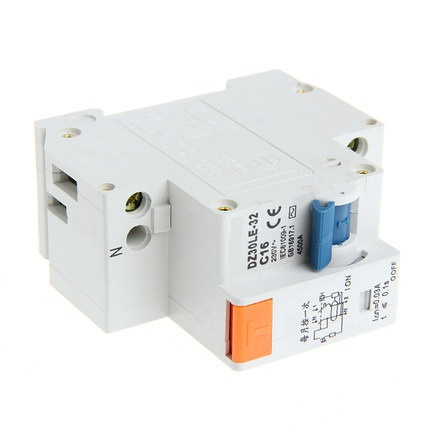

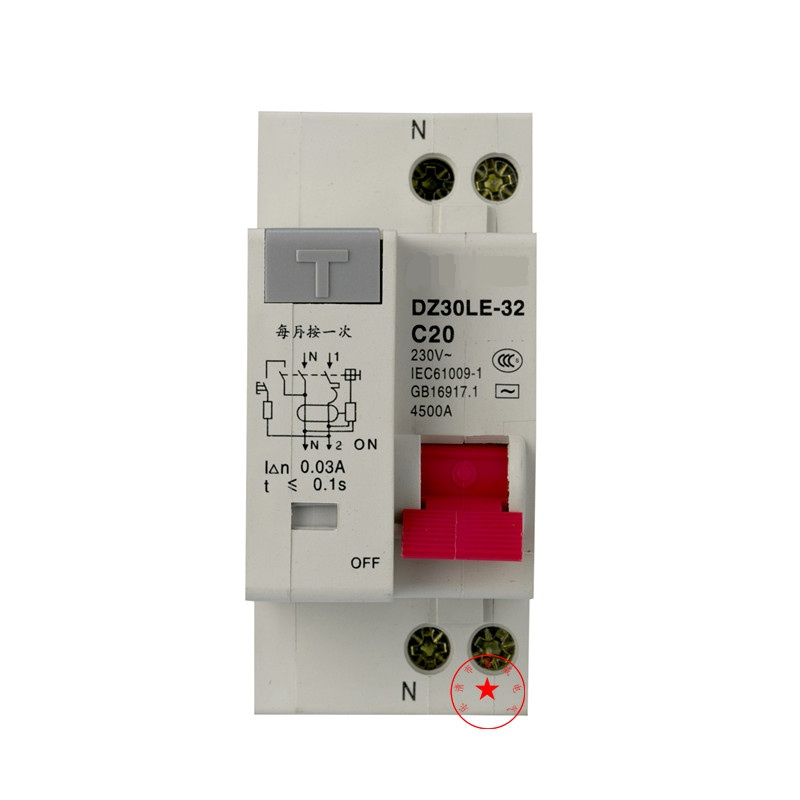

RCBO / RCD / earth leakage circuit breaker /DPNL
1)Manufacturer
2)Good quality and Price
3)OEM available

RCBO / RCD / earth leakage circuit breaker /DPNL

Construction and Feature
1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation.
2)Contact position indication.
3)Provides protection against indirect contact by human body.
4)Provides complementary protection against direct contact by human body.
5)Effectively protects electric equipment against insulating failure.
6)Equipped with switched neutral and phase pole .
7)Provides protection against over-voltage.
8)Provides comprehensive protection to household and commercial distribution systems.
Technical Data
9)Type: Electronic type
10)Residual current characteristics: AC
11)Pole No.: 1P+N
12)Tripping curve: B,C,D
13)Rated short-circuit capacity: 4.5KA
14)Rated Current(A): ,10,16,20,25,32
15)Rated Voltage:240V AC
16)Rated Frequency:50/60Hz
17)Rated residual operating current(mA): 0.03,0.1,0.3
18)Tripping duration:instantaneous under or equal 0.1s
19)Electro-mechanical: pillar terminal with clamp.
20)Terminal Connection Height: H1=16mm ,H2=21mm
21)Over-votage tripping: 280V±5%
22)Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 .
23)Installation: On symmetrical DIN rail 35mm, Panel mounting
Accessories
24) S2 Shunt Tripper
25) U2+O2 Over-voltage and under-votage tripper.

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
