Professional Factory M6 Series MCCB Moulded Case Circuit Breaker

Name: Professional Factory M6 Series MCCB Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 728082672
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	M6
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

technical parameters

Framework Current Inm(A)				250

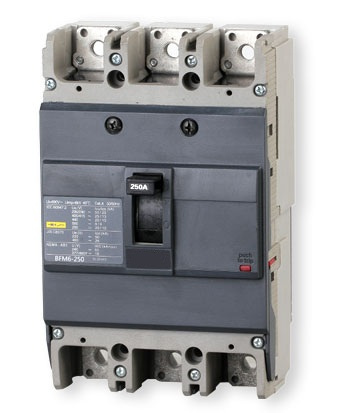

Type				BFM6-250
Rated current In(A)				125 150 175 200 225 250
Poles number				3
Rated insulation voltage Ui(V)				600
Rated short-circuit Breaking capacity(KA)	IEC60947-2 (Icu/Ics)	AC (50/60Hz)	690V	-
			525V	8/4
			500V	8/4
			440V	20/10
			415V	25/13
			400V	25/13
			380V	25/13
			230V	50/25
		DC	250V	20/10
			300V	-
Isolation of adaptability
Utilisation category				A
Reverse connection(No mark terminals)
Rated impulse withstand voltage Uimp(KV)				6
Pollution feature				3

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
