Professional Factory S-630s 400A MCCB AC Moulded Case Circuit Breaker

Name: Professional Factory S-630s 400A MCCB AC Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 831496165
Availability: InStock
Rating: 4.9 (82 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-630S
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

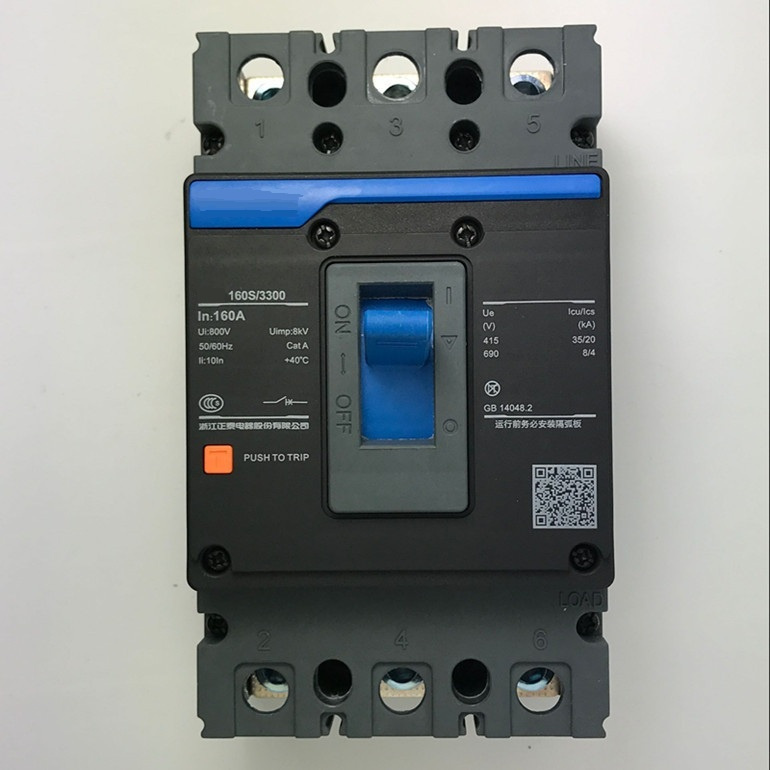

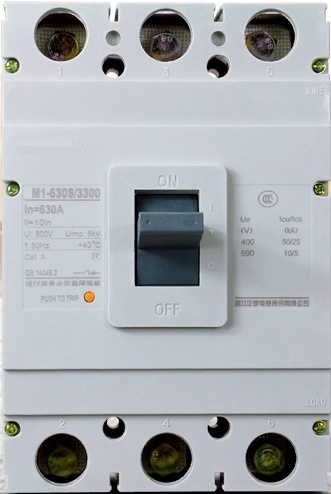

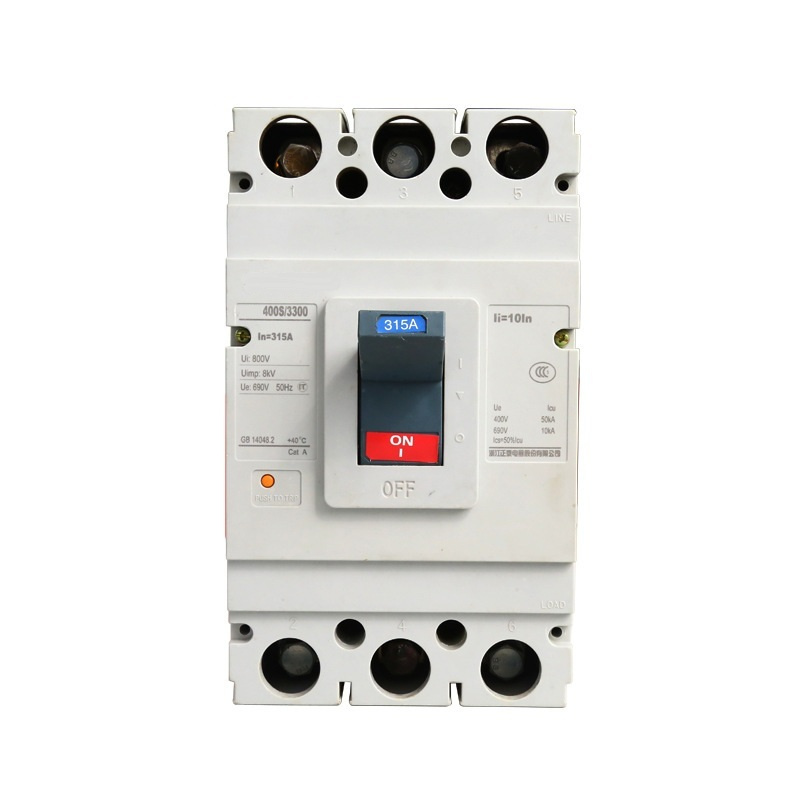

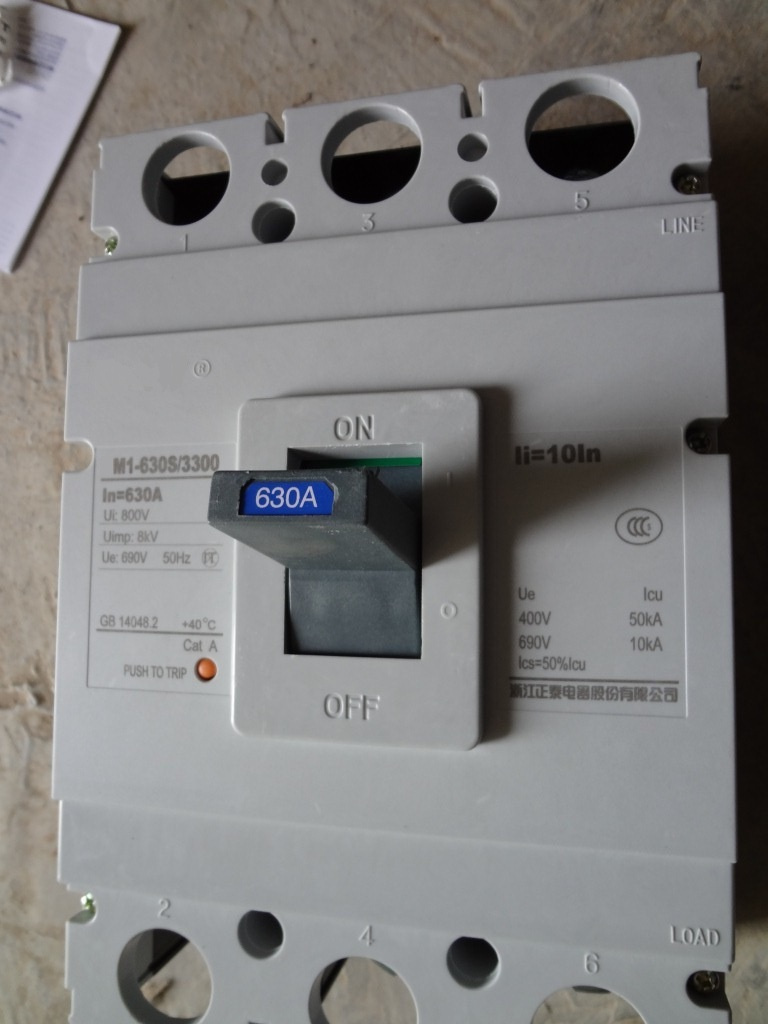

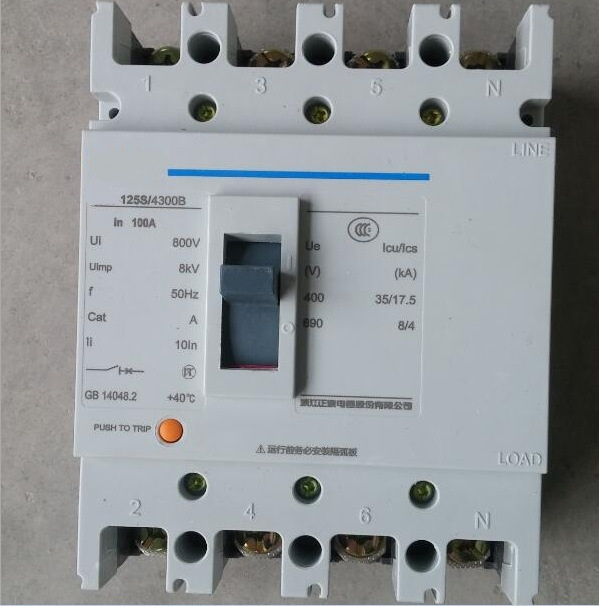

Product Description

S Series Moulded case circuit breaker is mainly suitable for using in the electric Power system AC 50Hz, rated insulated voltage 690V (insulated voltage 400V in the Controlled circuit) and rated operating voltage up to 690V, used for distribution And overload, short circuit and underload protection of circuit and equipment, And also for the infrequent making and breaking circuit under normal conditions.

Rated current of release(A)	Thermodynamic release(ambient temp+40 )		Operation current of magnetic release(A)
Rated current of release(A)	1.05ln(cold state) inoperative time(h)	1.30ln(heat state) inoperative time(h)	Operation current of magnetic release(A)
ln 63	1	1	10-50ln 20%
63 ln 250	2	2	10ln 20%
250 ln 800	2	2	5-10ln 20%

Rated current of release(A)	Thermodynamic release(ambient temp+40 )				Operation current of magnetic release(A)
Rated current of release(A)	1.0ln(cold state) inoperative time(h)	1.20ln(heat state) inoperative time(h)	1.50ln(heat state) inoperative time(h)	1.0ln(heat state) inoperative time(h)	Operation current of magnetic release(A)
12.5 ln 400	2	2	4min	2S Tp 10S	12ln 20%

Specifications:

Type	Rated current (A)	Pole No.	Rated insulating voltage (V)	Rated operating voltage	Arcing over distance (mm)	Ultimate short circuit breaking capacity(kA)			Services short circuit breaking capacity(kA)		Operation performance (Endurance)		Overall dimensions
						AC380V (400)	AC660V (690)	DC250	AC380V (400)	AC660V (690)	Load	Unload	L	W 3P/4P	H
S-125E	12.5 16 20 25 32 40 50 63 80 100 125	2 3 4	660	380 660	>30	15	-	-	7.5	-	3000	7000	120	76/101	70
S-125S						25	-	20	16	-
S-160S	16 20 25 32 40 50 63 80 100 125 160				0	35	8	20	18	-	4000	6000	120	90/120	70
S-160H						50	10	40	25	-
S-250S	100 125 160 180 200 225 250					35	10	40	18	-	2000	6000	170	105/140	103.5
S-250M						50	16	40	30	-
S-250H						65	18	40	48	-
S-400S	200 225 250 315 350 400					35	16	40	18	-	1000	4000	254	140/184	103.5
S-400M						50	20	40	30	-
S-400H						65	25	40	48	-
S-630S	400 500 630					50	20	40	30	-	1000	4000	268	210/280	103.5
S-630M						65	25	40	48	-
S-630H						80	30	40	60	-
S-800S	500 630 700 800					50	20	40	30	-	1000	4000	268	210

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
