| Prod Model: |
Rigao fpc102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| FPC Thickness:0.25 Mm: |
FPC out Layer Cooper Thickness:1oz |
| Material: |
Polyimide |
| Structure: |
Multilayer FPC |
| Application: |
Aviation and Aerospace |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |

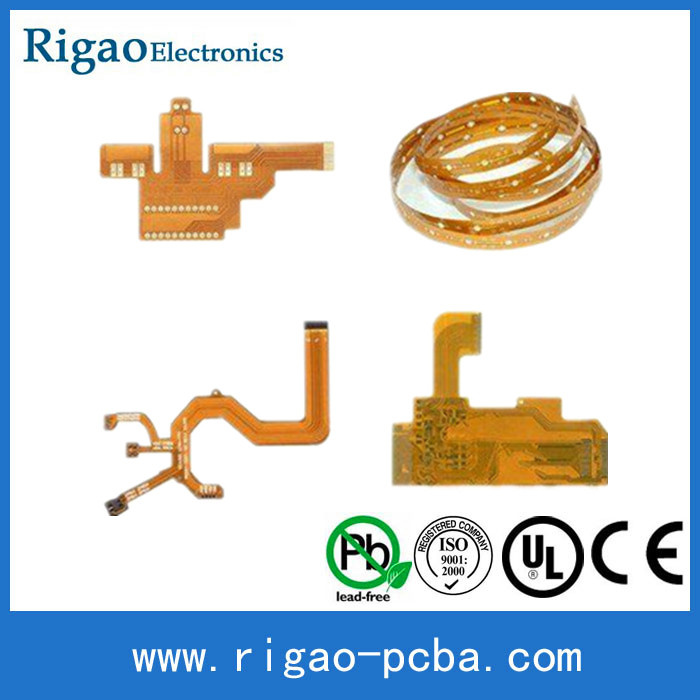

Product Description
Welcome To RigaoKeyboard fpc board from Shenzhen Rigao Electronics
--Good quality material and color for your choose
--Expert PCB & PCBA Manufacturer
--Provide OEM PCB, PCBA, copy service
--Components purchasing
--Fast turn around
Founded in 2008, Shenzhen Rigao Electronics Co., Ltd. is privately held Shenzhen
Corporation, dedicated in providing electronic engineering and manufacturing services.
After several years of development, Rigao has become an international provider of
solutions in three principle areas: Printed circuit board procurement, PCB assembly
procurement and component procurement.
- As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume
projects, medium volume projects and large volume projects. We are able to maintain a
complete service system with comprehensive technical backup as well as cost advantage
and scheduled delivery.
- Contract Manufacturing
- Mixed-technology (High speed SMT & Through hole assembly)
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Metal box,Coil,Cable and Wire Assemblies
- Plastics and Molds
Application
Products are applied to a wide range of High-tech industries such as: LED,
telecommunication, computer application, lighting, game machine, industrial
control, power,automobile and high-end consumer electronics, ect.
By unremitting work and effort to the marketing, products exports to American,
Canada, Europe counties,Africa and other Asia-pacific countries.
Our Services
Advantage
1. PCB from factory directly
2. PCB which have the comprehensive quality control system
3. PCB with good price
4. PCB with quick turn delivery time from 48hours
5. PCB with certification (ISO/UL/RoHS/SGS)
6. PCB with many years experience in exporting service
7. PCB is no MOQ/MOV
8. PCB with high quality. strict test through AOI (Automated Optical Inspection),
QA/QC, Flying Proble Test, E-test fixture
Q&A:
What products Rigao can supply?
Rigao supplies PCB,PCBA,FPC and assembly.
What kind of material Rigao can produce with?
Rigao offers CEM1,CEM3,FR4,Aluminum substrate,etc.
What kind of surface finish Rigao can make?
Rigao can make HASL lead/lead free,gold finishing.
Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement
Requested information for PCB Assembly:
1. Gerber file & BOM list if possible
2. PCBA Samples
3. Testing procedure & Testing fixtures
4. Order Quantity
We have no MOQ,all of your order will be attention.Even one piece,we care!
If you are interested in our products, pls feel free to contact me. Thank you.
|
Types: |
Single-sided, Double-sided, Multi-layers (max 6 layers) and
Rigid-flexible PCB, Aluminium board |
|
Surface Finishing: |
HASL(LF), Gold plating, Electroless nickel immersion gold,
Immersion Tin, OSP(Entek) |
|
Base Material: |
Polyimide(Kapton), Polyester(PET), Aluminium, FR4 |
|
Copper Foil: |
ED/RA |
|
Min. Line Width: |
2 mil |
|
Min. Line Spacing: |
2 mil |
|
Min. Hole Size: |
0.2mm |
|
Max. Board Size: |
800x400mm |
|
Min. Board Thickness: |
0.1mm |
|
Min. Solder Mask Thickness: |
10um |
|
Solder Mask Types: |
Green, yellow, black, white, blue, red and clear |
|
Profiling: |
Punching, Routing, V-cut |
|
Soldering Thermal Resistance: |
300°C/10 seconds |
|
Peeling Strength: |
≥1.4kg/cm |
|
Surface Resistance: |
10 5 mΩ |
|
Insulation Resistance: |
10 5 mΩ |
|
Dielectric Strength: |
9.8x10 5 v/cm |
|
Flammability: |
UL-94V-0 |
|
Performance Test: |
100% electrical and electricity performance test
|
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
