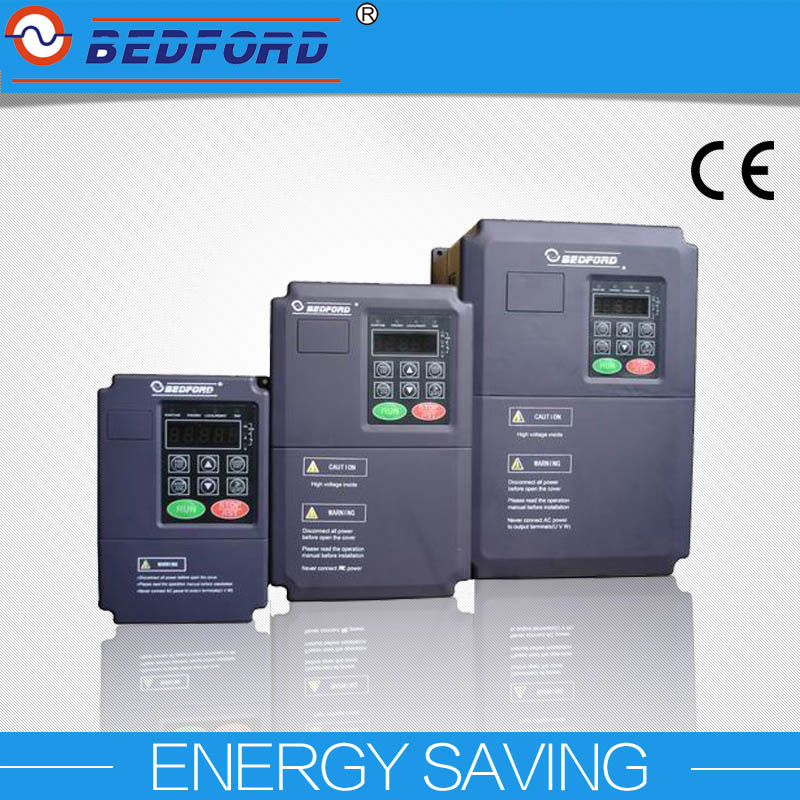

Professional Water Supply of Variable Frequency Drive VFD
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
B603 series variable frequency drive |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE/ISO9100/So14001 |
| Output T Type: |
Single/Triple Phase 220V/380V |
| Power: |
0.75kw~350kw Inverter |
| Frequency: |
50Hz/60Hz |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Bedford |
Product Description
Why Always BEDFORD???1.Professional--Twenty years Professional variable frequency drive Export, eight years manufacturer Experience2.Hi-tech--Advanced R&D Team3.Certifications--Applied with CE, ISO 9001, ISO140014.Good quality--BEDFORD Brand, Patent products.

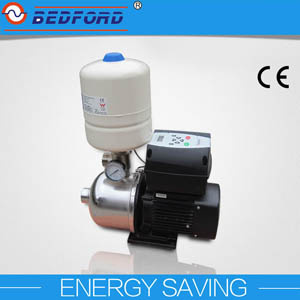

Integrated Intelligent variable frequency constant pressure water supply equipment pump control
To solve the problem of insufficient water presure field.
Applicable to school,hospital,villas,large commuity,low-rise residential and other occasions variable frequency drive years of factory producing varible frequency drive Features:1.automatically control and constant water pressure
2.Setting pressure through keypad directly
3.Built-in terminal for pressure sensor,flow sensor and water level switch
4.Built-in PID control method can realize none load shut down(sleep mode)
5.No need power distribution cabinet and PLC to realize Muti-Pump auto switch-over and linkage operation
6.Water lack protection and water recovery restart
7.Power-on restart
8.Master fault shift automatically
9.Nought flow shut down protection actives when no water consuming, auto start and stop
10.When multi-pump working, regularly switch over maste pump and prevent from pump rusting
11.Real-time fault parameter record is ready for fault analysis
12.Work hour auto accumulative total is easy for enerfy saving analysis and equipment maintenance
13.Complete protection functions and reliability for variable frequency drive, including under voltage, over voltage, over current, over hear and so on
PREFACEWith high quality, multi-function, low noise and strong commonality etc. characteristics, B603 series intelligent constant pressure variable frequency drive is suitable to full-automatic operation;l Special design based on users' needs, suitable for all kinds of applications, easy operation;l According to the water condition to supply constant pressure water without manual operation after parameters were set correctly.l Stop running automatically when no one use of water; Alarm automatically when fault occurred;l Alternate running automatically in the multiple pump system, prolong the service life of pumps;l Adapt to many kinds of input pressure signals;l Can be connected to upper computer through RS485 communication function for centralized monitoring. ENVIRONMENTAL REQUIREMENT1 Environment temperature range: -10 degree~+40 degree. Controller will be derated if ambient temperature exceeds 40degree.2 Prevent rain drops, moist environment, oil fog, salt erosion, corrosive gas, etc.3 Prevent direct sunlight, keep away from radiation source.4 Prevent violent vibration or sudden impact.5 Lower than 1000m installation altitude, variable frequency drive will be deratd when the altitude is higher than 1000m. variable frequency drive Products
Our company produce many kinds of variable frequency drive, water pump inverters. there will be one to fit for you. waiting for serving you! | B603B series variable frequency drive | 2001 | 2002 | | 4001 | 4002 | 4003 |
| Voltage | 1φ200V-240V | 3φ380V-440V |
| Capacity(KW) | 0.75 | 1.5 | | 0.75 | 1.5 | 2.2 |
| Rated output vol.(V) | 3φ 220V-240V | 3φ 380V-440V |
| Rated output current A | 4.5 | 7.0 | | 2.5 | 3.7 | 5 |
| Control mode | Sensorless Vector Control (SVC), V/F Control |
| Output frequency range | Maximum 50Hz |
| Frequency resolution | Analog input volume:0.1Hz |
| Overloading capacity | Rated output current: 150%-1 minute
180%-10 seconds |
| Transmitter signal | 4~20mA |
| No.of V/F Patterns | Vector curve, Random V/F curve |
| Location | Indoor(protected from corrosive gases and dust) |
| Ambient temperature | -10~40°C(If beyond the allowable degree,one degree will Derogate 5% output current) |
| Storage temperature | -40~60°C |
| Environmental temperature | 95%(without dew gather) |
| Vibration | 2M/S2 (0.2G) |
| Protection rate | IP54 |
Guangzhou Bedford Electric Equipment Co., Ltd. is a high-tech enterprise integrating the R&D, production, sale and service together, specializing in Bedford series frequency inverters, AC Drives, VFD, VSD, intelligent constant pressure water pump controllers, complete water supply equipment, special inverter for injection machine and all kinds of motor savers which are widely used on general industry motor, fans, industry washing machine, packing, printing, textile machine, screw air-compressor and other applications. With a production capacity of 2000PCS/month, achieving ISO9001, ISO14001 since 2009 and the latest standards of GB/T12668.2.2002 and EMC GB 12668.3-2004 Certificate issued by the Nation Quality Supervision and Inspection Center. In addition, we have a group of professional software and hardware developers. We can develop special electric products to meet clients' requirements.
We welcome the customers and friends from both home and abroad to establish long-standing, mutual benefit business relationship with us.
