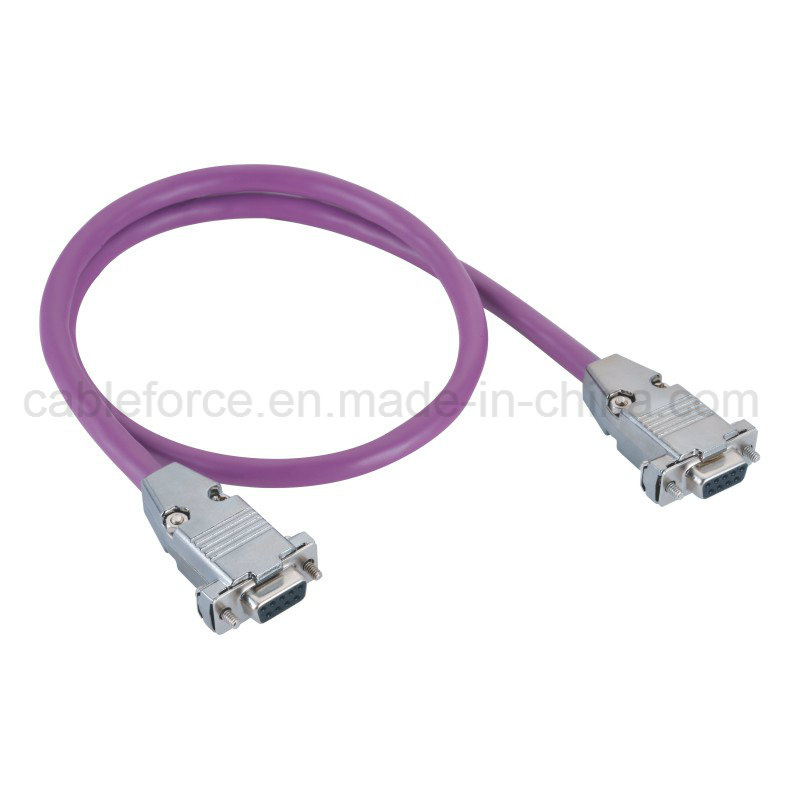

Profibus Dp Cable D-SUB 9pin Female to Female Connector
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
PFB-DB09C4LSGF34 |
| Standard: |
Profibus |
| Connection Type: |
Double Ended Cable |
| Cable Length: |
Base on Customer Request |
Product Description
Profibus DP Cable D-Sub 9Pin Female to Female Connector
1.DescriptionsBased on Guideline of PROFIBUS Cabling and Interconnection technology, CABLEFORCE developed the cable and connectors for application of Profibus-DP (Decentralized Periphery) and Profibus-PA ( Process Automation). The Profibus interconnection products portfolio mainly included RS-485 series connectors:M12 A-Code 5Pin,M12 B-Code 5Pin,Sub-D 9Pin,7/8" Mini-Change connectors and the match able pair twisted cables (18AWG≈0.9mm2, 22AWG≈0.34mm2).
(1) The cable specification is strictly compliant with PROFIBUS standard
(2) Anti-vibration locking screw design
(3) 360°EMI shielding available
(4) Easy installation without special knowledge
Connection type:Double ended cableNumber of Contacts:09 PinTermination:SolderingContacts plating:Gold flash platedInsert/ Housing:PBTWire insulation:PEOvermold/ Shell:Metal shellConnector contacts:Brass with gold platedAmbient temperature:-25°C ~ + 80°CInsulation resistance:≥500 MΩContacts resistance:≤ 10 mΩRated current:5 ARated voltage:60V
3.Applications(1) Factory automation
(2) Building automation
(3) Communications
(4) Industrial interfaces
(1) Non-Waterproof Connector
(2) Current rating: 5A
(3) Transmission properties: 100Mbps of Profibus Cabling Guideline
(4) Temperature range: -25°C to +85°C per IEC 60664-1
(5) Mating cycles:>=50 per IEC 60512-9a

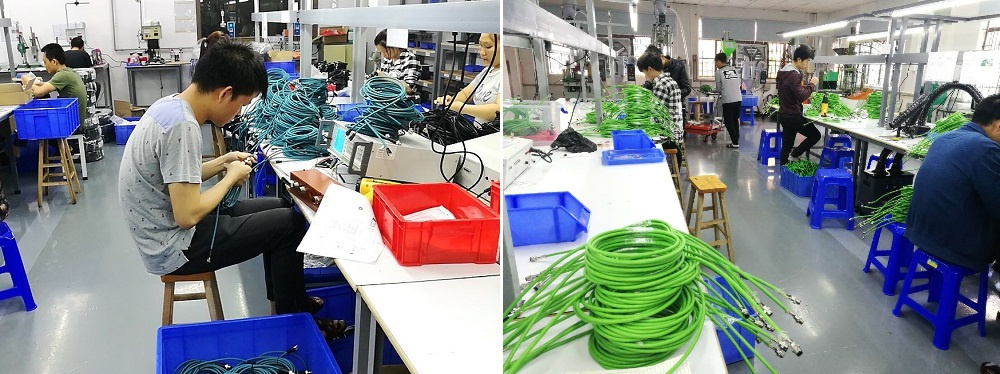

6.Company profileCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Product packing(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks
7.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-10 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
Cableforce listens to every single word from its customers. Welcome to contact us.
Tel:+86 769 8963 3851
Fax:+86 769 8963 3852
Add: Building No.3, XingYe Street, 1st. Industrial Zone, MiaoBianWang Village, Shipai Town,
Dongguan City, Guangdong Province, China (523330)
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
