Profinet Cat 6A Cable M12 8pin X-Code Male to RJ45 Plug Connectors Waterproof Cable Connector

Name: Profinet Cat 6A Cable M12 8pin X-Code Male to RJ45 Plug Connectors Waterproof Cable Connector
Brand: all-electronics-online.com
SKU: 825082205
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PFN-MC08C1LSG3XSB14-RJ45
Key Coding:	X-Coding
Connection Type:	Double Ended Cable
Shielding:	Shielded

Product Description

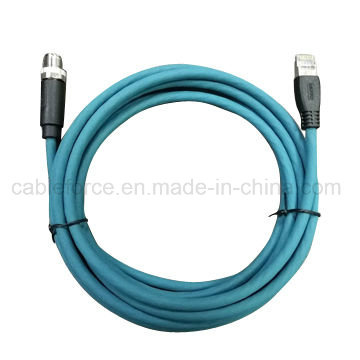

Profinet Cat 6A Cable M12 8pin X-Code Male to RJ45 Plug Connectors Waterproof Cable Connector

1.Descriptions
Cableforce developed the Profinet cable and connectors, M12 X-coding with RJ45 connector to fulfill the Profinet types application requirements and fully compatible with standard RJ45 plug
(1) CAT 6, STP/UTP cable available
(2) Cable length can be customized
(3) EMI Shielding design available
(4) IP67 Protection degree
(5) Anti-vibration design

2.Electrical & Mechanical data
Standard: IEC 61076-2-101
Gender: male-to-male
Coding: X-code
Connector contacts: brass with gold-plated
Coupling nut/screw: brass with nickel-plated screw
Connection type: double ended cable
Rated current: 2A
Rated voltage: 30V
Insulation resistance: ≥100MΩ
Contacts resistance: ≤5mΩ
IP rating: IP67
Wire gauge: 26AWG/0.14mm²
Ambient temperature: -25 to 80°C
Wire termination: soldering

3.Applications
(1) Sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packing, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel and outdoor LED lighting

4.Similar Product

5.Product certificate

6.Our company
Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

7.Packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
