Prototype PCB Board with Impedance Controlled Board in GPRS Module
| Price: |
US $ 0.47/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-162-V1.62 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
0.5 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Blue, Onstatic Supplied |
| Legend Color: |
White |
| Minimum Trace And Space: |
5 Mil/5 Mil |
| Minimum / Maximum Holes: |
0.30/4.5mm |
| Impedance Control: |
Single Trace,50 Ohm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

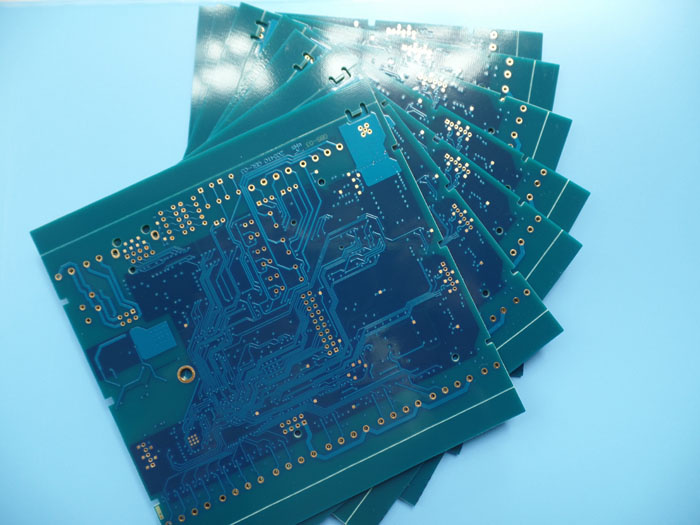

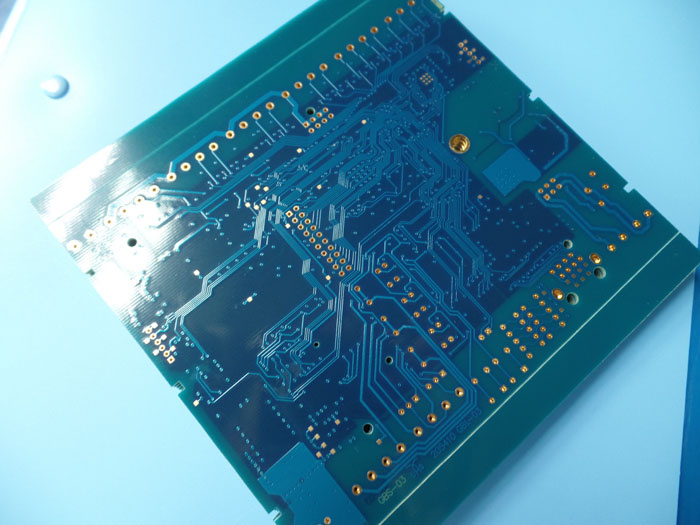

Impedance controlled PCB Prototype UL Certified 4 Layers FR-4 With Blue Mask Applied in
GPRS module
Commodity IntroductionThis is a type of FR-4 PCB for the application of GPRS module. It's a 4 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| PCB SIZE | 90 x 93mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| 7628H x1 (0.195mm) |
| copper ------- 18um(0.5oz) MidLayer 1 |
| FR-4 1.10mm |
| copper ------- 18um(0.5oz) MidLayer 2 |
| 7628H x 1 (0.195mm) |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5mil/5mil |
| Minimum / Maximum Holes: | 0.30/4.5mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 1925 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Single trace impedance control,
layer1 and layer 4, 5mil
50 ohm |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG135, CTI 175V-249V, Shengyi Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (12.32%) 2 micoinch over
100 microinch nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, ONSTATIC supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks, V-cut |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Gprs Module
Power Controller
Inverter Ups
Battery Power Supply
Uninterruptible Power Supplies, Circuit Board Parts |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Frequently Asked Questions
1. Do you sell impedance controlled PCB?
Yes. Impedance controlled PCB's are used more and more popular in our common life. We can
offer differential impedance and single end impedance PCB.
2. What's your minimum track and spacing?
Actually this depends on the copper weight.
For half oz(18um) copper, it's 3mil / 3.5mil for prototypes, 4mil / 4mil for small production and
larger at 5mil / 5mil for mass production.
For 1oz (35um) copper, it's 3mil / 4mil for prototypes, 4mil / 4mil for small production and 5mil
/5mil for mass production.
For 2oz (70um) copper, it's 6mil / 7mil for prototypes, 6mil / 8mil for small production and 7mil
/9mil for mass production.
For 3oz (105um) copper, it's 8mil / 9mil for prototypes, 8mil / 10mil for small production and 9mil
/11mil for mass production.
For 4oz (140um) copper, it's 12mil / 11mil for prototypes, 12mil / 12mil for small production and
13mil /13mil for mass production.
