Yueqing Winston Electric Co., Ltd. >> PTC Compact High-Performance Semiconductor Fan Heater (CS 130 1200W)

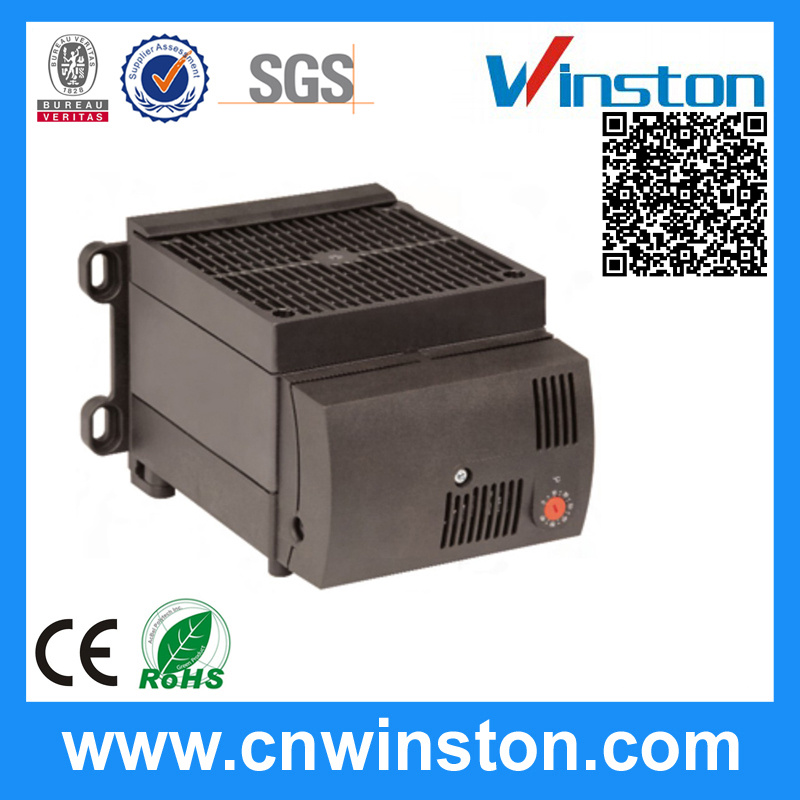

PTC Compact High-Performance Semiconductor Fan Heater (CS 130 1200W)

PTC Compact High-Performance Semiconductor Fan Heater (CS 130 1200W)
Price: US $ 116.88-120.31/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: CS 130 1200W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Dimensions: 182 X 160 X 120mm
Weight: Approx. 1.3kg
Operating/Storage Temperature: -45 to +70°c (-49 to +158°f
Heating Element: PTC Resistor-Temperature Limiting
Certification: CE
Control Type: Mechanical
Type: Temperature Controller
Material: Plastic
Brand: Winston

Product Description

Compact high-performance Fan Heater CS 130 CS130(Semiconductor)
Compact design
High heating performance
Double insulated
Integrated thermostat (optional)
Optional clip or screw fixing
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CS 030 is recommended.
Technical Data
Heating elementPTC resistor - temperature limiting
Temperature safety cut-outto protect against overheating in case of fan failure,

automatic reset
Axial fan, ball bearingairflow 160m³/h, free flow

service life 50,000h at 25°C (77°F)
Connection2-pole max. 2.5mm², clamping screw with strain relief,

torque 0.8Nm max.
Casingplastic according to UL94 V-0, black
Mountingclip for 35mm DIN rail, EN 60715 or screw fixing (M6)
Fitting positionvertical airflow (air outlet up) – other fitting positions possible
Dimensions182 x 160 x 120mm
Weightapprox. 1.3kg
Operating/Storage temperature-45 to +70°C (-49 to +158°F
Operating/Storage humiditymax. 90% RH (non-condensing)
Protection type/Protection classIP20 / II (double insulated)
Art. No.ModelOperating voltageHeating capacity¹Inrush current max.Pre-fuse T (time-delay)Setting rangeApprovals
13060.0-00Fan Heater with thermostat230VAC, 50/60Hz1,200W13A8A0 to +60°C
13060.0-01Fan Heater without thermostat230VAC, 50/60Hz1,200W13A8A-
13060.9-00Fan Heater with thermostat120VAC, 50/60Hz1,200W16A10A+32 to +140°F
13060.9-01Fan Heater without thermostat120VAC, 50/60Hz1,200W16A10A-
at 20°C (68°F) ambient temperature; ²according to UL 499, intended for the use within an enclosure in accordance with UL 508A

PRICE:

CS13051.0-00     950W     0-60ºC116.88US
CS13051.0-02     950W     65%RH
CS13051.9-00     950W  120V  32-140°F116.88US
CS13060.0-00     1200W     0-60ºC120.31US
CS13060.0-01     1200W120.31US
CS13060.9-00     1200W  120V  32-140°F120.31US
CS13060.9-01     1200W
