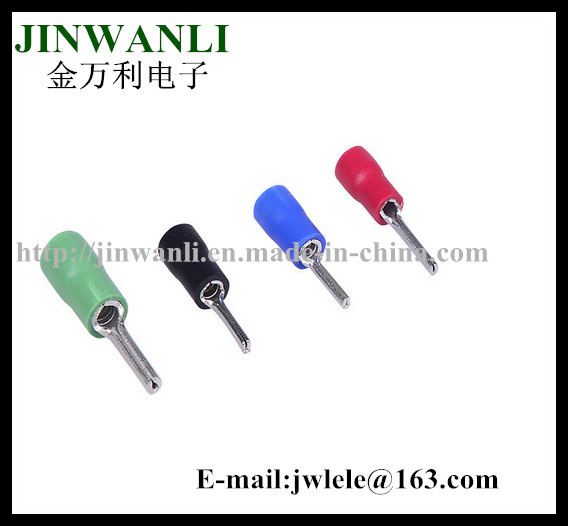

Ptv 1.25-9 Series Insulated Copper Pin Terminal

Name: Ptv 1.25-9 Series Insulated Copper Pin Terminal
Brand: all-electronics-online.com
SKU: 683058945
Availability: InStock
Rating: 5 (140 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Application:	Transmission of Electrical Signals
Type:	Ptv
Shape:	Ptv

Product Description

PTV terminal connect with electrical wire and strengthen its reliability and safety, Excellent quality and reasonable price.

Detailed Description:

PTV pin-shaped pre-insulating terminal
Model: PTV series
Material: Brass, copper, PVC insulation bush Se-mi-gloss tin coated
Rated Voltage: AC660V DC 440V Rated Frequency: 50Hz(60Hz)
Main Application Range

lectron or power equipment
Clamp Conductor Range
0.5-6 mm2A. W. G22-10
Certificate: ISO9001 SGS CE
Working Temperature: -55-+105

Dimensional drawing: Examination Attempts the film jacket
Cable size2.54mm2A. W. G. 1412) Max currentImax=36A Material copper Thickness1.0mm

Business Range:
We are a professional supplier specialized in production of cold-press terminal and wiring device, including RNB ring naked terminal (TO shape), furcate naked terminal (TU shape), RV ring pre-insulating terminal, SV furcated pre-insulating connector, PTV pin-shaped pre-insulating terminal etc.

ITEM NO	Dimension(mm)															Color
	L				F				H				D
PTV 1.25-9	1.9				1.9				10.0				4.3			Red
PTV 1.25-10	20.0				1.9
PTV 1.25-12	22.0				1.9
PTV 1.25-135	23.0				1.9
PTV 1.25-18	28.0				1.9
ITEM NO	Dimension(mm)													Color
	L		F			H				D
PTV 2-9	19.0		1.9			10.0				4.9				Blue
PTV 2-10	20.0
PTV 2-12	22.0
PTV 2-13	23.0
PTV 2-18	28.0
ITEM NO	Dimension(mm)														Color
	L			F			H				D
PTV 3.5-10	20.0			2.8			13.0				6.2				BLACK
PTV 3.5-13	25.5			2.8
ITEM NO	Dimension(mm)											Color
	L	F	H					D
			13.0					6.7				Yellow
PTV 5.5-13	25.5	2.8

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
