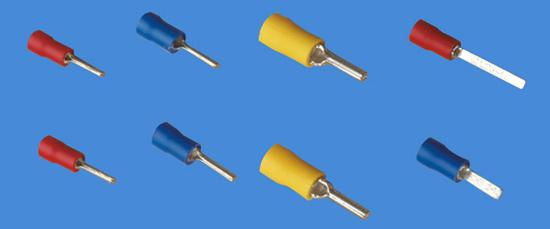

Ptv Pin Shaped Insulated Terminals Connector

Name: Ptv Pin Shaped Insulated Terminals Connector
Brand: all-electronics-online.com
SKU: 734069835
Availability: InStock
Rating: 4.7 (71 reviews)

Price:	US $ 0.09/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PTV 2-9
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe
Color:	Red, Blue, Yellow, Black, Green
Shape:	Pin-Shaped
Size:	Various Size Available
Application:	Conduct Electricity
Type:	Socket Terminals
Material:	Copper
Brand:	Jma

Product Description

Specifications
1. Tinned surface
2. Apply Cable Size: 0.5 -6mm2
3. MOQ: 1000pcs
4. FOB Price: USD0.011-0.061
5. Capacity: 5000K pcs/month
Specification

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, railway, shipbuilding, spaceflight & aviation, light industry, household electrical, computers, auto-equipment and etc.
2) Processing: Cold press
3) Material: T2 copper with tinned surface, credible conductivity; PVC insulation cover, no break or rebound.
4) Certificate: ISO9001-2008
5) Manufacturer: Price advantage, quick delivery

22~16 AWG / 0.5~1.5 mm2: 19 A material thickness: 0.7mm
16~14 AWG / 1.5~2.5 mm2: 27 A material thickness: 0.8mm
14~12AWG / 2.5~4 mm2: 34 A material thickness: 1.0mm
12~10 AWG/ 4~6 mm2: 48A material thickness: 1.0 mm

Cable size:0.5-1.5mm 2 ( A.W.G.22-16) Imax=19A Material: copper Thickness:0.75mm

Item No

Dimension(mm)

Color

Dφ

PTV 1.25-9

1.9

19.0

10.0

4.3

red

PTV 1.25-10

1.9

20.0

PTV 1.25-12

1.9

22.0

PTV 1.25-13

1.9

23.0

PTV 1.25-18

1.9

28.0

Cable size:1.5-2.5mm 2 ( A.W.G.16-14) Imax=27A Material: copper Thickness:0.8mm

Item No

Dimension(mm)

Color

Dφ

PTV 2-9

1.9

19.0

10.0

4.9

blue

PTV 2-10

1.9

20.0

PTV 2-12

1.9

22.0

PTV 2-13

1.9

23.0

PTV 2-18

1.9

28.0

Cable size:2.5-4mm 2 A.W.G.14-12) Imax=36A Material: copper Thickness:1.0mm

Item No

Dimension(mm)

Color

Dφ

PTV 3.5-10

2.8

20.0

13.0

6.2

black

PTV 3.5-13

2.8

25.5

Cable size:4-6mm 2 ( A.W.G.12-10) Imax=48A Material:copper Thickness1.0mm

Item No

Dimension(mm)

Color

Dφ

PTV 5.5-13

2.8

25.5

13.0

6.7

Yellow
