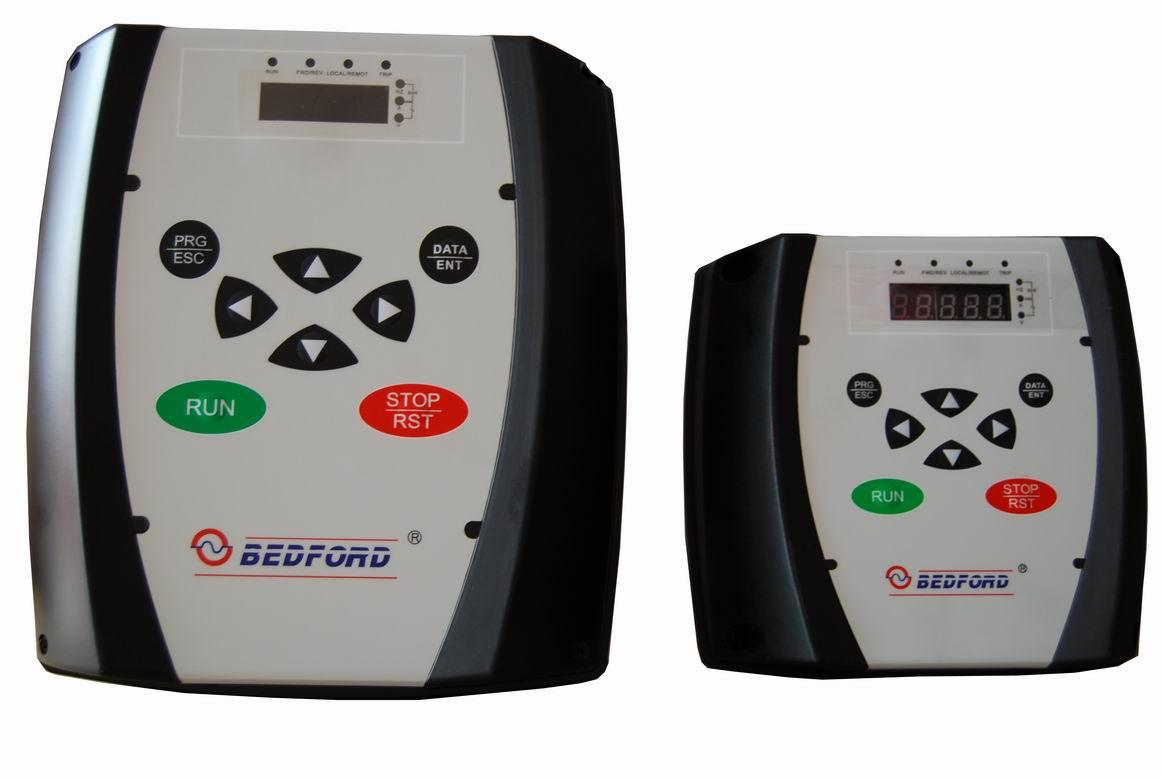

Pump Variable Frequency Drive

Prod Model:	B603B-2001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Display:	LED
IP Level:	IP54
Installation Method:	Mounted on The Machine
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Application:	High-performance Transducer
Main Circuit Type:	Voltage
Switch Mode:	PWM Control
Brand:	IGBT-Infineon/FUJI
Function:	Constant Pressure Water Supply
Nature Of DC Power:	Variable Frequency Drive

Product Description

B603B-2001 1HP/0.75KW, single phase 220V input,3 phase 220V output,50Hz

Materials:
IGBT-Infineon/FUJI
Heat Sink-Magnalium Alloy
Waterproof casing-IP54

Ceritficate:CE

All Series Power Range:

Single phase 220V input,Three phase 220V output: 1HP-3HP(0.75KW-2.2KW)
Three phase 220V input, Three phase 220V output:5HP-7HP(4.0KW-5.5KW)
Three phase 380V input,Three phase 380V output: 1HP-10HP(0.75KW-7.5kw)

Size and Weight:
1HP-3HP :192*200*151 mm     3.5KGS
5HP-10HP:282*255*160 mm    6.0KGS

Technology Features
Input & Output
Input Voltage Range: 380/220V± 15%
Input Frequency Range: 47~63Hz
Output Voltage Range: 0~rated input voltage
Output Frequency Range: 500Hz

I/O Features
Digital Switch Input: 3 input
Programmable Analog Input: AI1: 0~10V or 0~20mA input;
AI2: 0~10V or 0~20mA input
Relay Output: 2 Output

Function Characteristics
Multi-Pump Control: Can realize 1 master and Max. 5 auxiliaries combine work

Sleep Function: Sleep down when have no water consumption, to earn a better energy saving

Freeze-Proofing Function: Suitable to low temperature area, prevent pump from freezing

Anti-clogging Function: Take precaution against pipe clogging and clean the pipe dirt

Power On Restart: Running automatically when power on

Master Fault Shift Automatically: Keep on working when the master break down

Alternate Running: Balance every pump's running time, prolong service life of the whole unit machine

Day-Part Function: 3 independent day-part control, up to 7 day-part achieved when define separated

Two Running Mode: Synchronous control mode, master-slave control mode

Terminal Control Mode: Terminal Run/Stop, Manual/Auto Control, Electronic Contact Gauge Control

Various of water supply Fault Alarm Function: High-Pressure, Low-Pressure, Low-Level, Transducer Error etc.

As many as 22 kinds of fault protection function: Over-Current, Over-Voltage, Low-Voltage, Phase-Failure, Over-Load etc.
