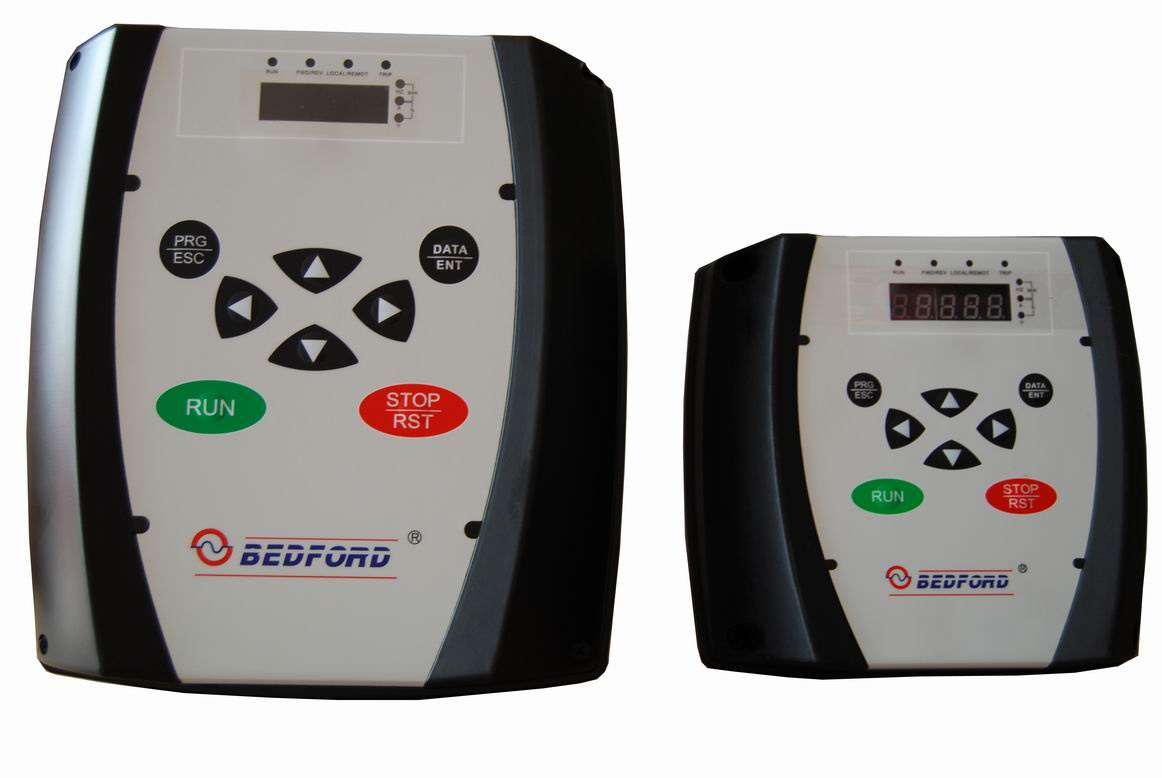

Pump VFD

Prod Model:	B603B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
IP Level:	IP54
Installation Method:	Mounted on The Machine
Protection:	Oc,OA,UV,Ov,Lp,HP Protection
Application:	High-performance Transducer
Output Type:	4~20mA,0~10V
Principle Of Work:	Constant Pressure Control
Main Circuit Type:	Current or Voltage

Product Description

PUMP VFD



This Series Power Range:

Single phase 220-240V 1HP-2HP(0.75KW-1.5KW)
Three phase 380-440V 1HP-3HP(0.75KW-2.2kw)

Technology Features
Input & Output
Input Voltage Range: 380/220V± 15%
Input Frequency Range: 47~63Hz
Output Voltage Range: 0~rated input voltage
Output Frequency Range: 500Hz

I/O Features
Digital Switch Input: 3 input
Programmable Analog Input: AI1: 0~10V or 0~20mA input;
AI2: 0~10V or 0~20mA input
Relay Output: 2 Output

Function Characteristics
Multi-Pump Control: Can realize 1 master and Max. 5 auxiliaries combine work

Sleep Function: Sleep down when have no water consumption, to earn a better energy saving

Freeze-Proofing Function: Suitable to low temperature area, prevent pump from freezing

Anti-clogging Function: Take precaution against pipe clogging and clean the pipe dirt

Power On Restart: Running automatically when power on

Master Fault Shift Automatically: Keep on working when the master break down

Alternate Running: Balance every pump's running time, prolong service life of the whole unit machine

Day-Part Function: 3 independent day-part control, up to 7 day-part achieved when define separated

Two Running Mode: Synchronous control mode, master-slave control mode

Terminal Control Mode: Terminal Run/Stop, Manual/Auto Control, Electronic Contact Gauge Control

Various of water supply Fault Alarm Function: High-Pressure, Low-Pressure, Low-Level, Transducer Error etc.

As many as 22 kinds of fault protection function: Over-Current, Over-Voltage, Low-Voltage, Phase-Failure, Over-Load etc.
