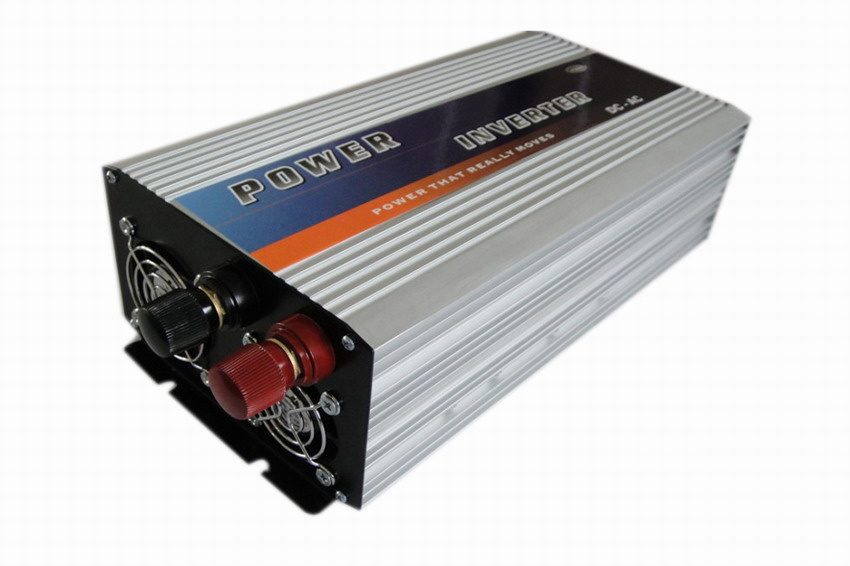

Pure Sine Wave 4000W off-Grid Inverter in 12V Input

Name: Pure Sine Wave 4000W off-Grid Inverter in 12V Input
Brand: all-electronics-online.com
SKU: 699892272
Availability: InStock
Rating: 4.4 (24 reviews)

Price:	US $ 353-360/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FOI-4000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Pure Sine Wave
Size:	392*360mm
OEM:	Available
Efficiency:	90%
Voltage:	12/24V
Frequency:	50Hz
Phase:	Three
Type:	DC/AC Inverters
Power Source:	Solar Power
Output Power:	4000W
Brand:	Flagsun

Product Description

Rate Power	4000W
Peak power	8000W
AC Output Voltage	110-120VAC / 220-240VAC
DC Input Voltage	12V / 24V / 48V
Wave Form	Pure Sine Wave (THD<3%)
Frequency	50HZ/60HZ ±1%
Efficiency	≥90%
Working Temperature	-10ºC~45ºC
N.W/G.W	10.88KG / 12.85KG
Dimensions/Packing Size	392360172 / 412362260mm

Main Features and Protection

1, Under-Voltage Protection(Batteries Using Life Protection): When the voltage of the batteries drops to the setting under-voltage point, the buzzer will be on, and the power will be off automatically in one minute, then the red light flashes

2, When the input voltage is higher than the overvoltage set point of the machine, the machine immediately shut down, and then red light flashes.

3, Short-Circuit Protection: When the output short-circuit phenomenon exists, the machine shut down immediately, then the red lights starts flashing.(Note: Output short-circuit will cause great harm and affect the life seriously, or even damage the machine.)

4, Over-load Protection: This machine overload protection with delay to meet some of the impact of higher current loads(such as motors, incandescent) When the load greater than output power, stopped by the degree of time delay 1-10 seconds, then the red light flashes.

5, Over-heated Protection: When the temperature reaches 40 degree the fan will be turned on automatically; when the temperature reaches (exceeds) 60 degree, the buzzer will be on and the power will be off in one minute, when the temperature exceeds 75 degree the power will be turned off at once, red light flashes.

Flagsun has been global supplier of renewable energy solutions since 2008, mainly offer Solar system, Solar panel, PV inverter, controller, Solar light & application products, cable etc...With advanced production equipment and strict quality control, we commit to offer reliable products at competitive cost, meanwhile we keep on designing and developing solar power solution ahead of customer' S needs. Through continuous innovation, we try to reduce manufacturing costs of solar electricity and improve solar energy technology to provide more green power for the world. Currently all of our products have been certified by CE, TUV, MCS, CEC and ISO9001, ensuring customer to use our products without any worry.

Flagsun is seeking every chance to have a long term partnership and cooperation as well as collaborative development with our suppliers and customers. Driven by our competence in solar energy, the delivery from anywhere to any place in the world, we are willing to take responsibility for the green planet, promote harmonious development for humanity, society and nature.

Flagsun sincerely invite you to create new energy for next generation, build a green home for our mankind forever.
