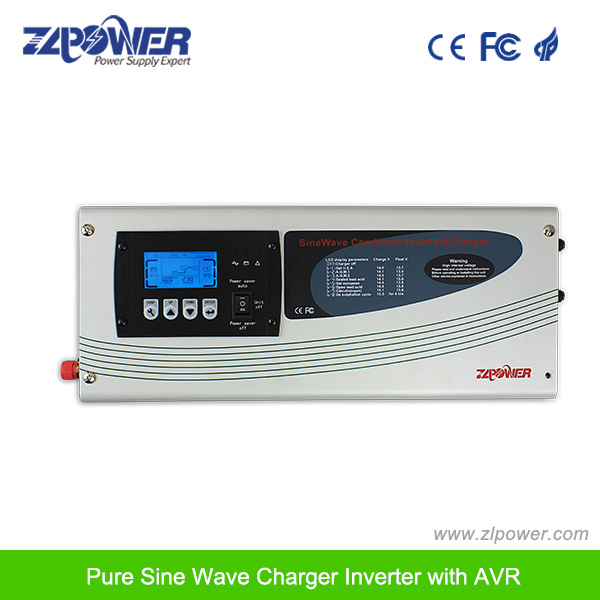

Pure Sine Wave DC to AC AVR Inverter 4000W 5000W 6000W
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
GW 4000-6000W |
| Product Status: |
in Stock |
| Warranty: |
24months |
| Display: |
LCD |
Product Description
GW Inverter Series4-6KWKey Features:♦ AC mode AVR function.
♦ Output voltage.frequency and charging current can be adjusted via LCD display.
♦ Pure sine wave output, available for sensitive load.
♦ 4-step progressive charging, 7 battery type selector.
♦ Accept generator's energy output.
♦ High power factor.
♦ Automatically transfer between battery and line modes.
♦ RS232 communication port.
♦ Protection of over load, over temperature, over charging, low battery.Speficaition:| Model Parameters | GW 4000W | GW 5000W | GW 6000W |
AC
Input | Nominal Power | 4000W | 5000W | 6000W |
| Input Voltage Waveform | sinusoidal(utility or generator) |
| Nominal input Voltage | 120/230VAC |
| Input Voltage Range | 70Vac-150Vac for 120V;165Vac-270Vac for 230V |
| Low Line Disconnect | 70Vac±4% for 120V;165Vac±4% for 230V |
| Low Line Re-connect | 80Vac±4% for 120V;175Vac±4% for 230V |
| High Line Disconnect | 136Vac±4% for 120V 263ac±4% for 230V |
| High Line Re-connect | 131Vac±4% for 120V;253Vac±4% for 230V |
| AC Low AVR Disconnect | 93Vac±4% for 120V;184Vac±4% for 230V |
| Max AC input Voltage | 120V for Max150V, 230V for Max270V |
| Frequency | 50Hz:41-54Hz, 60Hz:51-64Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | LV:120Vac ±10%rms, HV:230Vac ±10%rms |
Nominal Output
Frequency (Hz) | 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
| Transfer Time | 15ms(max) |
AC
Charger | Nominal Charger
Current | 20A/35A/50A/70A/90A(Adjustable 5 stages charging current) |
| Over charge Protection | Bat.V≥15.5VDC for 12V battery,
Bat.V≥31.0VDC for 24V battery,
Bat.V≥62.0VDC for 48V battery,
beeps 0.5s every 1s & fault after 60s |
| Three-stage charging | Three-stage:Boost cc(constant curren stage),
Boost CV(constant voltage stage),
float(conatant voltage stage) |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >96% |
Battery
Voltage | Nominal DC input Voltage | 24/48VDC |
| Low Battery Alarm | 21VDC±0.6VDC for 24VDC |
| 42VDC±1.2VDC for 48VDC |
| Low DC input shut-down | 20VDC±0.6VDC for 24VDC |
| 40VDC±1.2VDC for 48VDC |
High DC input
Alarm & Fault | 32VDC±0.6VDC for 24VDC |
| 64VDC±1.2VDC for 48VDC |
| High DC input Recovery | 31VDC±0.6VDC for 24VDC |
| 62VDC±1.2VDC for 48VDC |
System
Parameter | Over-Load Protection | 110%the output,load>150%,beeps 0.5s every 1s,and Fault after 20s |
Output Short Circuit
Protection | Current limit (Fault after 10s) |
| Surge Rating(10s) | 1:3(VA) |
| Power Saver | Load≤25W(Enabled on "P/S auto" Setting of Remote control) |
| Protections | Low battery,over charging,over load,over temp |
| Indicators | LED+LCD Display |
General
Specifications
| Operating Temperature
Range | 0ºC~40ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 653*242*185mm |
| Net Weight(kg) | 34.5 | 37.6 | 38.8 |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
