Pure Sine Wave DC to AC Power Inverter for Home

Pure Sine Wave DC to AC Power Inverter for Home
Price: US $ 1-300/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Dark Star Series 600Va-1200Va
Color: Black
Power Factor: 0.8
Transfer Time: Max.10s.
Output Current: Load

Product Description

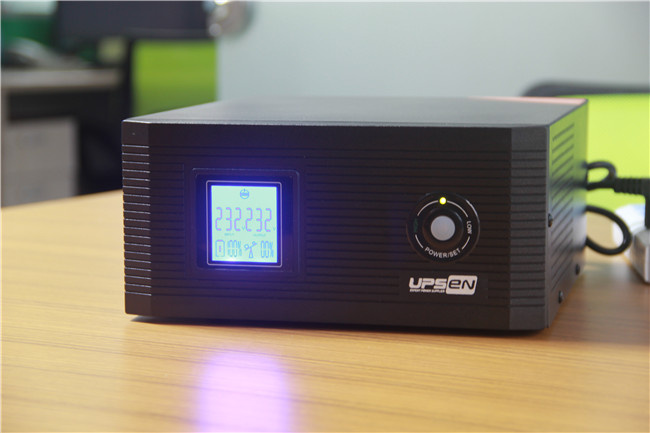

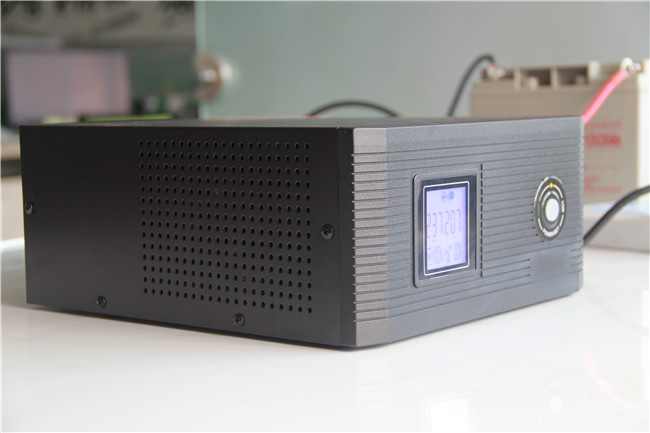

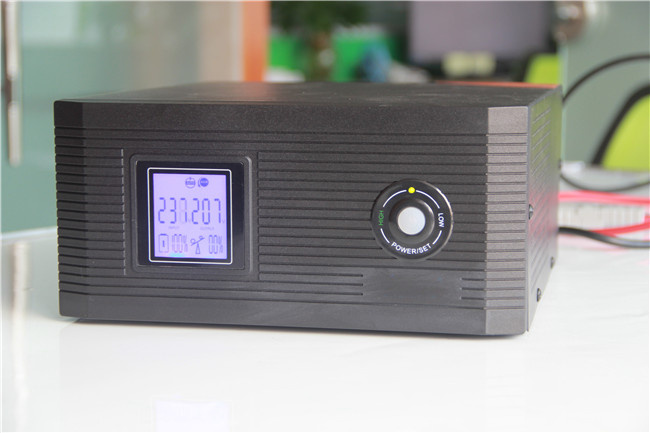

Pure sine wave dc to ac power inverter for home
Pure Sine Wave Inverter Dark Star Series 600Va-1200Va (1ph in/1ph out)  DS 600VA-1200VA

Key Features:
1:CPU controlled
2:LCD display with plenty content
3:Fast transfer time,high efficiency
4:Low battery,overload short circuit,over temperature protections
5:Smart battery charger design for optimized battery performance
6:Durable construction for long life under extreme environmental conditions
7:Stable output voltage(pure sine wave output),can be applied to all electrical equipment
8:A wide range of input voltage,accurate output and full automatic voltage stabilization
9:Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.


Applications
vacuum cleaners, fans, Electronic energy-saving fluorescent, incandescent, small television sets, refrigerator,shavers,sewing  machines,air conditions,coffee makers,blenders,ice markers,toasters etc.

Technical Specification
ModelDS600DS800DS1000DS1200DS600 PlusDS800 PlusDS1000 PlusDS1200A Plus
Capacity480W640W800W1000W480W640W800W1000W
Power factor0.8
AVRNo3 steps of AVR, CPU controlled
INPUT
Input voltage rangeInverter mode: 80~290Vac±5Vac (Inverter mode)145~270Vac±5Vac
UPS mode: 175~270Vac±5Vac (UPS mode)
OUTPUT
Output voltage range80~290Vac±5Vac, Same as AC (AC mode)
220Vac±5% (DC mode)
203~238±5Vac
175~270Vac±5Vac, Same as AC(AC mode)
220Vac±5% (DC mode)
Output frequency50Hz ±5Hz (DC mode)
Wave formSine wave (DC Mode)
Transfer timeMax. 10s.
BATTERY
QTY & capacity of batteryDC 12VDC12V /24VDC 12VDC12V /24V
Charging current15A15A20A20A15A15A20A20A
PROTECTION & FUNCTION
PROTECTION1. Battery low voltage protection
2. Overload protection
3. Short circuit protection
FUNCTION1. Auto re-starts when AC recovers
2. Silence setup
3. Automatic charging (offline charging)
4.Combined UPS mode and inverter mode.
MANAGEMENT
USBOptional (Note: Funciton of combined UPS and inverter mode is disabled if USB is required.)Optional ( (Note: Funciton of optional charging current is disabled if USB is required.)
PHYSICAL
Unit dimension (mm)290*255*120
Color box dimension (mm)340*130*205
Master box dimension (mm)355*325*435355*325*225355*325*435355*325*225
Pcs in one master carton21112111
Gross weight (1pc, kg)7.611.412.013.67.611.412.013.6
Net weight (1pc, kg)710.811.413710.811.413




Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
