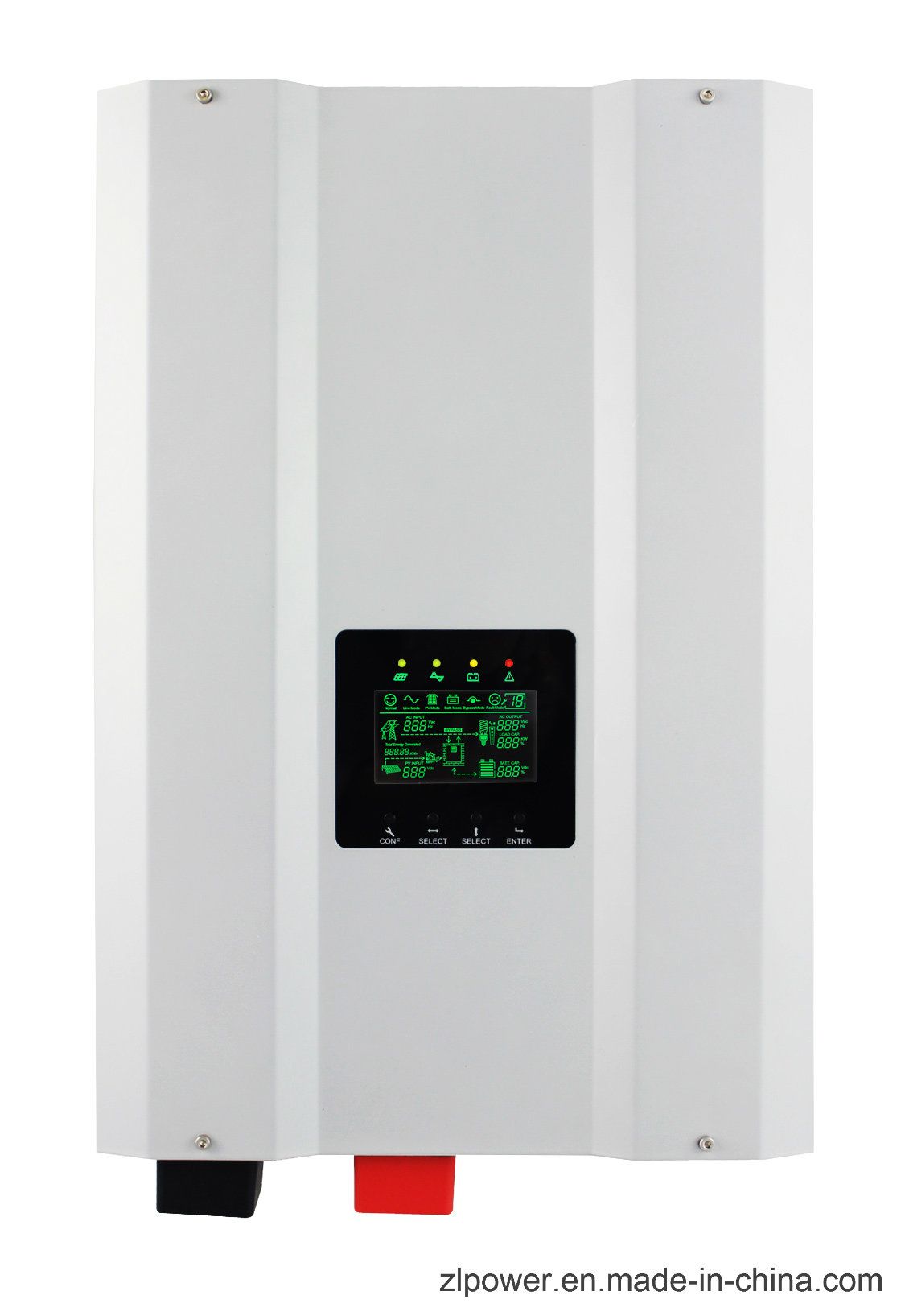

Pure Sine Wave Hybird Charger Inverter
| Price: |
US $ 275-405/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
GS Series 1-3KW |
| Dimention: |
480*336*190mm |
| Weight: |
20-50kg |
| Display: |
LED,LCD for PV,Inverter and Battery |
| AC Charger: |
5 Stages 20-90AMP |
| Solar Charger: |
MPPT Solar Charger Controller 40/60AMP |
| Set: |
DC or AC Priority |
| Dry Contact: |
Generator Restart Signal |
| Peak Power: |
3 Tines as Rated Power |
| Protection: |
Overload,Output Short-Circuit Protection |
| Efficiency: |
98% |
Product Description
Production DescriptionWith reliable intelligent design,GS series solar inverter can be avaiilable to complicated appliance. Not only used for common appliances such as TV,computwe,lights,fans...but also suitable for inductive loading such as refrigerators,airconditioners,motors,pumps,compressors and laser printers.
♦ GS Series AC/Solar charging Off grid Hybrid Inverter.
♦ LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design.
♦ Built-in 40A/60A optional MPPT solar charger controller.
♦ LCD shows the solar capacity.
♦ 5 stages adjustable AC charging current. AC charging also can be closed.
♦ AC/DC priority modes can be set.
♦ Generator restart signal. (Dry contact)
♦ 3 times peak power. Strong loading capacity.
♦ Overload, output short-circuit protection.
| Specifications | | | | |
| Model Parameters | GS1000W | GS2000W | GS2500W | GS3000W |
AC
Input | Nominal Power | 1000W | 2000W | 2500W | 3000W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 120/230VAC |
| Low Line Disconnect | 85Vac±4%(Normal) or 80Vac±4% (Wide) for 120V 184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V |
| High Line Disconnect | 136Vac±4%(Normal) or 140Vac±4%(Wide) for 120V 263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V |
| Max AC input Voltage | 120V for Max150V, 230V for Max270V |
| Frequency | 50Hz:41-54Hz, 60Hz:51-64Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | LV:120Vac ±10%rms, HV:230Vac ±10%rms |
Nominal Output
Frequency (Hz) | 50Hz ± 0.3Hz, 50Hz ± 0.3Hz |
Solar
charger | Rated Charge Current | 40A | 60A |
| PV Input Voltage range | 15VDC-40VDC for 12VDC, 30VDC-55VDC for 24VDC, 60-110VDC for 48V |
Max.PV open circuit
array voltage | 12V for 40Vdc, 24V for 55Vdc, 48V for 110Vdc |
| Charger mode | MPPT |
PV Low Voltage
Re-connect | PV≥Bat.V+3V |
PV Low Voltage
Disconnect | PV<=Bat.V |
| Efficiency | ≥97% |
AC
Charger | Nominal Charger
Current | 35A/50A/70A/90A(According to the inverter model) |
| 5 stages adjustable charging current |
| Over charge Protection | Bat.V≥15.5VDC for 12V battery, Bat.V≥31.0VDC for 24V battery ,Bat.V≥62.0VDC for 48V battery beeps 0.5s every 1s & fault after 60s |
| Efficiency | Efficiency(Battery Mode) | ≥87% |
| Efficiency (Line Mode) | >98% |
Battery
Voltage | Nominal DC input Voltage | 12/24/48VDC |
| Low Battery Alarm | 10.5VDC±0.3VDC for 12VDC |
| 21VDC±0.6VDC for 24VDC |
| 42VDC±1.2VDC for 48VDC |
High DC input
Alarm & Fault | 16VDC±0.3VDC for 12VDC |
| 32VDC±0.6VDC for 24VDC |
| 64VDC±1.2VDC for 48VDC |
| | Transfer
Time | 20ms(max) |
System
Parameter | Over-Load Protection | 110%the output,load>150%, beeps 0.5s every 1s, and Fault after 20s |
Output Short Circuit
Protection | Current limit (Fault after 10s) |
| Surge Rating(10s) | 1:3(VA) |
| Power Saver | Load≤25W(Enabled on "P/S auto"Setting of Remote control) |
| Protections | Low battery, over charging, over load, over temp |
General
Specifications
| Operating Temperature
Range | 0ºC~40ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 480*336*190mm |
| Net Weight(kg) | 19.5 | 23.5 | 25.5 | 28 |
| | | | | | |
| Product specifications are subject to change without further notice | | |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
