Pure Sine Wave Inverter 12000W Peak 4000W Continuous

Name: Pure Sine Wave Inverter 12000W Peak 4000W Continuous
Brand: all-electronics-online.com
SKU: 682922705
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 150-700/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW500-LW8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Power:	500W~8000W
Peak Power:	Three Times as Rated Power
Input Phase:	Single Phase
Waveform:	Pure Sine
Short Circuit Protection:	Yes,Shut Down After 10ms
Power Factor:	0.9~1.0
AC Mode Efficiency:	96%
Battery Mode Efficiency:	85%
Protection:	Low Battery,Over Charge,Over Load
Power Saver:	25W

Product Description

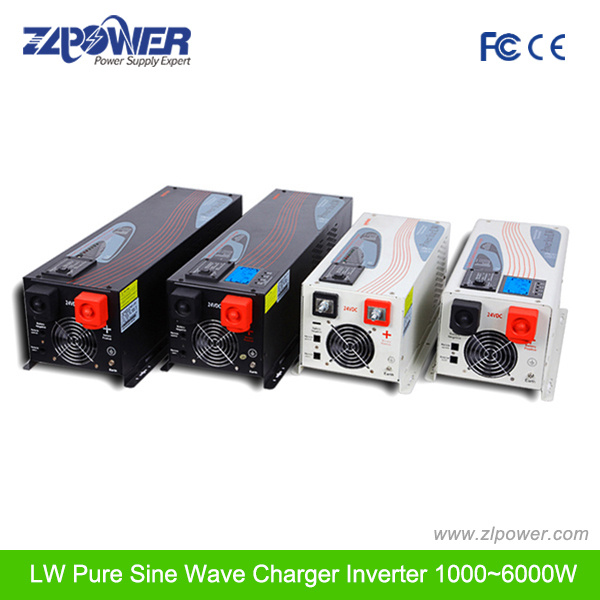

LW Pure Sine Wave Inverter Charger 500W-8000W, LCD digital display, 3times peak power, low frequency type with transformer, UPS function.

It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emergency EPS.

Main Features:
LCD digital display show voltage, load and battery info in real time.
Peak power is three times of rated power.
Can work with inductive load such as air conditioner, motor door and so on.
Pure sine wave output, available for sensitive load.
4-step progressive charging, 7 battery type selector.
Fast and powerful charger with 35A and 70A.
Accept generator's energy output.
High power factor 0.9, low power consumption.
Automatically transfer between battery and line modes.
Microprocessor control guarantees high reliability.
Bypass without battery connected.
Remote control function.
Protection against: Over load, over temperature, over charging, low battery
Reverse connection (optional by hard connector), Blackouts

Model No.	LW1000	LW1500	LW2000	LW3000	LW4000	LW5000	LW6000
Nominal Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W
AC Input
Phase & waveform	Single phase & Pure Sine Wave
Voltage	120VAC/230VAC
Acceptable Voltage	194-243VAC\164-243VAC (wide mode)
Line Low Transfer	85V±4%/184 (154 wide mode±4%)
Line Low Return	95V±4%/194 (164 wide mode±4%)
Line high Transfer	135V±4%/253±4%
Line high Return	127V±4%/243±4%
Frequency	50Hz or 60Hz (auto sensing)
Line Low Transfer	47Hz for 50Hz, 57Hz for 60Hz
Line high Transfer	55Hz for 50Hz, 65Hz for 60Hz
Output
Phase & waveform	Single phase & Pure Sine Wave (bypass mode sync to input)
Voltage	120/220/230/240VAC (bypass mode sync to input)
Voltage Regulation	±10%rms (bypass mode sync to input)
Frequency	50Hz±0.3Hz (bypass mode sync to input)
Peak Power	3 times of rating power
Short Circuit Protection	Yes, shutdown after 10ms
Power Factor	0.9-1.0
DC Input
Battery Voltage	12V/24V	12V/24V/48V			24V/48V
Minimum Start Voltage	10V for 12V, 20V for 24V, 40V for 48V
Low Battery Alarm	10.5V for 12V, 21V for 24V, 42V for 48V
Low Battery Transfer	10V for 12V, 20V for 24V, 40V for 48V
High Voltage Alarm	16V for 12V, 32V for 24V, 64V for 48V
Max Charging Current	35A/70A
Over Charge Voltage	15.7V for 12V, 31.4V for 24V, 62.8V for 48V
Transfer Efficiency
Line Mode	>95%
Battery Mode	>88%
power saver	Available when the load is less than 25 Watts
Indicators
7-LED Display	From the right to the left,LED1 line mode (green lighting)\LED2 inverter mode
	(green lighting)\LED3 charging mode(yellow lighting)\LED4 Fully charged
	(green lighting)\LED5 over heat shutdown(red lighting)\LED6 Overloaded
	shutdown(red lighting)\LED7 Saving Mode(green lighting)
3-LED Display	Charging Mode(green lighting)\inverter mode(green lighting)\ Alarm(red lighting)
Switch selector	Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is
	turning the inverter off.
Audible Alarm	Sounding when the heatsink's tem is over 105centi-degree and shutdown after 30 seconds.
Protections	low battery\over charging\over temp\over load
Communications	RS-232/USB(custom-made)
Environmental
Operating Environment	0-40centi-degree,0-90%RH(non-condensing)
Audible Noise	<60dB
Physical
Net Weight(KG)	18	20	20	26	48	48	48
Dimension, L X W X H(mm)	446218179				605218179

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
