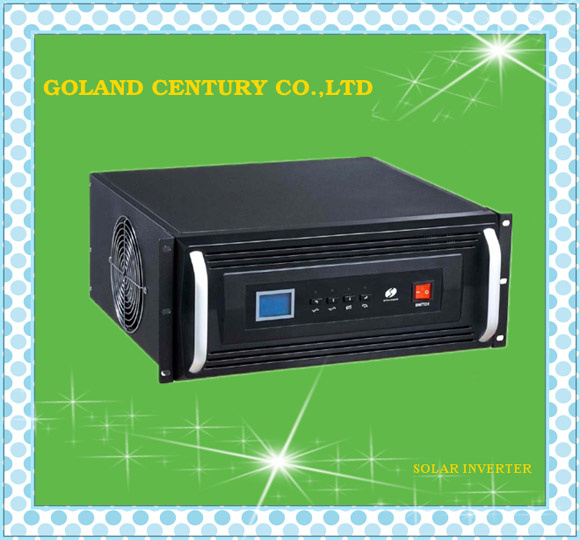

Pure Sine Wave Inverter 5kVA 48V
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
GS48/220-5KLC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Sine Wave Inverter 5KVA 48VFeatures of Inverter:a) With micro-CPU control, GS48/220-5KLC inverter is an intelligence model product, good designing and reliability are the advantages.
b) GS48/220-5KLC inverter is adopting SPWM technology, with the output of
stabilized voltage and frequency, pure sine-wave.
c) GS48/220-5KLC inverter has good compatibility, built-in by-pass switch, high
overload feature for reliable and continuous power supply.
d) GS48/220-5KLC inverter is DC power type. The inverter power supply is main
when the city power is normal, when inverter power is off, city power comes into
work state automatically.
e) With the excellent designing, GS48/220-5KLC inverter can be auto switched to
bypass on the running state, it's easy to maintain and replace the battery without
effecting load power supply.
f) In case there is battery voltage high/low or overload, the overload warning
shutdown output, when battery voltage recovers normal, battery voltage recovers;
power supply output will auto recovers in 50 seconds after overload off. This
function is very suitable for the communication station in which there is no
person on duty.
g) GS48/220-5KLC inverter can support network communication system; power
working state can be monitored by the supervision software.
h) GS48/220-5KLC inverter provides with two dry connectors which can be used
for DC input fault checking and AC output problem warning
Specification: | Output power | 5KVA | | Run mode | Pure inverter/online interactive | | DC Input | Rated input voltage | 48V | | DC Input | Rated input current | 119A | | DC Input | Turn-off voltage range | 42V-59V | | DC Input | Turn-on voltage range | 45V-57V | | DC Input | Anti-noise current irrigation | ≤10% | | AC Input | Bypass voltage(V) | 265~185(±10V) | | AC Input | Rated input current(A) | 22.7A | | AC Input | Bypass transfer time(ms) | ≤5ms | | AC Output | Rated capacity | 5000VA | | AC Output | Rated output power | 3500W | | AC Output | Rated output voltage and frequency | 220Vac,50Hz | | AC Output | Wave shape | Pure sine wave | | AC Output | Rated output current | 16A | | AC Output | Output voltage accuracy | 220 V±1.5% | | AC Output | Output frequency accuracy | 50Hz±0.1% | | AC Output | Waveform distortion | ≤3% | | AC Output | Dynamic Response Time | 5% | | AC Output | Power factor | 0.7 | | AC Output | Overload | 120%,30s | | AC Output | Efficiency(80% Resistive load) | ≥85% | Work
environment | Dielectric Strength | Input & output 1500Vac,1min | Work
environment | Noise(1m) | ≤40dB | Work
environment | Ambient temperature | -25ºC~+50ºC | Work
environment | Humidity | 0~90%,Non-condensing | Work
environment | Altitude(m) | ≤1000 | Work
environment | Cooling | Forced air | Interface
communication
interface | HMI | LCD display | Interface
communication
interface | Communication interface | RS232 | Interface
communication
interface | stem load output | 3ch output | Interface
communication
interface | TCP/IP network interface | Optional | | Protection | Input undervoltage, overvoltage; output overload, short circuit
protection; AC input high and low voltage protection | | Output wiring | Terminal Blocks | | Net Weight | 19KG | | Dimension | 483(W)×176(H)×413(D)mm |
|
