Pure Sine Wave Inverter (BN-5000VA, 48V)

Name: Pure Sine Wave Inverter (BN-5000VA, 48V)
Brand: all-electronics-online.com
SKU: 687071865
Availability: InStock
Rating: 4.6 (110 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BN-5000VA, 48V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Source:	Solar Power
Type:	DC/AC Inverters
Phase:	Single
Output Power:	>1000W

Product Description

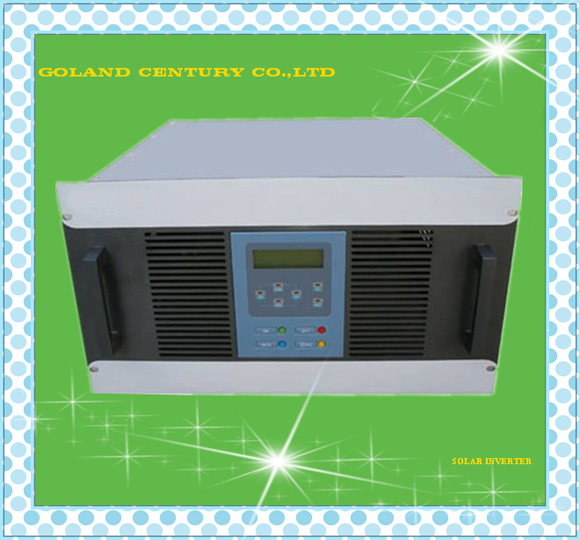

Pure Sine Wave Inverter BN-5000VA 48V

BN series sine wave inverter input DC voltage is 48VDC, the output voltage is 110VAC. Primarily for power plants, power systems, chemical, metallurgical and other important occasions, to provide uninterrupted power. In the power plants with DC bottle or electric system adopt inverter compared to using conventional uninterruptible power supply (UPS), the former has the following advantages:
1. To avoid duplication of investment in batteries and reduce system maintenance and operating costs;
2. As a result of the DC bottle adopt Valve-regulated sealed battery which can be long Float charger life, Therefore use of DC power and inverter, the power supply reliability and expectancy life greatly increased;
3. As a result of the DC bottle of power plant have large capacity, so using inverter power supply, electric when the state grid broke off can supply power for a longer time.
4. Sine wave inverter power applications to eliminate many unfavorable factors as directly use of state grid electricity and UPS, Fundamentally avoid due to instability electricity and power supply interruptions, noise interference and lightning, such as the harm caused by invasive.

Specification:
Type: BN48-5K

DC
Input: Input rated voltage(VDC) 48
Input rated current(A) 116
Allowed DC input voltage range(VDC) 40-60

AC
Input Allowed AC grid voltage(V) 110± 15%
Rated input current(A) 23

AC
Output: Rated capacity(kVA) 5.0
Output rated power(KW) 4.0
Output rated voltage and frequency 110VAC, 50Hz
Output rated current(A) 23
Output voltage precision (V) 110± 1%
Output frequency precision (Hz) 50± 0.05

Wave distortion (THD)
(line load) ≤ 3%
Dynamic reaction
(Load 0 — 100%) 5%
Power factor (PF) 0.8
Over load ability 150%, 10s
Peak coefficient (CF) 3: 1
Inversion effciency(80% load) 90%
Working

Environment:
Insulation intensity
(input chassis and output chassis) 1500VAC, 1minute
Noise(1m) ≤ 50dB
Working environment temperature -10º C~+50º C
IP 45
Humidity 0~90%, no dew
Altitude(m) ≤ 2000
