PV Application DC Load Break Switch

Name: PV Application DC Load Break Switch
Brand: all-electronics-online.com
SKU: 738870775
Availability: InStock
Rating: 4.5 (127 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UKG2-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	3 Years
Type:	Low-voltage
Installation:	Indoor High-voltage
Structure:	Three-column Disconnector

Product Description

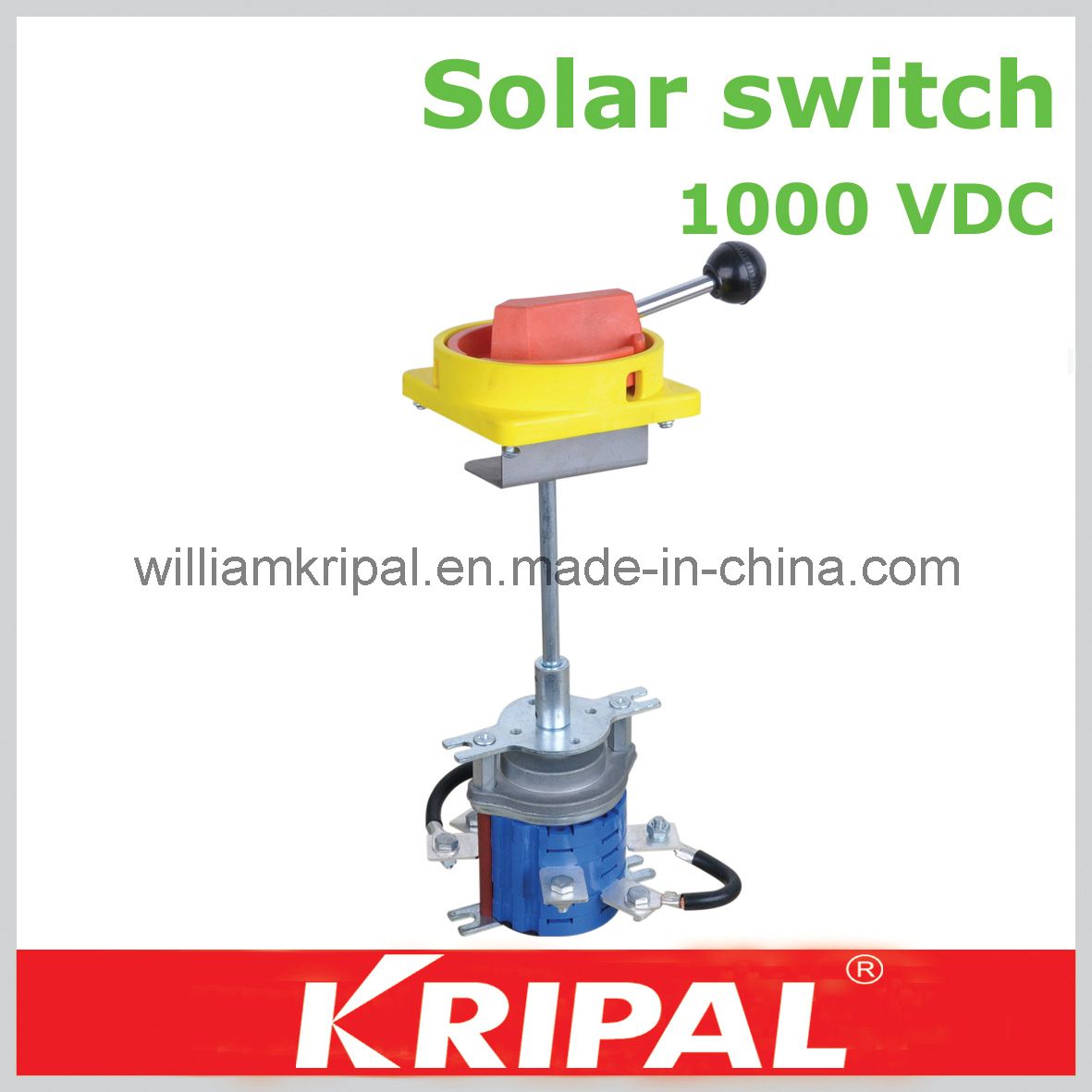

DC Solar isolator switch for solar photovoltaic system

KRIPAL IS THE ONLY ONE WHO MAKE THIS SERIES IN CHINA.

63A 1000VDC

Our products are designed, manufactured and tested according to the following standards: EN 60947, EN 60204-1, IEC 60947, IEC 60204-1

Certificate: CE, ISO9001: 2000

Samples: Provided freely

Warranty: 3 years; Every item is tested before delivery, professional testing lab in factory

Lead time: 20 days and depend on ordering quantity

ODM, OEM: Acceptable; Mould toolings are finished in our own mould tooling center

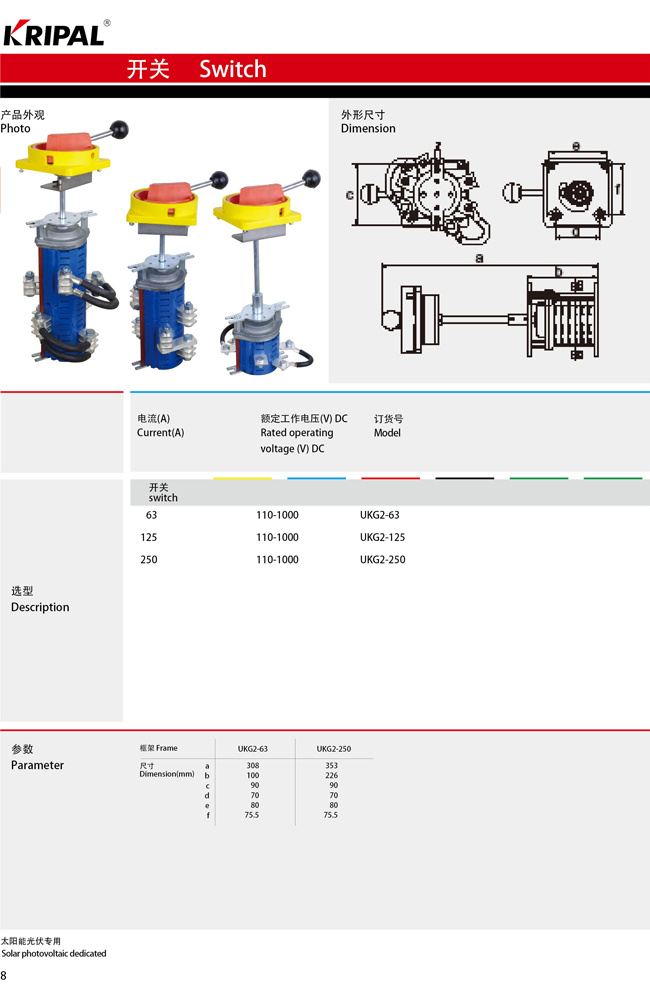

Type		UKG2-63	UKG2-125	UKG2-250
Rated insulation voltage		440	440	440
Impulse voltage	Uimp	6	6	6
Rated operational voltage	DC	250	250	250
Rated operational voltage	AC	440	440	440
Conventional thermal current(A)	Ith	63	125	250
	Ithe	63	125	250
	Iu	63	125	250
Rated thermal current le (A)	AC22A 690V
	AC23A 525V
	AC22A 525V
	AC23A 440V	63	100	175
	AC22A 440V
	AC22A 415V
	DC23A 250V		100
	DC22A 250V	63		175
	DC21A 250V
Rated operational power(kW)	AC22A 690V
	AC23A 525V
	AC22A 525V
	AC23A 440V	3.75	61	108
	AC22A 440V
	AC22A 415V
	DC23A 250V		22.5
	DC22A 250V	14		40
	DC21A 250V
Rated short-time current	Icw 1 sec. (A)	1500	4000	5000
Rated short-time current	Icm peak (Ka)	2.2	5.88	7.65

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
