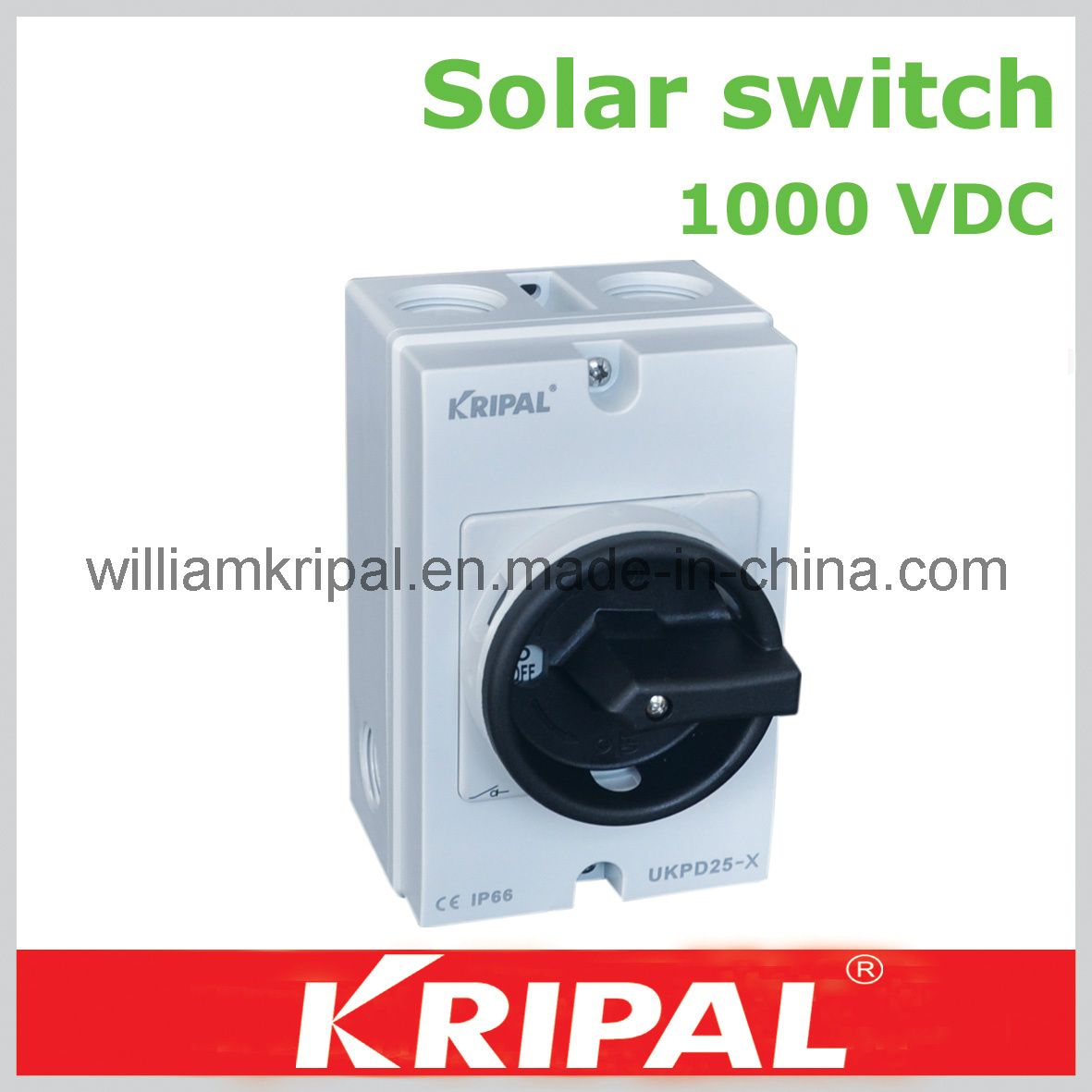

Solar Photovoltaic System Isolating DC Switch

Prod Model:	UKPD25-X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP:	65
Installation:	Front
Materials:	PC, Nylon, Copper, Silver
Usage:	Machinery

Product Description

Isolating DC switch with enclosure for solar phovoltaic system

Ratings: 19A 1380 VDC; 23A 1200VDC; 25A 1020VDC

Insulation voltage: 1500V

IP66/IP67

All grid-connected generation systems (wind, PV, Hydro, CHP) must have G83 Grid-connection equipment, and must include a DC isolator on the DC side of the grid-tie inverter, and an AC-isolator on the AC side of the grid tie inverter.

Our products are designed, manufactured and tested according to the following standards: EN 60947, EN 60204-1, IEC 60947, IEC 60204-1

Certificate: CE, , ISO9001: 2000

Samples: Provided freely

Warranty: 3 years; Every item is tested before delivery, professional testing lab in factory

Lead time: 20 days and depend on ordering quantity

ODM, OEM: Acceptable; Mould toolings are finished in our own mould tooling center
