PV Branch Connector with 2 to 1 Mc4 Connectors

Name: PV Branch Connector with 2 to 1 Mc4 Connectors
Brand: all-electronics-online.com
SKU: 704473722
Availability: InStock
Rating: 4.7 (94 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B4A/B4B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Male & Female
Inner Diameter:	4.0mm
Insulation Material:	PPO
Suitable Cable:	2.5-10mm2
Rated Current:	30A
Color:	Black
Material:	Copper
Application:	Solar Panels System
Type:	Solar System Mc4 Connector
Production Process:	Norm
Certification:	TUV
Brand:	Bangzhao or OEM

Product Description

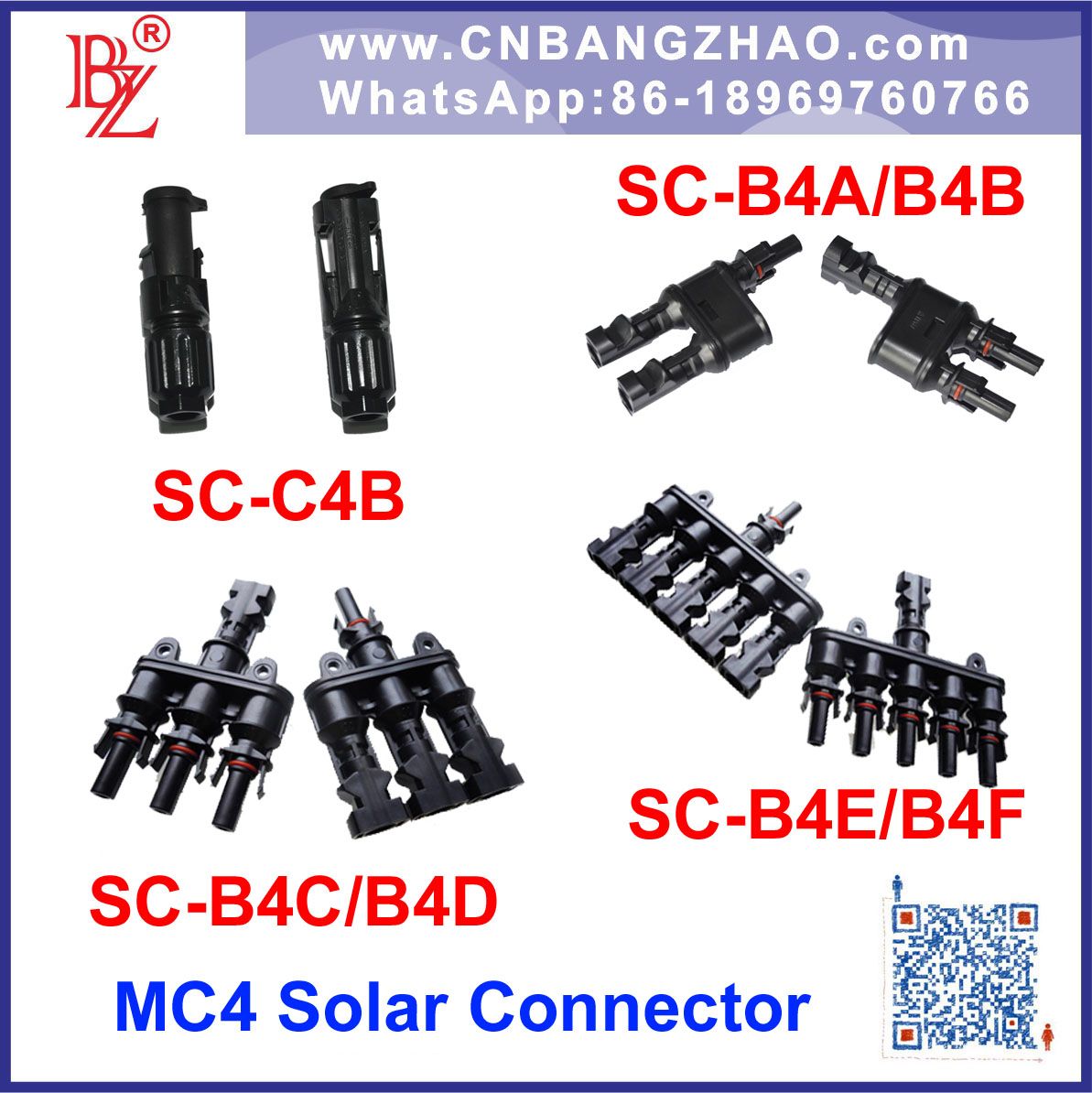

PV branch connector with 2 to 1

Specialty:
With the capacity of anti-aging and anti-ultraviolet radiation;
To meet the using requirements under bad outdoor conditions;
Can meet different specifications of the cable ,and accept customized length of cable according to the customers requests;
Cable connection using riveting and confining means;
Male and female first mating convenient, without the help of other tools;

Product No.	B4A/B4B
Rated voltage	TUV 1000V DC / UL 600V DC
Rated current	30A
Suitable cable cross sections	2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal size	Φ4.0mm
Test voltage	DC 8KV 1min
Pollution degree	2
Protection class	Class II
Terminal Material	Tinned copper
Contact resistance	≤ 5mΩ
Insulation Materials	PPO
IP rating	IP67(IEC 60529)
Pull-out force	≥ 50N
Insertion Force	≤ 50N
Test temperature	-40ºC~ +85ºC
Flame Class	UL94V - 0

Remarks:

Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers;
We can provide the cables as well as connectors linked with the cable;
We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery;

1.Quality:
l Bangzhao sends all the items with outgoing quality inspection report.
l We guarantee 100% good quality when the products are sent out of factory.
2.Shipping:
l Bangzhao ship to world wide;
l We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days.
3.Return Policy:
l Once we shipped the products,our after-sale service will send you the tracking number;
l If your item is not as described or faulty when you receive it,we will replace it for you with no additional charge.
l If the item is found non-defective,the item will be sent back to the buyer at buyer's expense.

PV cable connector for 10mm 2/8AWG solar cable
