8 Wag PV Module Connector for Phoectricicy System

Name: 8 Wag PV Module Connector for Phoectricicy System
Brand: all-electronics-online.com
SKU: 702807172
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-C4C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Male & Female
Inner Diameter:	4.0mm
Insulation Material:	PPO
Suitable Cable:	2.5-6mm2
Rated Current:	30A
Color:	Black
Material:	Copper
Application:	Solar Panels System
Type:	Solar System Mc4 Connector
Production Process:	Norm
Certification:	TUV
Brand:	Bangzhao or OEM

Product Description

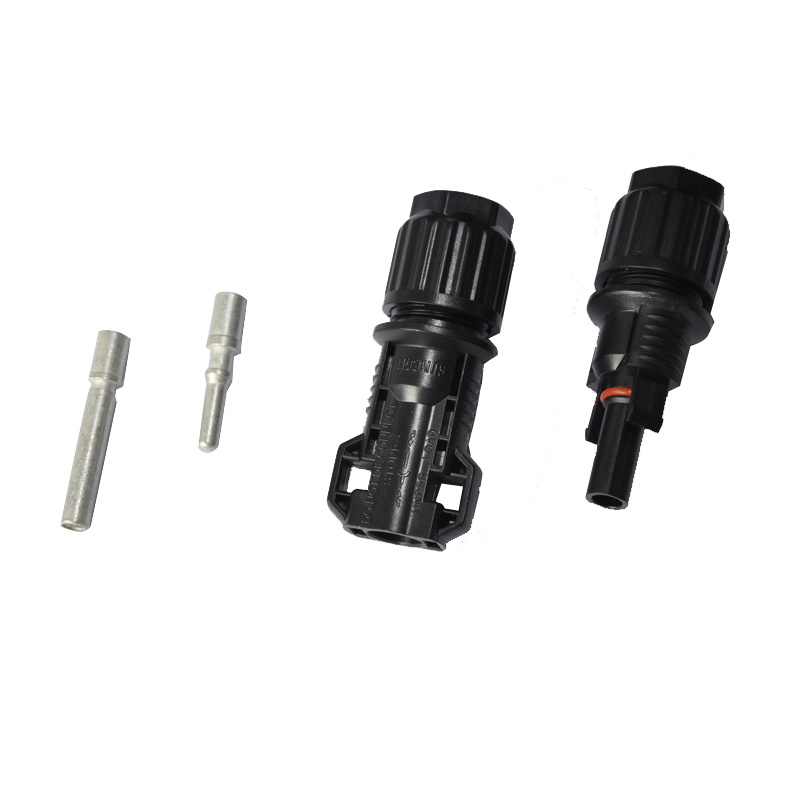

8 WAG pv module connector for phoectricicy system

Specialty:
With the capacity of anti-aging and anti-ultraviolet radiation;
To meet the using requirements under bad outdoor conditions;
Can meet different specifications of the cable ,and accept customized length of cable according to the customers requests;
Cable connection using riveting and confining means;
Male and female first mating convenient, without the help of other tools;

Main parameter
Rated current : 30A	Insulationg material: PPO
Ambient temperature range: -40~+90° C	Flame class: UL94-V0
Safety class: II	Shell Protection degree: IP67
Contact material: Copper,Tin Plated	Test voltage: 6KV(TUV50Hz.1min)
Insertion force: ≤ 50N	Withdrawal force: ≥ 50N
Contact resistence: 0.4mΩ	Test voltage: 6000V(TUV50Hz,1min)
Connecting System: Crimp connection	Pin dimensions: Φ4.0mm

Remarks:

Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers;
We can provide the cables as well as connectors linked with the cable;
We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery;

1.Quality:
l Bangzhao sends all the items with outgoing quality inspection report.
l We guarantee 100% good quality when the products are sent out of factory.
2.Shipping:
l Bangzhao ship to world wide;
l We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days.
3.Return Policy:
l Once we shipped the products,our after-sale service will send you the tracking number;
l If your item is not as described or faulty when you receive it,we will replace it for you with no additional charge.
l If the item is found non-defective,the item will be sent back to the buyer at buyer's expense.

8 WAG pv module connector for phoectricicy system

Yueqing Bangzhao Electric Co., Ltd. is specialized in the field of power research and development, production and service. In all varieties, high quality, excellent service is recognized by the vast number of customers, the company R & D products basically covers the best product, they represent the highest level in the world manufacturing power. The main products are: Photovoltaic grid connected inverter, wind grid tied inverter, pure sine wave inverter, high frequency off grid inverter, low frequency off grid inverter, photovoltaic water pumping inverter, single-three phase converter, voltage converter, solar charger controller, photovoltaic lightning protection confluence box, PV combiner box, controller-inverter one machine, wind-solar hybrid controller, VLF high voltage generator and so on. The company products in the fire, building, industry, new energy, civil, financial, taxation, power medical, aviation, military industry, automation control system, the construction of national key projects, are widely used in various fields.

According to state electric company to maintain long-term good cooperation, R & D and leading universities with science and technology, the introduction of absorbing international advanced technology, establish a strict quality control system.

We will uphold the principle of "unremitting exploration, and strive to innovation, integrity and dedication, aestheticism is the only" objective "quality policy, standard management, careful manufacturing, quality first, dedicated service". The pursuit of excellence, innovation and value!

We will make unremitting efforts, with you to create brilliant.
