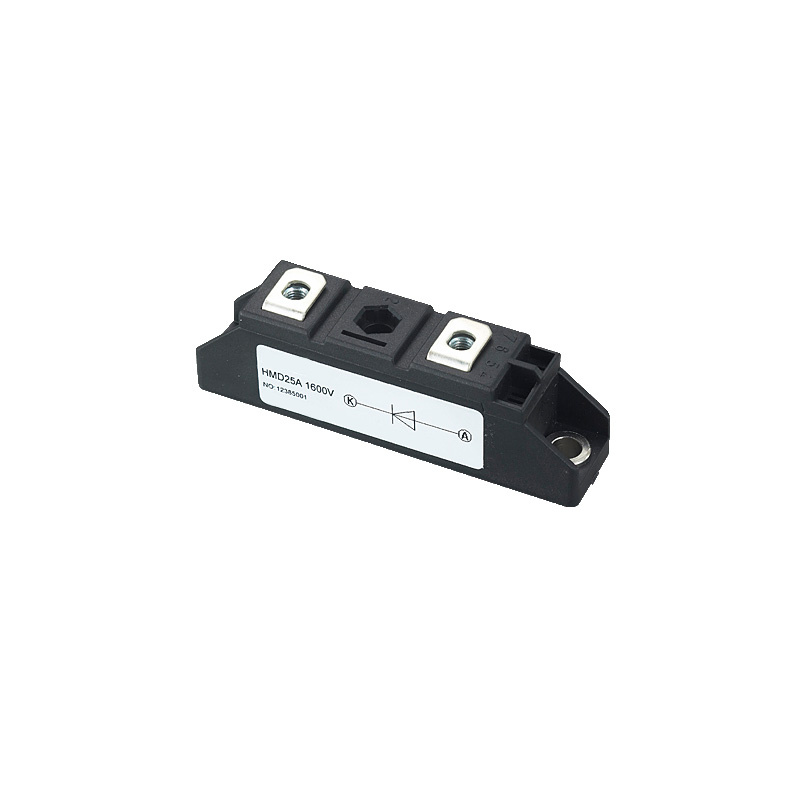

PV Diode Module HMD

Prod Model:	HMD
Current:	25A-800A
Voltage:	500-2500
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	SMD
Brand:	Deson

Product Description

Intelligent Power Module is a multi-functional power module, which combines thyristor power circuit, phase-shift and trigger circuit. It is a integrated electricity phase-shift and open-loop system. It can realize the voltage control of the load. With built-in linear control circuit, it is highly precise and stabilized. It is widely used the fields such as speed modulation of DC motor, industrial automation, electric heating control, mechanical and electrical integration, diversified power supplies.




Type	IF(AV)	VRRM	VFM@IFM		IRRM	IF(RMS)	IFSM	Rjc	Tjm	Viso	Outine
	A	V	V	A	mA	A	A×103	ºC/W	ºC	V(AC)
HMD25A	25	500-2500	1.10	80	8	41	0.65	1.30	150	2500	C-1,12,20
HMD55A	55	500-2500	1.10	170	8	86	1.30	0.70	150	2500	C-1,12,20
HMD90A	90	500-2500	1.15	270	8	141	2.30	0.47	150	2500	C-1,12,20
HMD110A	110	500-2500	1.15	330	8	173	2.60	0.35	150	2500	C-1,12,20
HMD130A	130	500-2500	1.18	410	12	212	3.90	0.31	150	2500	C-2,12,21,24
HMD160A	160	500-2500	1.20	480	12	251	6.00	0.23	150	2500	C-2,12,21,24
HMD200A	200	500-2500	1.20	600	12	314	8.00	0.21	150	2500	C-2,3,14,15,22,23,24,13,6
HMD250A	250	500-2500	1.25	750	20	393	11.00	0.14	150	2500	C-3,14,15,22,23,24,6
HMD300A	300	500-2500	1.30	900	20	471	12.50	0.13	150	2500	C-3,14,15,22,23,24,6
HMD350A	350	500-2500	1.30	1050	30	550	15.00	0.11	150	2500	C-4,7
HMD500A	500	500-2500	1.35	1500	40	785	21.00	0.90	150	2500	C-4,7,16
HMD600A	600	500-2500	1.35	1800	40	942	15.00	0.11	150	2500	C-5,8,16,17
HMD800A	800	500-2500	1.40	2400	40	1256	18.00	0.08	150	2500	C-5,8,17
