PV Module Components 1000V/ 1500V DC Fuse Block with Fuse
| Price: |
US $ 1-10/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
BZCF-1500VDC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CE Standard: |
IEC60947-2/GB14048.2 |
| Current: |
3A,4A,6A,10A,13A,16A,20A,25A,32A,40A,50A,63A |
| Poles: |
1p,2p,3p,4p |
| DC Voltage: |
400V,600V,1000V Optional |
| Brand: |
Bangzhao or OEM |
Product Description

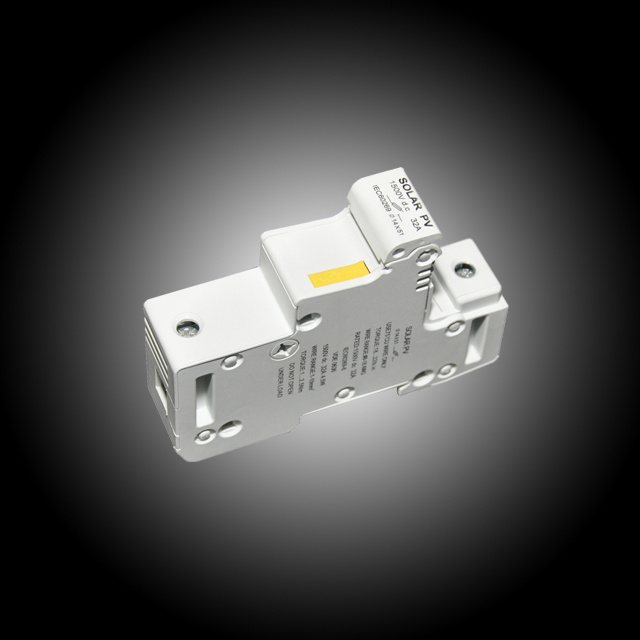

PV Module Components 1000V/ 1500V DC Fuse Block with Fuse
PV DC PVH-30 Fuse Holder was designed and manufactured , complying with the standard IEC60947-3. The Rated Current up to 30A,rated voltage up to 1000V DC. It applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.
PV DC PVH-30 Fuse Holder |
| Pole | 1P |
| According to | IEC 60947-3 |
| Electrical Characteristics |
| Rated Working Voltage | Ue | 1000V DC |
| Rated Current | In | 30 A |
| Breaking Capacity | 20KA |
| Max Power Dissipation | 3W |
| Contol and Indication |
| Operating State/Fault Indication | Indicator Light OFF/Indicator Light ON |
| Connection and Installation |
| Wire | 2.5mm2~25 |
| Terminal Screws | M5 |
| Torque | Nm | 2.5 |
| Degree of Protection | IP20 |
| Installation Environment |
| Fuse Size | 10x38 mm |
| Operating Temperature Range | TU | -30ºC~+70ºC |
| For Mounting On | TH35-7.5/DIN35 |
| Pollution Degree | 3 |
| Relative Humidity | +20 ºC≤ 95%,+40ºC≤50% |
| Weight | 0.07kg Per pole |
| Installation Class | III |

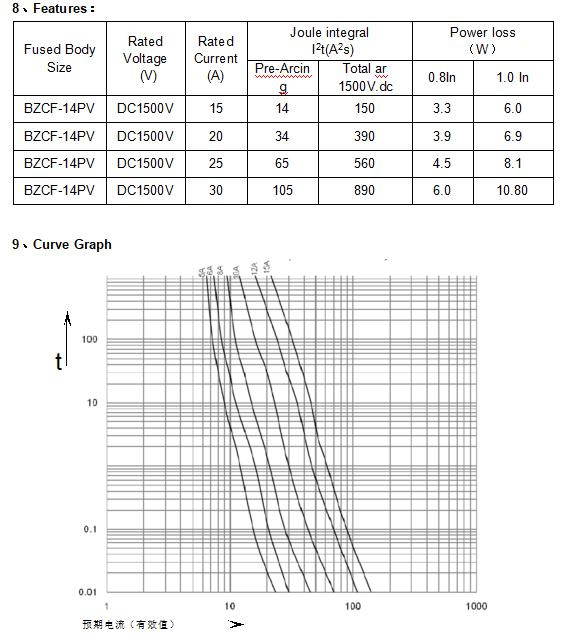

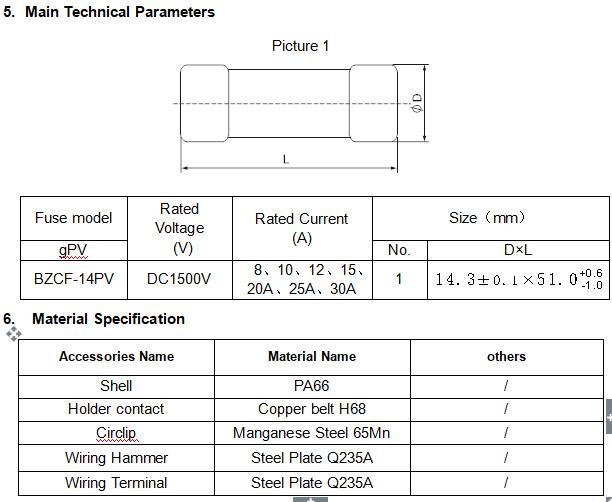

1. Application:BZCF series of fuses for rated DC voltage to 1500V, the c oiurated current to 30A of the line, and the photovoltaic panels and batteries in series in parallel, the charge converter system to do short-circuit break protection; the same time, Variable rectifier system and short circuit fault breaking protection; and do photovoltaic power generation system inrush current and short circuit fault over-voltage fast breaking protection, rated breaking capacity of 20KA, and Division I is now doing the relevant test, once again enhance the product breaking capacity, Comply with the relevant standards IEC60269, GB13539, UL42428 requirements.2. Normal working conditions:The ambient air temperature limit of not more than 90 ºC; the ambient air temperature lower limit of not less than -50 ºC; installation site altitude of not more than 2000m (if more than 2000m, need to specify the requirements, the company can be designed and developed in accordance with customer requirements).3. Use category"gPV" indicates a DC fuse for full range breaking capability for over-current protection of solar PV systems.4. Structural featuresThis product is made of 99.99% pure silver piece made of variable cross-section melt encapsulated in 95% AL2O3 high strength porcelain made of molten pipe, the melting tube filled with chemically treated high purity quartz sand and special treatment of chemical materials as off Arc medium, the contact surface with silver processing, the two ends of the melt using spot welding and contact firmly connected.
Yueqing Bangzhao Electric Co., Ltd. is specialized in the field of power research and development, production and service. In all varieties, high quality, excellent service is recognized by the vast number of customers, the company R & D products basically covers the best product, they represent the highest level in the world manufacturing power. The main products are: Photovoltaic grid connected inverter, wind grid tied inverter, pure sine wave inverter, high frequency off grid inverter, low frequency off grid inverter, photovoltaic water pumping inverter, single-three phase converter, voltage converter, solar charger controller, photovoltaic lightning protection confluence box, PV combiner box, controller-inverter one machine, wind-solar hybrid controller, VLF high voltage generator and so on. The company products in the fire, building, industry, new energy, civil, financial, taxation, power medical, aviation, military industry, automation control system, the construction of national key projects, are widely used in various fields.
According to state electric company to maintain long-term good cooperation, R & D and leading universities with science and technology, the introduction of absorbing international advanced technology, establish a strict quality control system.
We will uphold the principle of "unremitting exploration, and strive to innovation, integrity and dedication, aestheticism is the only" objective "quality policy, standard management, careful manufacturing, quality first, dedicated service". The pursuit of excellence, innovation and value!
We will make unremitting efforts, with you to create brilliant.
