Solar System Direct Current 10*38 10A 1000V DC Fuse

Solar System Direct Current 10*38 10A 1000V DC Fuse
Price: US $ 1-10/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SDPV-30
Ce Standard: IEC60947-2/GB14048.2
Current: 3A,4A,6A,10A,13A,16A,20A,25A,32A,40A,50A,63A
Poles: 1p,2p,3p,4p
DC Voltage: 400V,600V,1000V Optional
Brand: Bangzhao or OEM

Product Description

Solar System Direct Current 10*38 10A 1000V DC Fuse
PV DC SDPV-30 Fuse Holder was designed and manufactured , complying with the standard IEC60947-3. The Rated Current up to 30A,rated voltage up to 1000V DC. It applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.

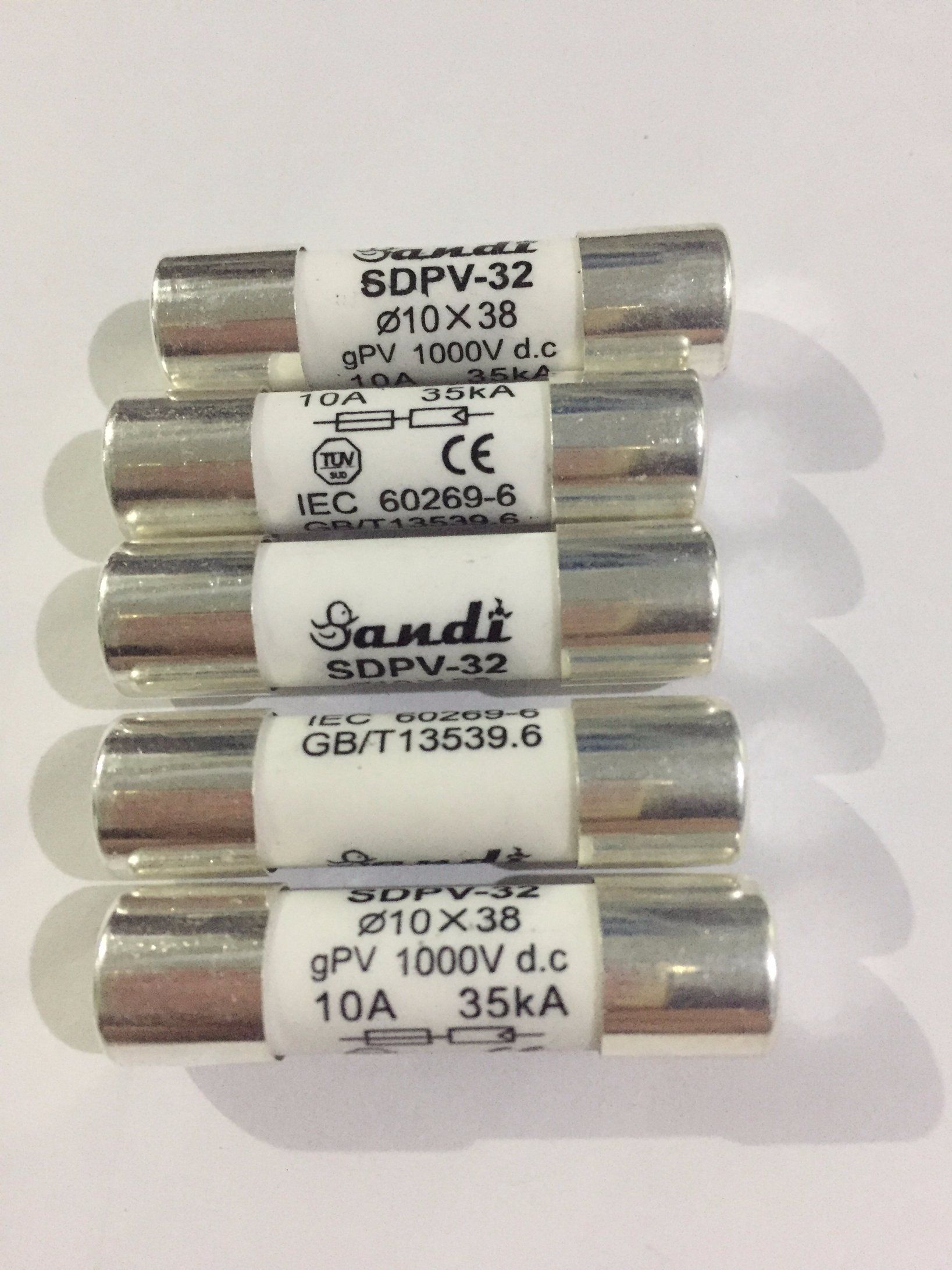

>Fuse type: 1000V fuse
>Size:10x38mm
>Ur:1000V
>Ir:1A 2A 3A 4A 5A 6A 8A 10A 12A 15A 20A 30A
>Approvals:CE
>Very reliable and cost effective

>Raw materials adopted from Taiwan and overseas areas

>Fast delivery

>Factory-direct sale

>Wide operating temperature range

> Internationally approved

>RoHS compliant

>All dimensions available

>Various alternative fuse holders

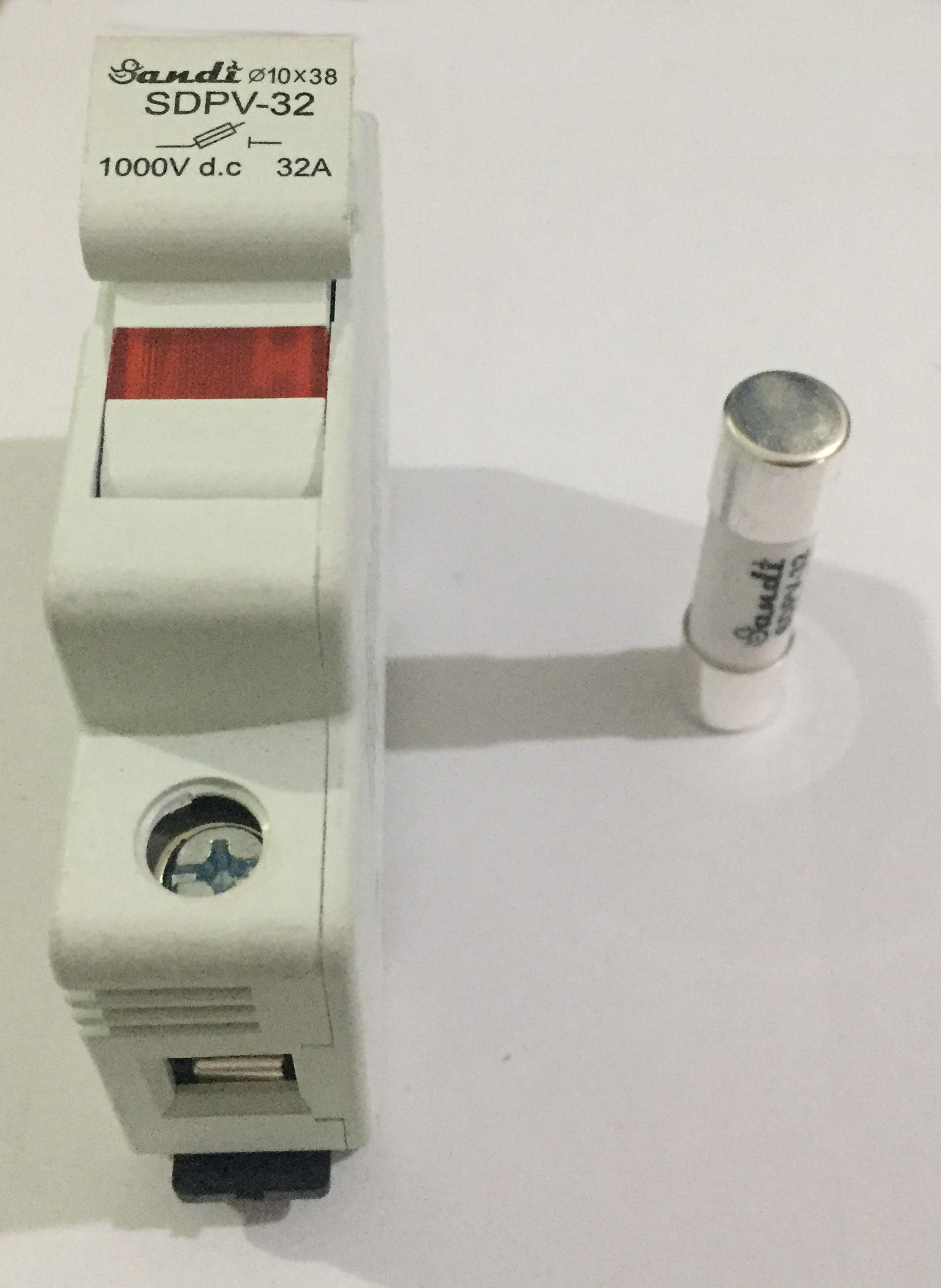

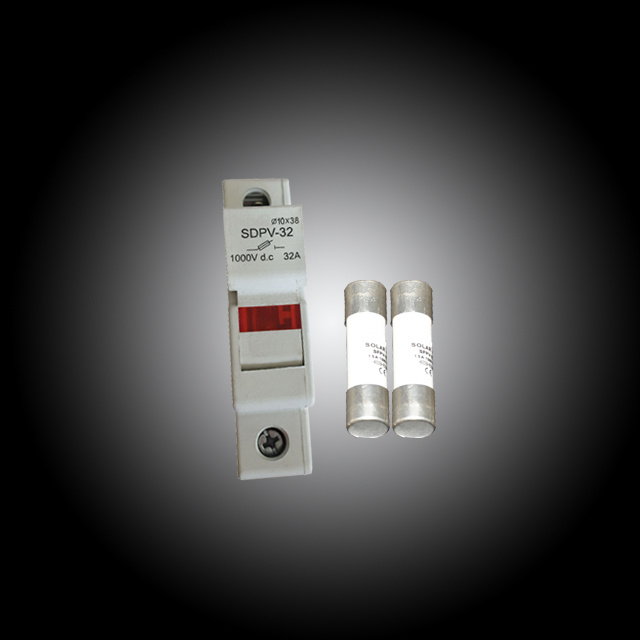

PV DC SPVH-30 Fuse Holder
Pole1P
According toIEC 60947-3
Electrical Characteristics
Rated Working VoltageUe1000V DC
Rated CurrentIn30 A
Breaking Capacity20KA
Max Power Dissipation3W
Contol and Indication
Operating State/Fault IndicationIndicator Light OFF/Indicator Light ON
Connection and Installation
Wire2.5mm2~25
Terminal ScrewsM5
TorqueNm2.5
Degree of ProtectionIP20
Installation Environment
Fuse Size10x38 mm
Operating Temperature RangeTU-30ºC~+70ºC
For Mounting OnTH35-7.5/DIN35
Pollution Degree3
Relative Humidity+20 ºC≤ 95%,+40ºC≤50%
Weight0.07kg Per pole
Installation ClassIII




Yueqing Bangzhao Electric Co., Ltd. is specialized in the field of power research and development, production and service. In all varieties, high quality, excellent service is recognized by the vast number of customers, the company R & D products basically covers the best product, they represent the highest level in the world manufacturing power. The main products are: Photovoltaic grid connected inverter, wind grid tied inverter, pure sine wave inverter, high frequency off grid inverter, low frequency off grid inverter, photovoltaic water pumping inverter, single-three phase converter, voltage converter, solar charger controller, photovoltaic lightning protection confluence box, PV combiner box, controller-inverter one machine, wind-solar hybrid controller, VLF high voltage generator and so on. The company products in the fire, building, industry, new energy, civil, financial, taxation, power medical, aviation, military industry, automation control system, the construction of national key projects, are widely used in various fields.

According to state electric company to maintain long-term good cooperation, R & D and leading universities with science and technology, the introduction of absorbing international advanced technology, establish a strict quality control system.

We will uphold the principle of "unremitting exploration, and strive to innovation, integrity and dedication, aestheticism is the only" objective "quality policy, standard management, careful manufacturing, quality first, dedicated service". The pursuit of excellence, innovation and value!

We will make unremitting efforts, with you to create brilliant.
