| Conductor: |
Copper/Tinned Copper/CCA/Al |
| Color: |
Customize |
| Application: |
Computer |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Brand: |
Yongkuntai |
Product Description
Basic Info
Model NO.: VVR-0.6/1KV
Voltage: Low and Medium Voltage Cable
Insulation Material: PVC
Material Shape: Round Wire
Certification: ISO, CCC, CE, SAA
Trademark: Jinting
Specification: ISO9001, SGS
HS Code: 8544609090
Application: Construction, Underground, Industrial, Power Station
Current: AC Cable
Sheath Material: PVC
Wire Core Material: Red Copper Wire
Main Market: Middle East, Africa , Europe
Transport Package: Wooden Drum, Iron Wooden Drum, Iron Drum.
Origin: China
Product Description

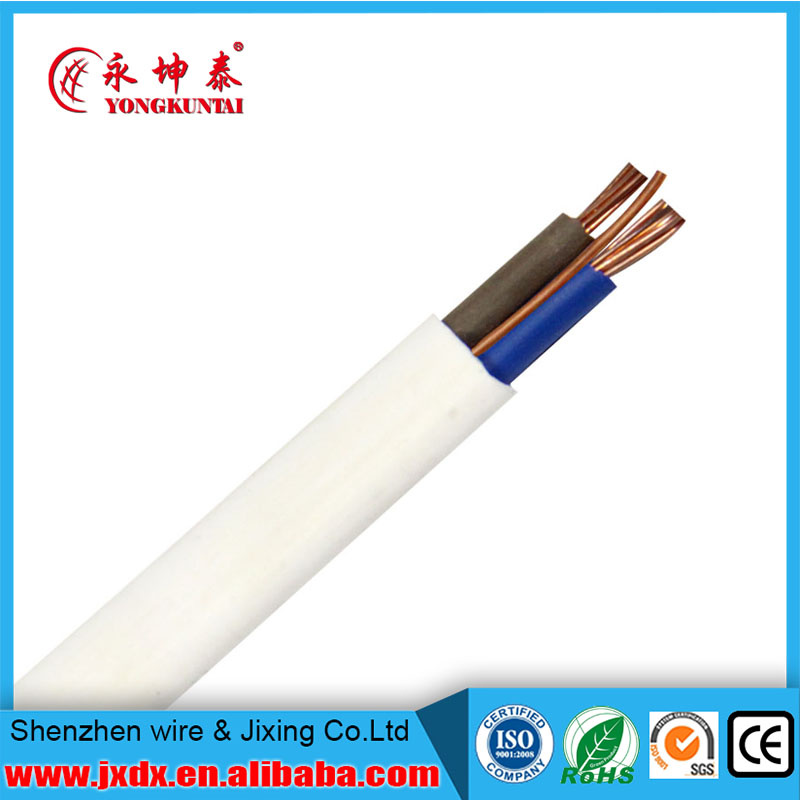

Name: Copper conductor,PVC insulated PVC sheathed power cable.
SPECIFICATION: 2core 3ore 4core for reference
1). Rated Voltage, No. of Core and Range of Sectional Area
Rated voltage (kv)
Sectional area (mm2)
No. of core | 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 |
| 2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 |
| 1 Core | | 1.5-800 | 25-800 | 25-1200 | 25-1200 | 35-1200 | 50-1200 | 50-1200 | 50-1200 |
| 2 Core | | 1.5-185 | 25-185 | | | | | | |
| 3 Core | | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
| 4 Core | | 2.5-400 | 25-400 | | | | | | |
| 5 Core | | 2.5-400 | 25-400 | | | | | | |
2). DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.
| Nominal section area (mm2) | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 | 500 | 630 | 800 |
| Copper core | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 | 0.727 | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 | 0.099 | 0.0754 | 0.0601 | 0.047 | 0.0366 | 0.0283 | 0.0221 |
| Aluminum core | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.91 | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 | 0.125 | 0.1 | 0.778 | 0.0605 | 0.0469 | 0.0367 |
3). Voltage Test and Partial Discharge Test
Rate voltage Uo (kv)
Item | 0.6/1 | 1.8/3 | 3.6/6 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/20 18/30 | 21/35 | 26/35 |
| Voltage | Test voltage | 3.5 | 6.5 | 12.5 | 21 | 30.5 | 42 | 63 | 73.5 | 91 |
| Test time | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Partial discharge test | Test voltage | - | - | 6.2 | 10.4 | 15.1 | 20.8 | 31.1 | 36.3 | 45 |
| Discharge capacity | - | - | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
These are conform to international quality standards.
Customers' design and logo are welcome.
OEM accepted.
Well and high quality control.
Reasonable price.
Short Delivery Time: within 15 days.
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials, Strict quality control system
3) Customized sizes, OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, etc.
2) Sample time: 3-5 days..
3) Production time: 7-30 days (Depends on the Qty) upon advanced payment received.
4) Packing: export standard cartons, drums or customized as customers' requests.
