PVC Hook up Wire Electrical Wiring Electric Wire

Name: PVC Hook up Wire Electrical Wiring Electric Wire
Brand: all-electronics-online.com
SKU: 793744675
Availability: InStock
Rating: 4.8 (64 reviews)

Price:	US $ 1500/Ton
Min Order:	20/Ton
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1.5 2.5 3.5
Standards:	IEC
Factory Area:	100000mm2
QC:	25
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Brand:	Huatong

Product Description

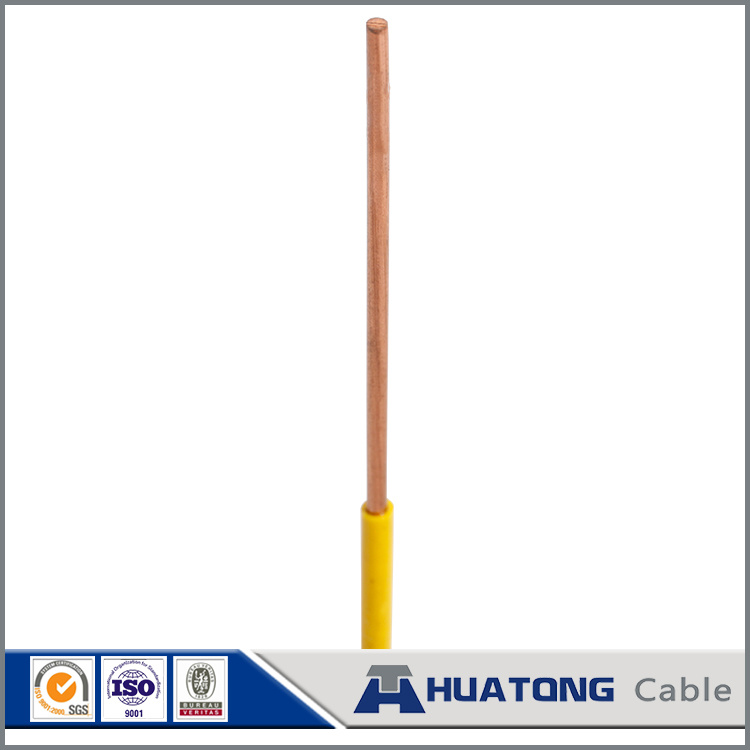

PVC Hook up wire electrical wiring electric wire

Specification:

1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.

2. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0 degree.

3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.

4. Construction:
copper or aluminum conductor
PVC or XLPE insulated
Single or Multicore
flat or round Shape

IF YOUR HAVE ANY INTERESTED PRODUCTS, PLS FEEL FREE TO CONTACT OUR SALES TEAM.

Nominal cross section (mm2)	Number/diameter of core(mm)	Insulation thickness (mm)	Maximum outer diameter(mm)	Reference Weight(km/kg)	Conductor resistance at 20°C≤(Ω/km)
0.5	1/0.80	0.6	2.4	8.44	36
0.75	1/0.97	0.6	2.6	11.02	24.5
1	1/1.13	0.6	2.8	13.85	18.1
1.5	1/1.38	0.7	3.3	20.2	12.1
1.5	7/0.52	0.7	3.4	21.62	12.1
2.5	1/1.78	0.8	3.9	31.9	7.41
2.5	7/0.68	0.8	4.2	34.89	7.41
4	1/2.25	0.8	4.4	46.95	4.61
4	7/0.85	0.8	4.8	50.2	4.61
6	1/2.76	0.8	4.9	66.8	3.08
6	7/1.04	0.8	5.4	71.04	3.08
10	1/3.58	1	6.4	111.62	1.83
10	7/1.35	1	6.8	118.61	1.83
16	7/1.70	1	8	178.68	1.15
25	7/2.14	1.2	9.8	280.51	0.727
35	7/2.52	1.2	11	378.97	0.524
50	19/1.78	1.4	13	508.07	0.387
70	19/2.14	1.4	15	715.76	0.268
95	19/2.52	1.6	17	989.79	0.193
120	37/2.03	1.6	19	1228.03	0.153
150	37/2.25	1.8	21	1509.8	0.124
185	37/2.52	2	23.5	1892.29	0.0991
240	61/2.25	2.2	26.5	2489.14	0.0754
300	61/2.52	2.4	29.5	3114.25	0.0601
400	61/2.85	2.6	33.5	3967.07	0.047

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
