Product Description

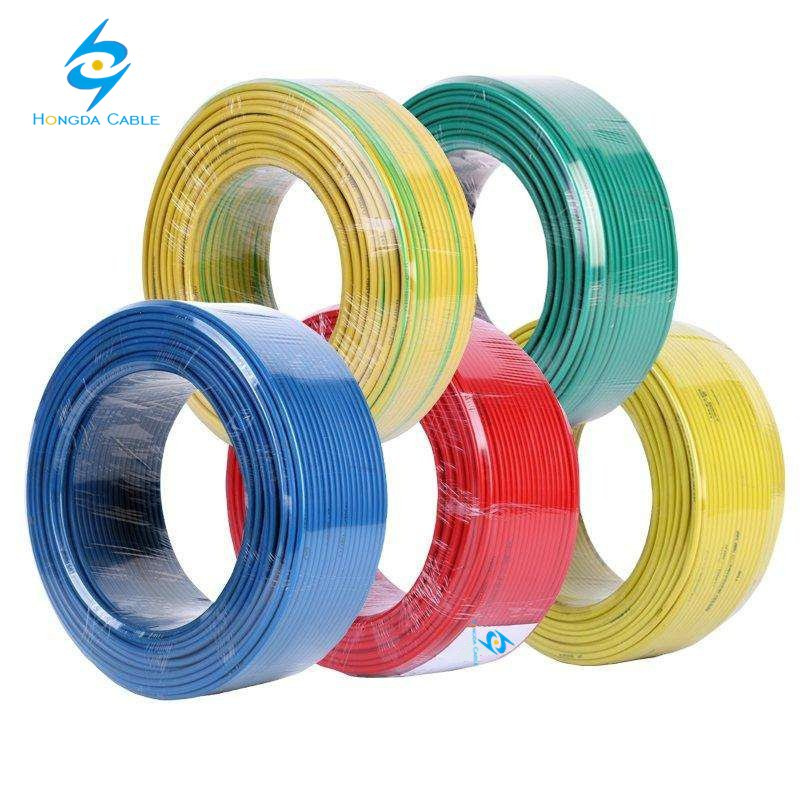

450/750 V Stranded Copper Conductor PVC Insulated Thw Wire60227 IEC 01 (THW)
450/750 V 70°C solid and stranded conductor PVC insulated, single core
THW Applications:The copper conductors type THW are used for power and lighting circuits in industrial, commercial and residential facilities where it is required of more security, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places; its maximum temperature of operation is of 75 ºC and its voltage of service for all the applications it is 600 V.

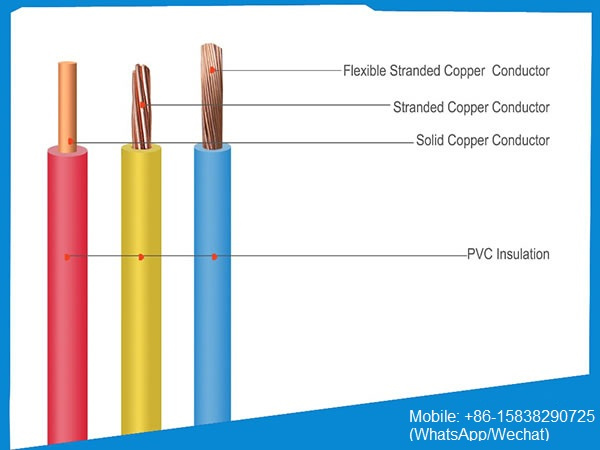

THW Structure:| Conductor | Solid and Stranded annealed copper
Size: 1.5 mm2 up to 400 mm2 |
| Insulation | Polyviny chloride (PVC)
Color: Black, Blue, Red, Brown, Gray, Green/Yellow, any colour |
| Classification | Maximum conductor temperature 70ºC
Circuit voltage not exceeding 750 volt |
| Testing Voltage | 2500 VAC |
| Reference Standard | IEC 60227 |
IEC standard size:Nominal Cross Sectional area
(mm2) | Conductor | Thickness of insulation
(mm) | Overall Diameter | Maximum continuous cuttent rating in free air
(A) | Minumum insulation resistance at 70ºC
(MΩ-km) | Cable weight (approx.)
Kg/Km | Standard length
(m) |
Number of wire
(min) | Diameter Approx.
(mm) | Lower Limit
(mm) | Upper Limit
(mm) |
| 1.5 | 1 | 1.38 | 0.7 | 2.6 | 3.2 | 21 | 0.011 | 22 | 100/C |
| 1.5 | 7 | 1.50 | 0.7 | 2.7 | 3.3 | 21 | 0.010 | 24 | 100/C |
| 2.5 | 1 | 1.78 | 0.8 | 3.2 | 3.9 | 29 | 0.010 | 32 | 100/C |
| 2.5 | 7 | 2.01 | 0.8 | 3.3 | 4.0 | 29 | 0.009 | 35 | 100/C |
| 4 | 1 | 2.25 | 0.8 | 3.6 | 4.4 | 37 | 0.0085 | 49 | 100/C |
| 4 | 7 | 2.55 | 0.8 | 3.8 | 4.6 | 37 | 0.0077 | 50 | 100/C |
| 6 | 1 | 2.76 | 0.8 | 4.1 | 5.0 | 48 | 0.0070 | 75 | 100/C |
| 6 | 7 | 3.12 | 0.8 | 4.3 | 5.2 | 48 | 0.0065 | 80 | 100/C |
| 10 | 1 | 3.57 | 1.0 | 5.3 | 6.4 | 67 | 0.0070 | 120 | 100/C |
| 10 | 7 | 4.05 | 1.0 | 5.6 | 6.7 | 67 | 0.0065 | 130 | 100/C |
| 16 | 7 | 5.10 | 1.0 | 6.4 | 7.8 | 92 | 0.0050 | 180 | 100/C |
| 25 | 7 | 6.42 | 1.2 | 8.1 | 9.7 | 127 | 0.0050 | 280 | 100/C |
| 35 | 19 | 4.59 | 1.2 | 9.0 | 10.9 | 157 | 0.0043 | 380 | 100/C |
| 50 | 19 | 8.90 | 1.4 | 10.6 | 12.8 | 191 | 0.0043 | 500 | 500/D |
| 70 | 19 | 10.7 | 1.4 | 12.1 | 14.6 | 244 | 0.0035 | 700 | 500/D |
| 95 | 19 | 12.6 | 1.6 | 14.1 | 17.1 | 297 | 0.0035 | 1000 | 500/D |
| 120 | 37 | 14.21 | 1.6 | 15.6 | 18.8 | 345 | 0.0032 | 1200 | 500/D |
| 150 | 37 | 15.75 | 1.8 | 17.3 | 20.9 | 397 | 0.0032 | 1500 | 500/D |
| 185 | 37 | 17.64 | 2 | 19.3 | 23.3 | 453 | 0.0032 | 1900 | 500/D |
| 240 | 61 | 20.25 | 2.2 | 22.0 | 26.6 | 535 | 0.0032 | 2500 | 500/D |
| 300 | 61 | 22.68 | 2.4 | 24.5 | 29.6 | 617 | 0.0030 | 3100 | 500/D |
| 400 | 61 | 25.65 | 2.6 | 27.5 | 33.2 | 741 | 0.0028 | 3900 | 500/D |
| C: packing in coil. |
| D: packing in drum. |
450/750 V Stranded Copper Conductor PVC Insulated Wire Thw
THW Specification:SIZE
AWG O
MCM | CROSS SECTION
AL
mm2 | STRANDING
Number of wire x diameter mm. | INSULATION THICKNESS
mm. | EXTERNAL DIAMETER
mm | TOTAL WEIGHT
Kg/Km | AMPACITY
for 1 conductor in free air
Amp. | AMPACITY
for 3 conductors in conduit
Amp. | PACKAGING |
| 14 | 2,08 | 1 x 1,63 | 1,14 | 3,91 | 31,60 | 30 | 20 | A,B |
| 12 | 3,31 | 1 x 2,05 | 1,14 | 4,33 | 44,50 | 35 | 25 | A,C |
| 10 | 5,26 | 1 x 2,59 | 1,14 | 4,87 | 64,40 | 50 | 35 | A,D |
| 8 | 8,34 | 1 x 3,26 | 1,52 | 6,30 | 104,50 | 70 | 50 | A,B |
| | | | | | | | | |
| 14 | 2,08 | 7 x 0,62 | 1,14 | 4,14 | 33,20 | 30 | 20 | A,B |
| 12 | 3,31 | 7 x 0,78 | 1,14 | 4,62 | 46,90 | 35 | 25 | A,C |
| 10 | 5,26 | 7 x 0,98 | 1,14 | 5,22 | 67,50 | 50 | 35 | A,D |
| 8 | 8,37 | 7 x 1,23 | 1,52 | 6,73 | 116,60 | 70 | 50 | A,B,E |
| 6 | 13,30 | 7 x 1,55 | 1,52 | 7,69 | 170,40 | 95 | 65 | A,E |
| 4 | 21,15 | 7 x 1,96 | 1,52 | 8,92 | 255,50 | 125 | 85 | A,E |
| 3 | | 7x2.2 | 1,52 | | | | | |
| 2 | 33,62 | 7 x 2,47 | 1,52 | 10,45 | 388,90 | 170 | 115 | A,E |
| 1 | 42,36 | 7 x 2,78 | 2,03 | 12.4 | 482,90 | 195 | 130 | A,D,E |
| | | | | | | | | |
| 1/0 | 53,49 | 19 x 1,89 | 2,03 | 13,51 | 621,00 | 230 | 150 | D,E,Z |
| 2/0 | 67,43 | 19 x 2,12 | 2,03 | 14,66 | 778,00 | 265 | 175 | D,E,Z |
| 3/0 | 85,01 | 19 x 2,39 | 2,03 | 16,01 | 934,00 | 310 | 200 | D,E,Z |
| 4/0 | 107,20 | 19 x 2,68 | 2,03 | 17,46 | 1159,00 | 360 | 230 | D,E,Z |
| | | | | | | | | |
| 250 | 127,00 | 37 x 2,09 | 2,41 | 19,45 | 1368,00 | 405 | 255 | Z |
| 300 | 152,00 | 37 x 2,29 | 2,41 | 20,85 | 1623,00 | 445 | 285 | Z |
| 350 | 177,00 | 37 x 2,47 | 2,41 | 22,11 | 1876,00 | 505 | 310 | Z |
| 400 | 203,00 | 37 x 2,64 | 2,41 | 23,30 | 2128,00 | 545 | 335 | Z |
| 500 | 253,00 | 37 x 2,95 | 2,41 | 25,47 | 2631,00 | 620 | 380 | Z |
| 600 | 304,00 | 37 x 3,23 | 2,79 | 28,19 | 3174,00 | 690 | 420 | Z |
| 650 | 329,00 | 37 x 3,37 | 2,79 | 29,17 | 3345,00 | 725 | 440 | Z |
| 700 | 355,00 | 37 x 3,49 | 2,79 | 30,01 | 3609,00 | 755 | 460 | Z |
450/750 V Stranded Copper Conductor PVC Insulated Thw Wire
PACKAGING: A: Roll of 100 m B: Reel of 1500 m. C: Reel of 1000 m. D: Reel of 500 m. E: Multiple Reels of 1000 m. Z - Length to the client's requirement.
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
