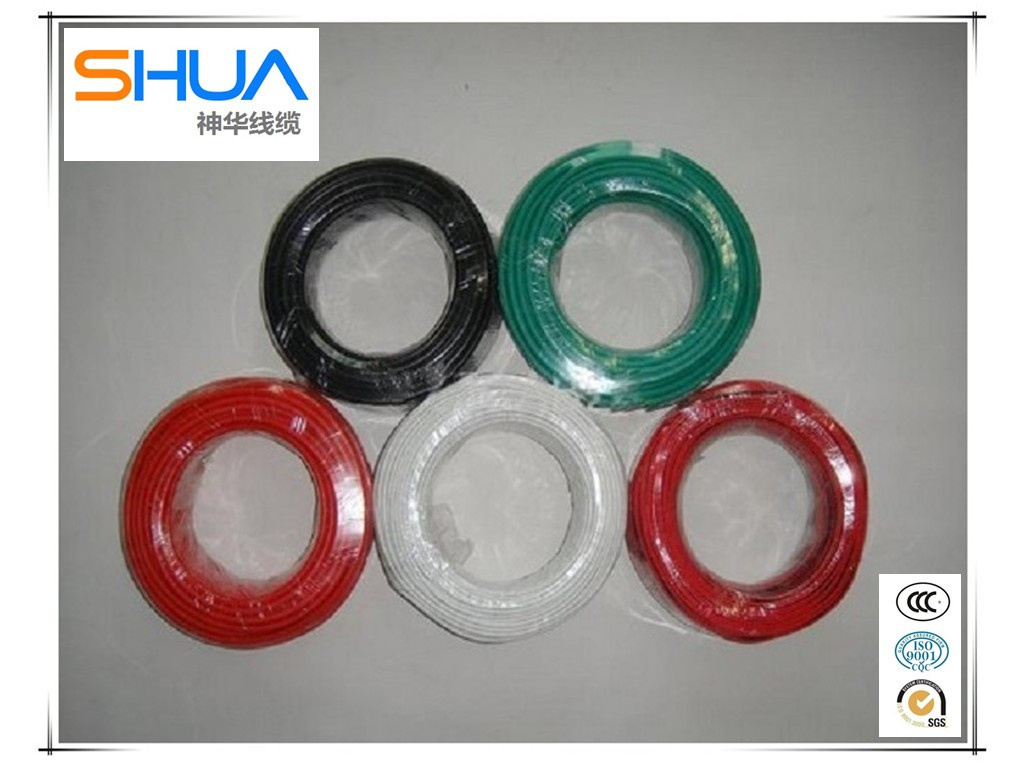

PVC Insulated Copper Electric Wire Electrical Cable Wire

Name: PVC Insulated Copper Electric Wire Electrical Cable Wire
Brand: all-electronics-online.com
SKU: 725140965
Availability: InStock
Rating: 5 (75 reviews)

Price:	US $ 0.5-10/Meter
Trade Terms:	FOB,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MOQ:	100m
Packaging Details:	Wooden Drums or Iron-Wooden Drum
Delivery Detail:	Within 20 Days or Based on Your Quantity
Type:	Insulated
Conductor Material:	Copper
Conductor Type:	Solid
Insulation Material:	XLPE
Application:	Underground
Certification:	CCC

Product Description

1. Application:

This kind of cable could be used in security or alarm device installation or in low voltage applications such as telephone extensions and cirsuits.

2. Standard:

Our products could be designed to comply with IEC standard or CE, DIN, VDE, BS, AS, GB, NZS, GOST, NFC, UL, ANSI standards as customer's request.

3. Product Features:

1) Min. Ambient temperature for installation: -90 ° C
2) Max. Normal continuous operating temperature: 250° C
3) Max. Permissible conductor temperature at short circuit (5s. At longest): 250° C
4) Permissible bending radius:
Single core: ≥ 20(d+D)± 5%
Three core: ≥ 15(d+D)± 5%

No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Thickness of Sheath	Nominal Overall Diameter	Nominal Weight	Nominal Cross Sectional Area	Maximum Diameter of Wires in Conductor	Maximum Resistance of Conductor at 20ºC
No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Thickness of Sheath	Nominal Overall Diameter	Nominal Weight	Nominal Cross Sectional Area	Maximum Diameter of Wires in Conductor	Plain Wires	Metal-Coated Wires
mm²	mm	mm	mm	kg/Km	mm2	mm	ohms/km	ohms/km
2 x 0.50	0.5	0.6	3.10 x 5.00	31	0.50	0.21	39.00	40.10
2 x 0.75	0.5	0.6	3.30 x 5.40	37	0.75	0.21	26.00	26.70

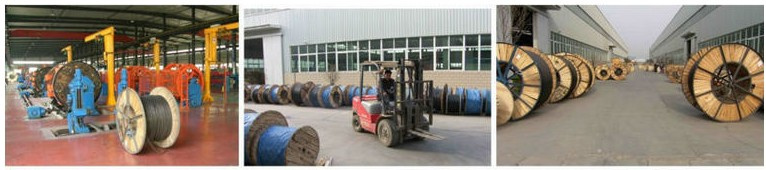

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

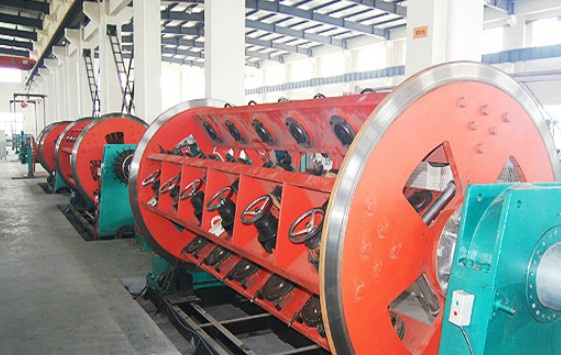

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
