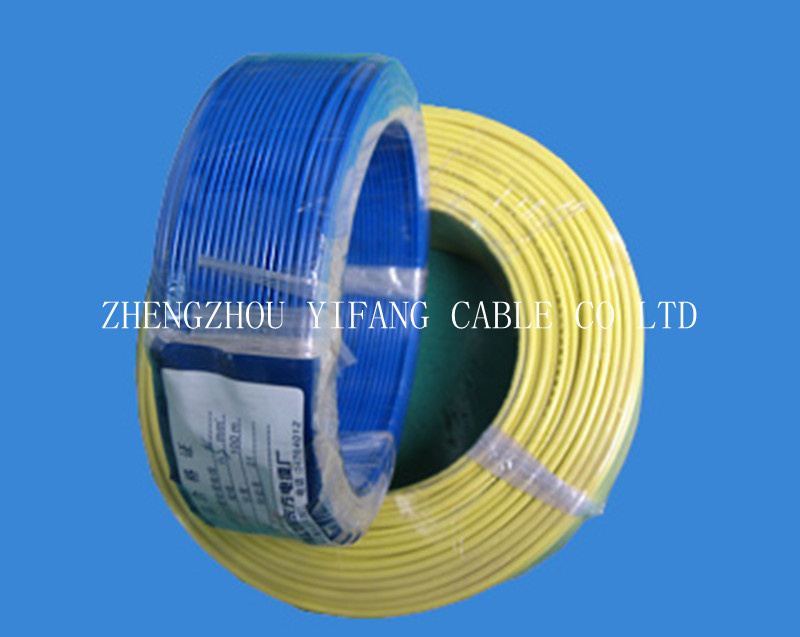

PVC Insulated House Wire 2.5mm2

Name: PVC Insulated House Wire 2.5mm2
Brand: all-electronics-online.com
SKU: 622220872
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	US $ 1meters
Trade Terms:	FOB,CFR,CIF
Min Order:	500meters
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PVC Insulated House Wire 2.5mm2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Your Requirement
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	PVC
Certification:	CCC
Application:	Building Wire
Conductor Material:	Copper or Aluminum
Material Shape:	Round or Flat
Range Of Application:	House Wire
Brand:	Yifang

Product Description

Electric wire
1)PVC Copper Insulation Electrical Cable with Voltage of 300/500V 2)Cross-Section of 1.5mm, 2mm, 4mm, 6mm, etc
Electric wire

1. Rated temperature105oC
2. Rated voltage300V
3. Reference standardUL758, UL1581, CSA C22.2No. 210.2
4. Solid or stranded, tinned or bare copper conductor
5. PVC insulation, comply with ROHS environmental standard
6. PVC covering, comply with ROHS environmental standard
7. Passes UL VW-1, CSA FT1 and JQA F-Mark flame test
8. Uniform insulation thickness to ensure easy stripping and cutting
9. For general purpose internal wiring of appliance
RV flexible electric cable and PVC insulated electrical wire
Applicable to the rated voltage 450/750 V and below equipment and electrical instrumentation, extensive use in daily life.

Class 2 stranded conductors for single-core and multi-core cables
1	2	3	4	5	6	7	8	9	10
Nominal crosssectional area	Minimum number of wires in the conductor						Maximum resistance of conductor at 20ºC
	Circular		Circular compacted		Shaped		Annealed copper conductor		Aluminium or aluminium alloy conductor
	Cu	Al	Cu	Al	Cu	Al	Plain wires	Metal-coated wires	Aluminium or aluminium alloy conductor
mm2	Cu	Al	Cu	Al	Cu	Al	Ω/KM	Ω/KM	Ω/KM
0.5	7						36	36.7
0.75	7						24.5	24.8
1	7						18.1	18.2
1.5	7		6				12.1	12.2
2.5	7		6				7.41	7.58
4	7		6				4.61	4.7
6	7		6				3.08	3.11
10	7	7	6	6			1.83	1.84	3.08
16	7	7	6	6			1.15	1.16	1.91
25	7	7	6	6	6	6	0.727	0.734	1.2
35	7	7	6	6	6	6	0.524	0.529	0.868
50	19	19	6	6	6	6	0.387	0.391	0.641
70	19	19	12	12	12	12	0.268	0.27	0.443
95	19	19	15	15	15	15	0.193	0.195	0.32
120	37	37	18	15	18	15	0.153	0.154	0.253
150	37	37	18	15	18	15	0.124	0.126	0.206
185	37	37	30	30	30	30	0.0991	0.1	0.164
240	37	37	34	30	34	30	0.0754	0.0762	0.125
300	61	61	34	30	34	30	0.0601	0.0607	0.1
400	61	61	53	53	53	53	0.047	0.0475	0.0778
500	61	61	53	53	53	53	0.0368	0.0369	0.0605
630	91	91	53	53	53	53	0.0283	0.0286	0.0469
800	91	91	53	53			0.0221	0.0224	0.0367
1000	91	91	53	53			0.0176	0.0177	0.0291

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
