PVC Insulated Power Cable and Fire Resistant Cable

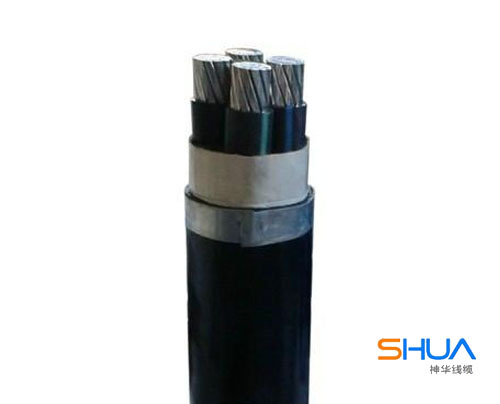

Name: PVC Insulated Power Cable and Fire Resistant Cable
Brand: all-electronics-online.com
SKU: 732219365
Availability: InStock
Rating: 4.9 (111 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NH-VV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Bare
Conductor Type:	Stranded
Color:	as Your Requests
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	AC Cable
Application:	Power Station
Certification:	CE

Product Description

Specifications
NH-VV PVC power cable/0.6/1KV VV power cable, Manufacturer of low voltage /PVC Insulting Sheath Fire
Conductor pure copper
NH-VV PVC power cable/0.6/1KV VV power cable, Manufacturer of low voltage /PVC Insulting Sheath Fire

1. Conductors: Copper or aluminum.
2. Both armored and non-armored type power cables are available.
3. Voltage rating: 0.6/1kV.
4. PVC or PE sheathed.
5. Number of cable cores: One core (Single core), two cores(Double cores), three cores,
Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6. Standards: Chinese national standard GB 12706 and GB 12666.6(equivalent to IEC 60502 and IEC 60331)
IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.

1. Application:
This PVC Power Cable is suitable for fixed laying in power transmission with A. C rated voltage 0.6/1KV.

Model	Name
VV	Copper conductor PVC insulation PVC sheath Power Cable
NH-VV	Copper conductor PVC insulation PVC sheath Fire resistant Power Cable

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
