PVC Insulated Power Cable with High Voltage 0.6/1kv Non-Armored

Name: PVC Insulated Power Cable with High Voltage 0.6/1kv Non-Armored
Brand: all-electronics-online.com
SKU: 795334985
Availability: InStock
Rating: 4.4 (136 reviews)

Price:	US $ 2.5-15/Meter
Min Order:	3000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Cu/PVC/PVC
Standard:	IEC 60227, BS 6004, VDE0281, GB/T 5023, Jb/T8734
Application:	Lighting
Voltage:	High Voltage Cable
Current:	AC Cable
Insulation Material:	PVC
Certification:	RoHS
Model:	Nyy, VV
Brand:	N/a

Product Description

PVC Insulated Power Cable with High Voltage 0.6/1kV Non-armored

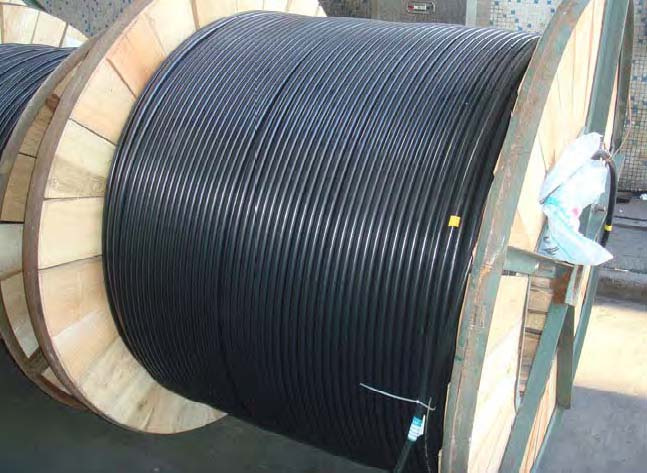

Cu/PVC/PVC		Package Photo:
Type	NYY, VV
Voltage Rate		0.6/1kV
Cores		1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E
Range of Nominal cross section:		1.5 mm2 ~ 630 mm2
Application	It applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground(when well protect in ducts, in trenches and in steel support brackets.)
Standard	IEC60502, BS7870, GB/T12706
Constructions	Conductor: Class 1/2 annealed bare copper solid or strands Insulation: PVC Sheath: PVC
Max. Operating Temperature		70ºC, can be 90ºC and 110ºC as per requirement
Packing	Wooden drum or as per requirement
Production Capacity		30 kilometer/ day
MOQ	5000 meters for small size, 1000 meters for big size
Delivery time	10~15 working days
Remark	The cable can be of flame retardant, fire resistance and environment friendly or other property.
