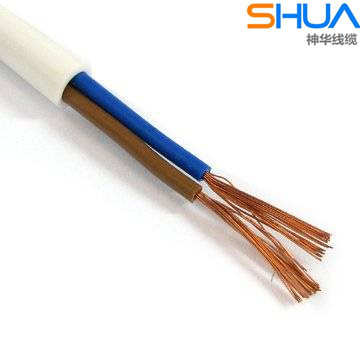

PVC Insulation PVC Sheath Copper Conductor Rvv Flexible Power Cable

Name: PVC Insulation PVC Sheath Copper Conductor Rvv Flexible Power Cable
Brand: all-electronics-online.com
SKU: 734468885
Availability: InStock
Rating: 4.4 (54 reviews)

Price:	US $ 0.5-10/Meter
Trade Terms:	FOB,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	rvv
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Your Requirements
MOQ:	100m
Delivery Detail:	Within 20 Days or Based on Your Quantity
Packing Detail:	Fumigated Wooden Drums or Iron-Wooden Drums
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	AC Cable
Application:	Car
Certification:	CCC

Product Description

Applications:
Working as connecting and control cable under dry or wet indoor situation, especially for kinds of electronic installation of industrial condition. The cable cross section area 0.5mm2 or upper could work as control and connecting cable in machine tool manufacture, whole set equipment, installation, power station, belching and air conditionor installation, For its special flexibility, it could also work in installation or fixation.
Propeties;
For PVC ' high mechnical property, excellent insulation, good chemistry stability, water resistance, coloured core identification cable has more excellent capability and safety service.

Structure:
Condutor: Copper acc. To VDE0295 CLASS5
Insulation: Special PVC
Color: Below 0.5mm signed acc. DIN47100
Above0.5mm black no. With white series no.
If more 3 cores, with yellow and green earth cables.
Inner Liner: PP tape or non-woven for buffer
Sheath: 70C pvc, BLACK(RAL9005)OR GREY(RAL7001)
Standards: JB8734.4-1998 GB5023.7-2008
Technical data:
Minimum bending radius: Fixed installation: 15xouter diameter
Flexing Installation: 6xouter diameter
The working temperature: Flexing installation: -10c-70c
Fixed installation: -30c-70c
Test votage: Below 0.5mm 2000v
Above 0.5mm 2500v
Working votage: Below 0.5mm 300/300v
Above 0.5mm 300/500v
Optional: Flat cable
