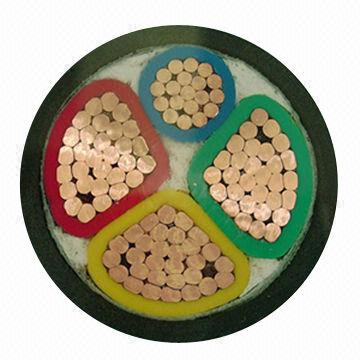

PVC Power Cable (Low Voltage)

Prod Model:	PVC Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	PVC Power Cable(Low Voltage)
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	DC Cable
Application:	Construction
Certification:	ISO

Product Description

PVC Power Cable(Low Voltage)

Applications: PVC-insulated power cable and fire-resistant cable are suitable for fixed laying in power transmission and distribution lines with AC 50Hz and voltage rating of up to or including 6kV

Construction:

Conductor: Copper, class1 or 2

Insulation: PVC

Filler: PP filler or PVC filled

Sheath: PVC, PE or HDPE

Performance characteristics:

Long-term permissible operation temperature of conductor shall not be higher than 70° C

Conductor maximum short circuit (not more than 5 seconds) temperature shall not be higher than 160° C

Cable is not limited by drop in level when being laid, and the environment temperature shall not be 0° C

Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents and flame retardant Lightweight, perfect bending properties, installed and maintained easily and conveniently
Voltage rating: 0.6/1kV, 3.6/6kV

Standards: IEC, BS, DIN, ASTM, CSA, NFC, AS and more

Other special characteristics: Designs and manufacturer according to customers' request
