| Prod Model: |
ZS-ABC16-5-138 |
| Specification Type: |
ABC-016mm |
| Core Material: |
Aluminium Wire |
| Voltage Type: |
Low Voltage, Medium Voltage |
| Manufacturer: |
6 Years |
| OEM/ODM: |
Ok |
| Delivery Time: |
7 Workdays |
| Product Name: |
ABC Cable |
| Application: |
Telecommunication |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Certification: |
TUV |
| Insulation Material: |
PVC/PE/XLPE |
| Sheath Material: |
XLPE |
| Model: |
Zs-ABC16-5-138 |
| Brand: |
Dayuan |
Product Description

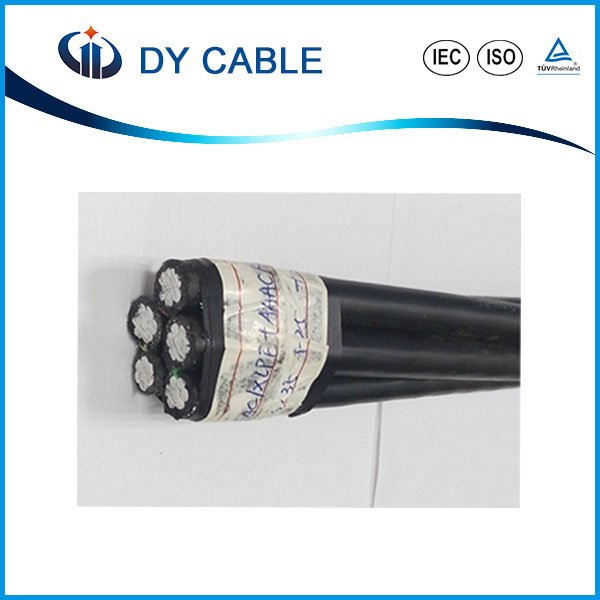

PVC/XLPE Overhead Power Aluminum Conductor Aerial Bundle Cable
Standards:
GB12527-91,IEC502, BS7870-5
Other standards such as BS,DIN and ICEA upon request
Constructions:
Conductor: Round, stranded and compacted aluminum conductor
Insulation: HDPE, XLPE, PVC
Application:
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. It is preferred to use of ABC cables instead of uninsulated conductors at low voltage networks. ABC cables are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages. Bundles can include one or two additional conductors for public lighting and control pair.
Specifications:
Cross Section of Conductor
(mm2) | Min.Nos. of Wires for Conductor
(mm) | Insulation Thickness
(mm) | Average Max. O.D.per Single-core
(mm) | Max.Conductor Resistance at 20ºC
(Ω/km) | Min Insulated Resistance at Rated Working Temperature
(MΩ.km) | Cable Tensile Breaking Force |
| | |
| 2x10 | 6 | 1.00 | 6.5x13.0 | 3.08 | 0.0067 | 0.67 | 1650 |
| 2x16 | 6 | 1.20 | 8.0x16.0 | 1.91 | 0.0065 | 0.65 | 2512 |
| 2x25 | 6 | 1.20 | 9.4x18.8 | 1.2 | 0.0054 | 0.54 | 3762 |
| 2x35 | 6 | 1.40 | 11.0x22.0 | 0.868 | 0.0054 | 0.54 | 5177 |
| 2x50 | 6 | 1.40 | 12.3x24.6 | 0.641 | 0.0046 | 0.46 | 7011 |
| 2x70 | 12 | 1.40 | 14.1x28.2 | 0.443 | 0.004 | 0.4 | 10354 |
| 2x95 | 15 | 1.60 | 16.5x33.0 | 0.32 | 0.0039 | 0.39 | 13727 |
| 2x120 | 15 | 1.60 | 18.1x36.2 | 0.252 | 0.0035 | 0.35 | 17339 |
| 2x150 | 15 | 1.80 | 20.2x40.4 | 0.206 | 0.0035 | 0.35 | 21033 |
| 2x185 | 30 | 2.00 | 22.5x45.0 | 0.164 | 0.0035 | 0.35 | 26732 |
| 2x240 | 30 | 2.20 | 25.6x51.2 | 0.125 | 0.0034 | 0.34 | 34679 |
| 4x10 | 6 | 1.00 | 6.5x26.0 | 3.08 | 0.0067 | 0.67 | 1650 |
| 4x16 | 6 | 1.20 | 8.0x32.0 | 1.91 | 0.0065 | 0.65 | 2512 |
| 4x25 | 6 | 1.20 | 9.4x37.6 | 1.2 | 0.0054 | 0.54 | 3762 |
| 4x35 | 6 | 1.40 | 11.0x44.0 | 0.868 | 0.0054 | 0.54 | 5177 |
| 4x50 | 6 | 1.40 | 12.3x49.2 | 0.641 | 0.0046 | 0.46 | 7011 |
| 4x70 | 12 | 1.40 | 14.1x56.4 | 0.443 | 0.004 | 0.4 | 10354 |
| 4x95 | 15 | 1.60 | 16.5x66.0 | 0.32 | 0.0039 | 0.39 | 13727 |
| 4x120 | 15 | 1.60 | 18.1x72.4 | 0.252 | 0.0035 | 0.35 | 17339 |
| 4x150 | 15 | 1.80 | 20.2x80.8 | 0.206 | 0.0035 | 0.35 | 21033 |
| 4x185 | 30 | 2.00 | 22.5x90.0 | 0.164 | 0.0035 | 0.35 | 26732 |
| 4x240 | 30 | 2.20 | 25.6x102.4 | 0.125 | 0.0034 | 0.34 | 34679 |
Our Services:
Luoyang Da Yuan Cable Factory Co., Ltd., a professional wires and cables manufacturer for 6 years in China. Da Yuan attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.
1. Factory: 200,081 square meters, available for OEM&ODM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: CCC,ISO9001, CQC, etc;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Company Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.
We are welcome all the clients to visit our factory!
Contact:
Zach Sun
Department sale manager
International Trade Department
Luoyang Asian Sun Industrial Group Co., Ltd
=================================
Tel: +86-379-69991587
Mobile: + 86-18336783860
Web: http://www.yr-group.cn
Alibaba Showroom: http://lyyari.en.alibaba.com/
=================================
Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.
Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
