PWM Input Voltage DC18V-30V 360watt Output DC to DC Power Converter
| Price: |
US $ 22.33-25.33/Piece |
| Trade Terms: |
EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
DXP-30A |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Input Voltage Range: |
DC18V-30V |
| Output Voltage: |
DC12V |
| Output Current: |
30A |
| Low Voltage Protection: |
|
| Voltage Regulation Factor: |
1% |
| Type: |
DC/DC Converters |
| No Load Power: |
<3W |
| Load Regulation Factor: |
3% |
| Size: |
134mm*80mm*50mm |
| Weight: |
0.7kg |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Application: |
Audio |
| Cooling Method: |
Free Air Convection |
Product Description

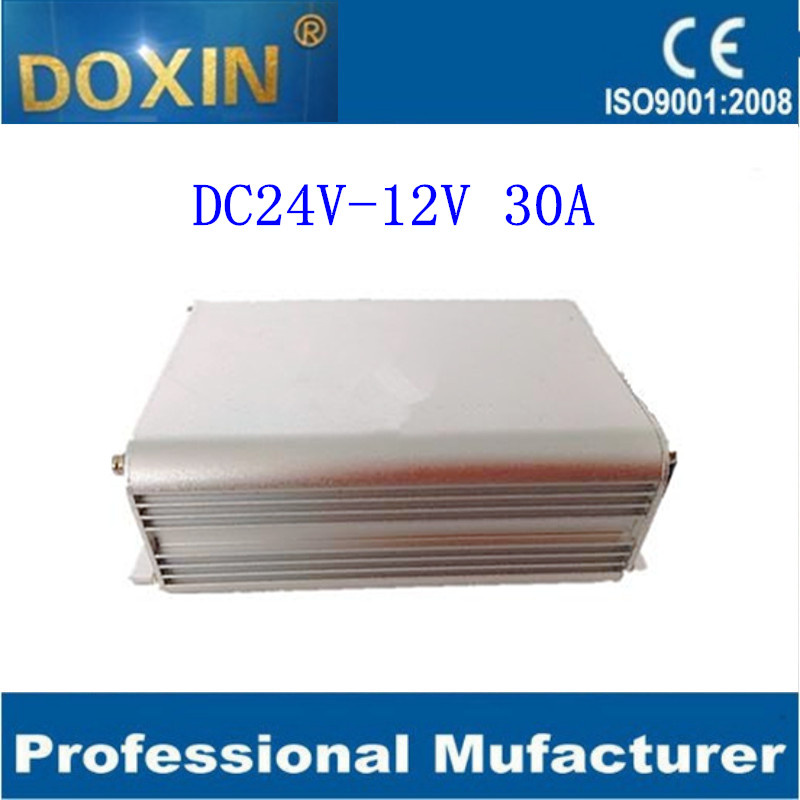

PWM input voltage DC18V-30V 360watt output DC to DC power converter
Specification:
Input voltage: DC24V
Input voltage range: DC18V-30V
Output voltage: DC12V
Output current: 30A
Output power rated: 360W
Low voltage protection:
DC18V power recover
No load power: <3W
Efficiency: Full load 95%, half load 97%
Voltage regulation factor: 1%
Load regulation factor: 3%
Feature:
High conversion efficiency
Short-circuit protection
Over-current protection
Over-temperature protection
All potting waterproof design
Size: 134mm*80mm*50mm
External diameter: 4mm
Weigh: 0.7g
Color: Silver
OEM services:
1. Logo please offer us your own high resolution logo in JPG format, there should be two colors at most in the logo and there should be no gradient effect in the logo.
2. Label please offer your own model numbers
3. Manual please off us the finished manual file that can be printed directly.
4. Packing box we will offer you the demension and the design file. Please design your own style based on the file then send it back to us. We will print some samples for your checking.
Payment Terms:
1. T/T bank, Western Union, Money Gram
2. We will arrange the products and shipment within 3-7 working days after receive the payment.
Lead time:
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Big orders will be delivered from our factory within 15-25 working days at most.
Shipment:
1. By EMS, DHL, FedEx, TNT, UPS or the other express.
2. By our forwarding agent( by air or by sea )
3. By your own forwarding agent
4. By domestic forwarding agents to any city in China.
|
Model NO. |
DXP-30A |
|
Input voltage range |
DC18V-30V |
|
Output voltage |
DC12V |
|
Output current |
30A |
|
Output power |
360W |
|
Type |
DC DC converter 30A |
|
Load regulation |
0.2% |
|
Voltage accuracy |
1.5% |
|
Enclosures |
IP68 |
|
Cooling |
Free air convection |
|
Efficiency type |
95% |
|
Ripple and noise type (mVp-p) |
120 |
|
Waterproof sealed |
Yes |
|
Warranty |
12 Months |
