| Prod Model: |
BZC-48V-100A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Apply For: |
Solar System |
| Battery Voltage: |
48V Series |
| Display: |
LCD |
| Terminal: |
UK Series |
| RS232: |
Optional |
| Task: |
Adjust |
| Structure: |
Combination |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Function: |
Measurement |
| Certification: |
CE |
| Condition: |
New |
| Customized: |
Customized |
| Material: |
Iron Plastic Box |
Product Description

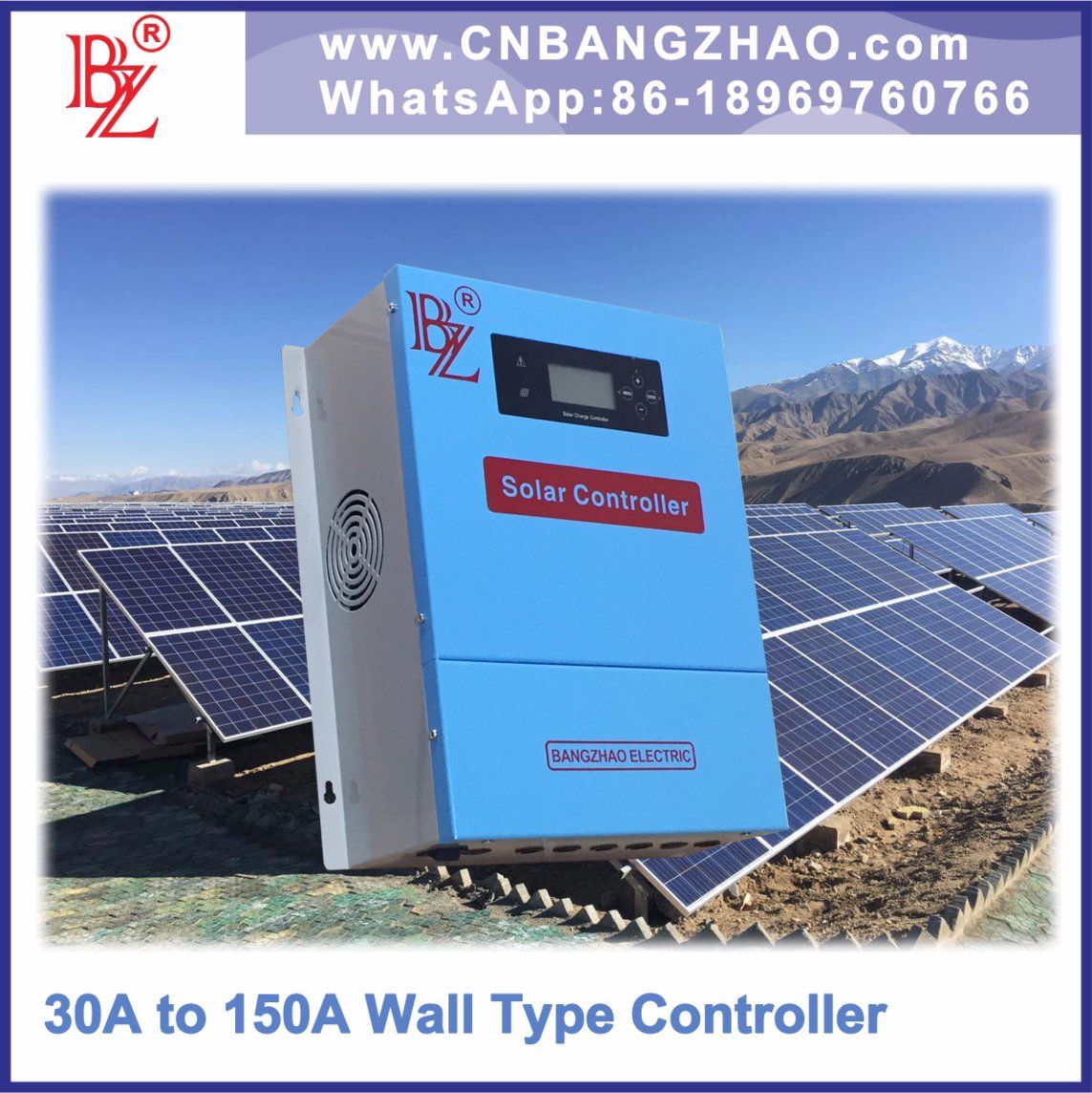

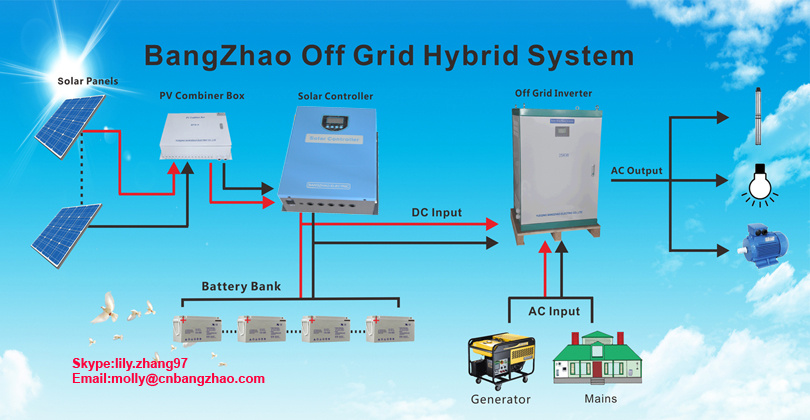

PWM Solar Charging Controller for 5kw Power Inverter System
n Control using common positive polarity way
n Accept 2 lines input of solar module arrays
n Digital and module structure designed
n LCD equipped (backlight) to show parameters of system running status
n High efficiency with by PWM charging method
n Anti-reverse connection, no charging reversely while night. And over-charge, limited charging current &voltage protections for battery
n Equipped with system abnormal status alarm function
n Users can to adjust the system parameters by setting keys
n Equipped with data communication function (optional)
n Be able to offer DC power supply (optional)
n Day and night double processing mode
n Wall mounting type is easy to installatio
n
| Model | BZC48V-100A | BZC48V-150A | BZC48V-200A |
| Max. power of solar panel | 4.8KW | 7.2KW | 9.6KW |
| Rated charging current | 100A | 150A | 200A |
| Rated battery voltage | 48VDC |
| Electrical Performance Information |
| PWM charging model | Constant current charging, Equalization charging and Float charging |
| Equalization charging voltage | 57.6V (Adjustable) |
| Float charging voltage | 54.0V (Adjustable) |
| VOC voltage of solar panel | ≤50V |
| Standby consumption in night | ≤80mA |
| Working temperature range | -25ºC~+60ºC |
| Humidity | 0%~98%, NC |
| Communication | RS485 (Optional) |
| Others |
| Connection terminal type | TC Series Barrier Terminal |
| Display | LCD (128*68 lattice, white backlight) |
| Language | English |
| Protection class | IP20 (Indoor) |
| Noise | <30dBA |
| Mounting way | Wall mounting |
| Dimension | 345*395*155mm (Refer to the actual size) |
| Weight | 12KG (Refer to the actual weight) |
Above parameter only for reference ,could be custom made to user specifications.
FAQ:
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,

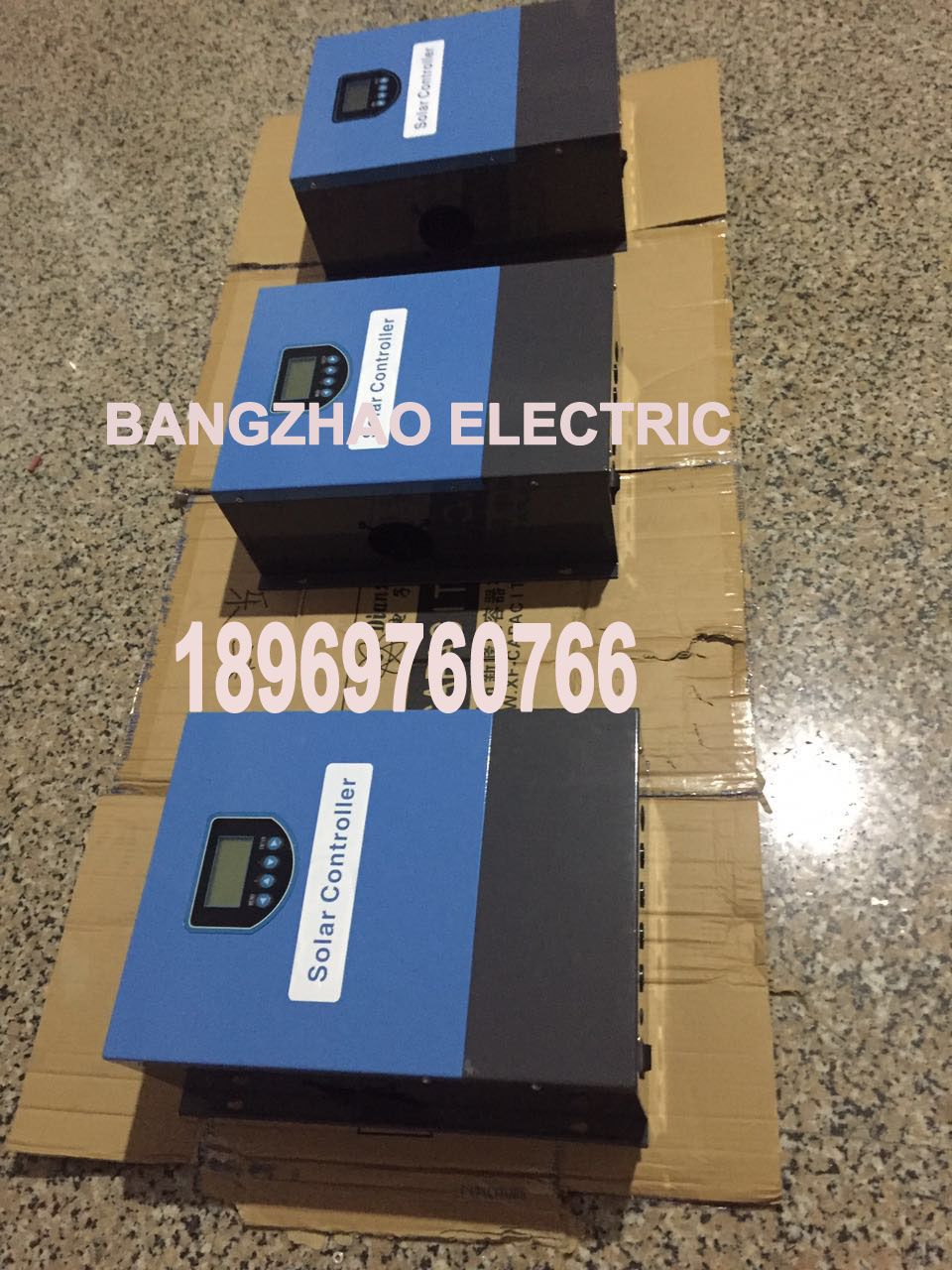

Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q8. What is the warranty period ?
A. Normally 1 year .
OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
Yueqing Bangzhao Electric Co., Ltd. is specialized in the field of power research and development, production and service. In all varieties, high quality, excellent service is recognized by the vast number of customers, the company R & D products basically covers the best product, they represent the highest level in the world manufacturing power. The main products are: Photovoltaic grid connected inverter, wind grid tied inverter, pure sine wave inverter, high frequency off grid inverter, low frequency off grid inverter, photovoltaic water pumping inverter, single-three phase converter, voltage converter, solar charger controller, photovoltaic lightning protection confluence box, PV combiner box, controller-inverter one machine, wind-solar hybrid controller, VLF high voltage generator and so on. The company products in the fire, building, industry, new energy, civil, financial, taxation, power medical, aviation, military industry, automation control system, the construction of national key projects, are widely used in various fields.
According to state electric company to maintain long-term good cooperation, R & D and leading universities with science and technology, the introduction of absorbing international advanced technology, establish a strict quality control system.
We will uphold the principle of "unremitting exploration, and strive to innovation, integrity and dedication, aestheticism is the only" objective "quality policy, standard management, careful manufacturing, quality first, dedicated service". The pursuit of excellence, innovation and value!
We will make unremitting efforts, with you to create brilliant.
