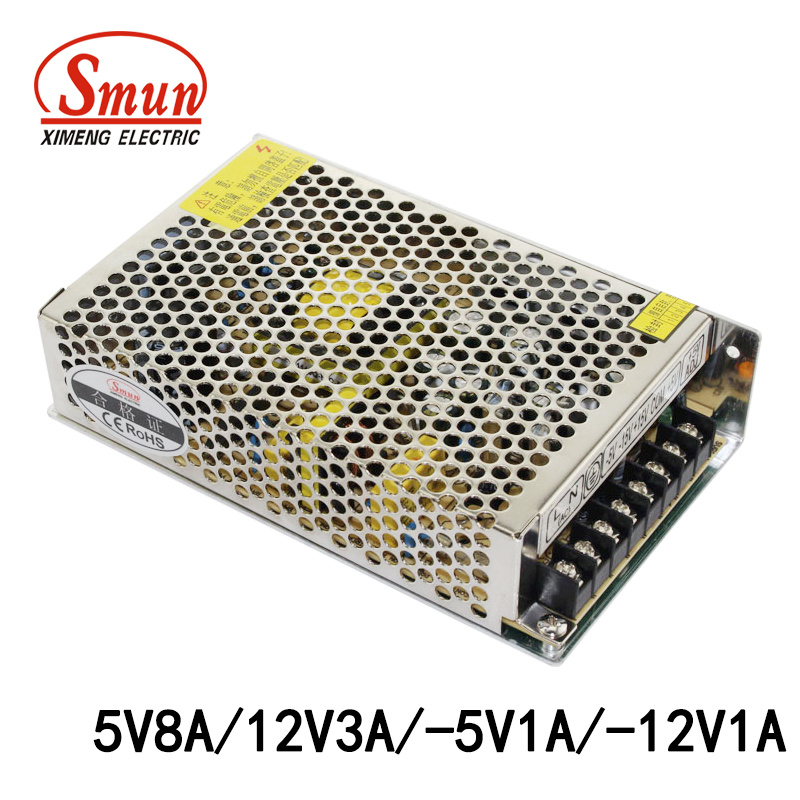

Q-60b 5V8a 12V3a -5V1a -12V1a Quad Output Switching Power Supply

Q-60b 5V8a 12V3a -5V1a -12V1a Quad Output Switching Power Supply
Price: US $ 8-11/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Q-60B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 159*97*38mm
Power: 60W
Input: 90-264VAC 120-370VDC
Output: 5V8a/12V3a/-5V1a/-12V1a
Weight: 0.6kg
Working Temperature: -10~+60 Degree C
Efficiency: 70%
Protection: Overload Over Voltage Short Circuit
OEM/ODM: Available
Customization: Available
Output Type: Quad
Warranty: 2 Years
Output Power: 51 - 100W
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Brand: Smun

Product Description

Our company is a high-tech company specialized in designing. R&D. Production and sale,
The products"Switching Power Supply" are with the characteristics of the low price,
High efficiency, high reliability, long lifetime and so on. Our products are widely used
In industrial automation field, indoor and outdoor LED lighting, LED lighting projects,
Communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded
Product to replace traditional controlling transformer.

The design of this series of products is in accordance with such international standards
As American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.

Our Switching Supply have many series:

Single output Switching Power Power Supply
Dual output Switching Power Supply
Triple output Switching Power Supply
Quad output Switching Power Supply
DIN-rail Switching Power Supply
LED driver Switching Power Supply
DC Power Supply Series

Also we can design and produce according to your need.
Welcome to contact us anytime.
Q-60W  Quad  output  switching  power  supply

Model  NO.

OUTPUT

Tolerance

range

efficiency
Q-60B5V, 0.5-8A
12V, 0.1-3A
-5V, 0-1A
-12V, 0-1A
± 2%
± 6%
± 5%
± 5%
100mV
120mV
100mV
120mV
70%
Q-60C5V, 0.5-8A
15V, 0.1-3A
-5V, 0-1A
-15V, 0-1A
± 2%
± 8%
± 5%
± 5%
100mV
120mV
100mV
120mV
72%
AC  input  voltage  range90-264vac  47-63hz  120-370vdc
input  current2A/115V  1A/230V
AC  inrush  currentCold-start  current  18A/115V  36A/230V
Leakage  current< 1mA/240VAC
DC  adjustable  range± 10%  rated  output  voltage
over  load  protection105-150%cut  down  output,   auto-recovery
over-voltage  protection115-135%
set  up,   rise, hold  up  time: 800ms, 20ms  70ms/230VAC
withstand  voltage: I/P-O/P: 1.5KVAC  1Minutes
I/P-FG: 1.5KVAC  1MInutes
O/P-FG: 0.5VAC  1minutes
working  temperature-10~+60° C, 20-90%RH
weight/packing: 0.56kg, 40pcs/22.4kg
MaterialAluminum
Size159*98*38M  M
certificateCE    ISO9000  ROHS
Warranty  year2  years
ProtectionsShort  circuit  /  Over  load  /  Over  voltage
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
