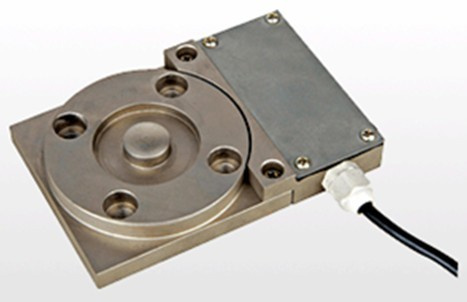

QDT-4 800kg High Precision Elevator Sensor

QDT-4 800kg High Precision Elevator Sensor
Price: US $ 90/Piece
Min Order: 5/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: QDT-4
Usage: Elevator

Product Description

Model:QDT-4

Characteristics:2,3,5,10t

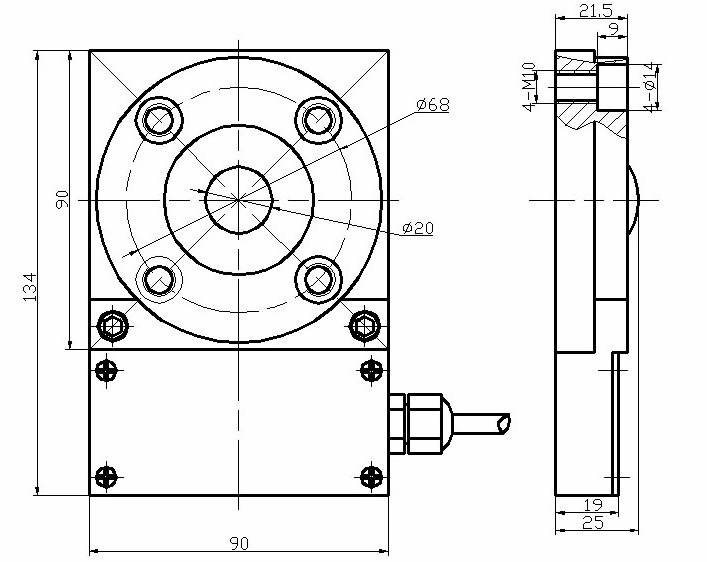

Electrical connection and Dimensions:(dimension unit:mm)




Technical Specification:

Capacity

t

2,3,5,10

Sensitivity

mV/V

1.0±0.02

combined error

%FS

±0.5

±1

Linearity

%FS

±0.5

±1

Hysteresis

%FS

±0.5

±1

Repeatability

%FS

±0.2

±0.3

Creep

%FS/30min

±0.2

±0.3

temperature coefficient of ZERO

%FS/10°C

±0.03

temperature coefficient of SPAN

%FS/10°C

±0.05

±0.1

Zero output

%FS

±1

Ultimate overload

%FS

150

Input resistance

Ω

390±20

Output resistance

Ω

350±10

Insulation resistance

M Ω

> 5000 ( 50 Vdc)

Excitation voltage

V

10(DC)

Max. excitation voltage

V

15(DC)

Operating temperature range

°C

-20 ~ +60

Compensated temperature range

°C

-10 ~ +40

Seal grade

IP

67

Electrical connection

Four-core -6 mm,
gray-shielded cable with sheath:10m
Excitation+ red     Signal+ green
Excitation- black       Signal-white

Ordering code: model-range-rated output-accuracy-grade- the length of cable
              Example: QDT-4-800kg-1.0mV/V-0.5%FS-IP65-10m

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
