Qp-87A Water or Oil Pressure Transmitter

Name: Qp-87A Water or Oil Pressure Transmitter
Brand: all-electronics-online.com
SKU: 773901725
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 65/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-87A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measure Range:	-100-0kpa,0-5kpa,0-500kpa,0-100 MPa
Accuracy:	0.25%Fs
Output Signal:	4~20mA;0~10V, 1~5V, 0~5V, 0~20mA
Power Supply:	12~36(Standard 24VDC)
Application:	Measuring The Gases and Liquid
Measuring Medium:	Gas and Liquid

Product Description

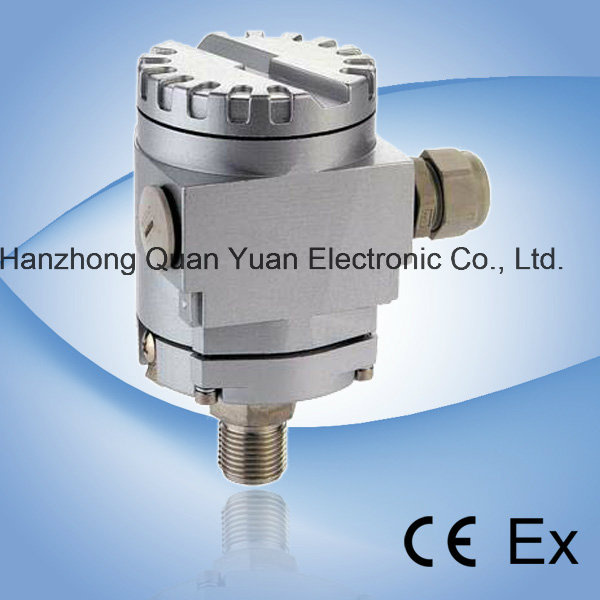

Qp-87A Water or Oil Pressure Transmitter

Model:QP-87A

Characteristics:

QP-87A water or oil pressure transmitter is consisting of Piezoresistive silicon oil-filled sensors with membrane and special integrated circuit for manometers. Have characteristics of high precision, good stability, long life, high reliability and easy to fix.

Feature:

1. High accuracy and good stability

2. Have characteristics of high precision, good stability, long working life, high reliability and easy to fix.

3. be able to measure two types pressure: Gauge pressure and Absolute pressure

4. Used for measure the pressure of air or liquid.

5. Cheap and low cost of maintenance

Dimensions: (unit: mm)

Technical Specifications:

Measuring media	Gases or liqiuds which are compatible to 316L stainless steel
Gauge pressure range	Kpa (G)	0~3,6,10,16,25,40,60,100,160,250,400,600
Gauge pressure range	Mpa (G)	0-1,1.6,2.5,6,10,20,40,60,100
Absolute pressure range	Kpa (A)	-100~0~100,200,400,600
Absolute pressure range	Mpa (A)	-0.1~1~1.6,2.5,4,6,10,16,20,25,30,35,60,100
Signal output	transmitter, mA (2 wires)	4~20,0~10(selectable)
Signal output	transmitter, Vdc (3 wires)	0~5, 1~5(selectable)
Accuracy	%FS	0.5, 0.25(standard), 0.1
Power supply	Vdc	12~36(standard24VDC)
Compensated temp.	ºC	0~+70
Operating temp.	ºC	-20~+80
Long stability	%FS/year	≤±0.2
Temp. coefficient of ZERO	%FS/10ºC	≤±0.5
Temp. coefficient of SPAN	%FS/10ºC	≤±0.5
Insulation resistance	MΩ	>500 @ 100Vdc
Pressure connection	M20×1.5 or M12×1, G1/2 Or user's choose
Environmental protection	IP	65
safe overload	%FS	200
Ultimate overload	%FS	300

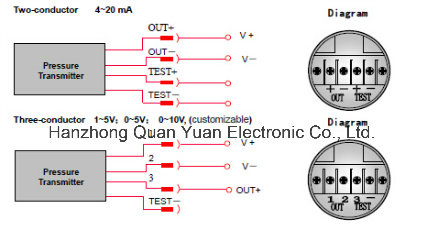

Electrical connection:

Ordering code: model- range&type-rated output-accuracy-pressure connection-electrical connection-defend grade-the other requests.

Example: QP-83A-0/300KPaG-4/20mA-0.5%FS-M20x1.5-DIN43650-IP65-***
