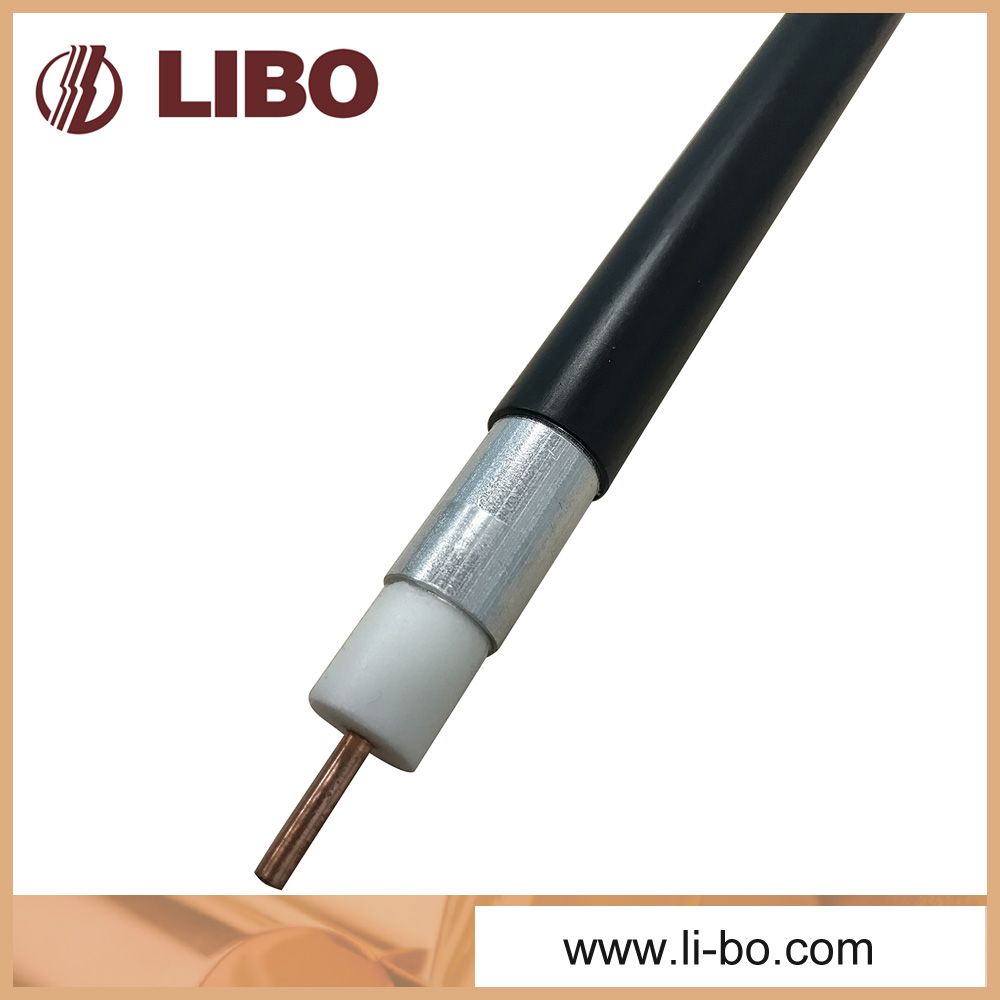

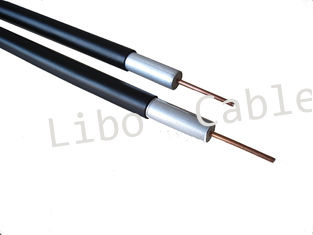

CATV Trunk Cable For Signal Transmission QR500 without Messenger Welded Aluminum Tube Cable
Quick Details:
? QR500 JCA Welded Alumium Trunk Cable
? Welded aluminum tape as outer conductor
? High quality PE outer jacket
? Asphalt or flooding compound is available
Product description:
The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, welded aluminum sheet as shield. Medium density PE is used as jacket material.
Applications:
QR500JCA trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.
Physical dimensions |
component |
inches |
mm |
Inner conductor |
0.109 |
2.77±0.3 |
diameter over dielectric |
0.450 |
11.43 |
diameter over outer conductor |
0.4740 |
12.04 |
Outer conductor thickness |
0.012 |
0.305 |
Diameter over jacket |
0.560 |
14.22 |
Jacket wall thickness |
0.030 |
0.76 |
Mechanical performance:
Minimum bending radius: 6.0 inches/15.2cm
Maximum pulling tension: 300lbs /136kgf
Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Maximum D.C resistance @68OF:
Structure Return loss: 24dB
Inner conductor: 1.35ohms/1000ft (4.43ohms/km)
Outer conductor: 0.37ohms/1000ft (1.21ohms/km)
Loop: 1.72 ohms/1000ft. (5.64 ohms/km)
Attenuation@ 68OF(20oC):
@Frequency MHZ |
dB/100ft. (MAX.) |
dB/100 meters(MAX.) |
5MHZ |
0.16 |
0.52 |
55MHZ |
0.54 |
1.77 |
83MHZ |
0.66 |
2.17 |
211MHZ |
1.09 |
3.58 |
250MHZ |
1.20 |
3.94 |
300MHZ |
1.31 |
4.30 |
350MHZ |
1.43 |
4.69 |
400MHZ |
1.53 |
5.02 |
450MHZ |
1.63 |
5.35 |
500MHZ |
1.73 |
5.67 |
550MHZ |
1.82 |
5.97 |
600MHZ |
1.91 |
6.27 |
750MHZ |
2.16 |
7.09 |
865MHZ |
2.34 |
7.68 |
1000MHZ |
2.52 |
8.27 |
Packing:
Buyer's labels OEM/ODM design service is available.
Competitive Advantage:
The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
