QS30t Load Cell Sensor Price

Name: QS30t Load Cell Sensor Price
Brand: all-electronics-online.com
SKU: 812835735
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	US $ 40-200/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QS 10T-30T
Usage:	Pressure Sensor
Output:	Switching Transducer
Theory:	Resistance Sensor
Sensitivity:	2.0±0.002mv/V
Materials:	Alloy Steel/ Stainless Steel
Rated Load:	5t~50t

Product Description

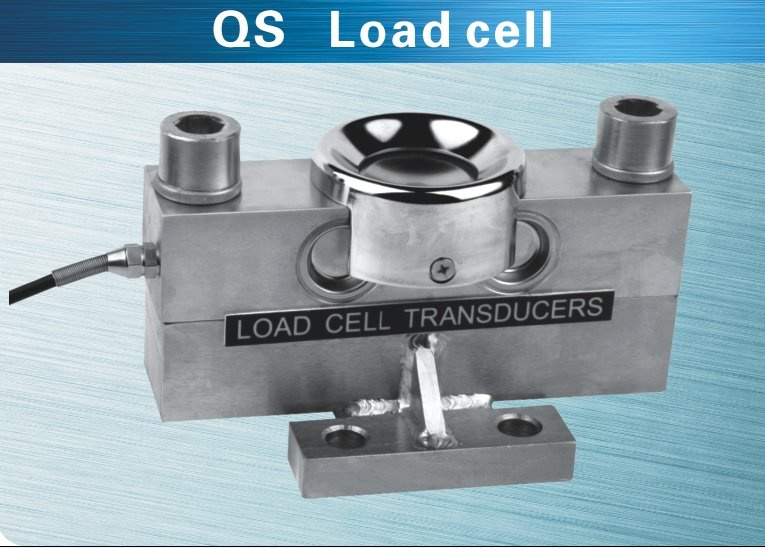

QS 30t Load Cell Sensor Price

1. Type: load cell

2. Model Number: compression QS50t ZF-Af

3. Applicable Place: truck scale, railway scale, blending scale, all kinds of special scales

FEATURES:

Capacity: 5t to 50t

Steel ball loading, strong restoration ability

Easy complete installation, high weighing accuracy

OIML C3 certificate

Alloy Steel

APPLICATION:

Truck scale

Railway scale

Blending scale and all kinds of weighing apparatus

Outline Dimension:
Rated capacity(t)	L	L1	L2	L3	W	W1	W2	H	H1	H2	C1	C2	C3
5	224	125	80	45	135	100	10	168.8	11	20	Φ68	Φ30	Φ18
10,15,20,25,30	240	125	80	45	135	100	10	223.5	11	20	Φ85~88	Φ30	Φ18
40	240	125	80	45	135	100	10	239.5	11	20	Φ88	Φ30	Φ18
50	340	160	124	45	160	124	10	260	11	20	Φ98	Φ40	Φ22

SPECIFICATION:
Rated capacity: 5ton to 50ton	Operating temperature range: -30 to +70ºC
Rated output:2.0±0.002mv/v	Maximum safe overload;150% OF R.C
Combined error:±0.03% F.S	Ultimate safe overload;200% OF R.C
Non-repeatability:±0.02% F.S	Recommended Excitation;10 to 12V DC
Non-linearity:±0.02% F.S	Maximum Excitation;15V DC
Hysteresis error:±0.02% F.S	Environment protection: IP68
Zero balance: ±1% F.S	Input impedance: 750±10Ω
Creep error(30minutes): ±0.02% F.S	Output impedance: 702±3Ω; 703±5Ω(cable≥15m);
Temperature effect on zero: ±0.02% F.S	Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S	Material: nickel-plated alloy steel;
Compensated temperature range: -10 to +40ºC	Cable length: 5.2meter(5t);8meter(10t); 10meter(15t); 10/12meter(20t);12/16meter(25t~50t),diameter 6mm

FAQ

1.Can you customized the scale design for us?
Yes, we have professional team with rich experience of all type scales design by CAD software.you only need to tell us scale design or send us the technical drawing you want, so that we can customize according to your request.
2.Can you also offer truck scales weighing scales for us?
Yes, we can offer different models of different capacity and size of truck weighing scales to meet different request of customers.

3..How about your weighing scales quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of electronic truck scales and truck weighing scales.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard. Our products are running well in more than 30 countries
4.How we visit your factory and what will be the procedure?
Our company located in Quanzhou, FU JIAN province, our nearest airport is JIN JIANG airport, if you take plane, it will need about 1 hours from Guangzhou city, 1.5hours from shanghai and 2 hour from Beijing.We will pick you up from airport as well as the train station.Welcome you and your team to visit us at any time!
5.Your truck scale price is high, is there any discount?
We always provide high quality weighing scales with reasonable prices.Our truck scales have enough quality standard to make sure the scale can work at different sourrounings situations. Our marketing style is quality equal to price, the price will be acceptable for our clients and durable for our productsAnyhow, when we will negotiate the price with each other during our meeting in factory and try our best to get a good satisfaction.
