Sqb Load Cell 250kg~2500kg

Name: Sqb Load Cell 250kg~2500kg
Brand: all-electronics-online.com
SKU: 812831445
Availability: InStock
Rating: 4.5 (37 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SQB
Usage:	Pressure Sensor
Output:	Switching Transducer
Theory:	Resistance Sensor

Product Description

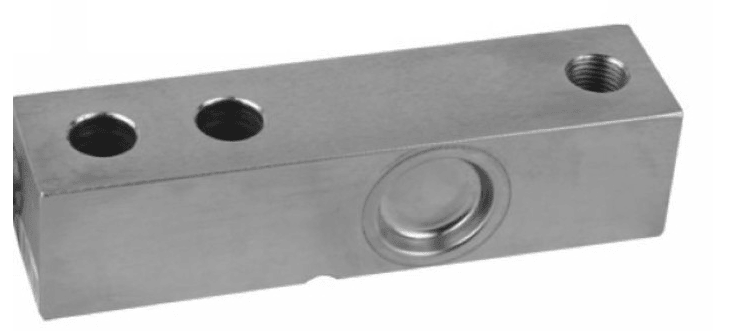

SQB load cell 250KG~2500KG

SQB load cell

1. Production model: cantilever beam SQB

2. Applicable place: floor scale, blending control system, platform scale

3. Outline Dimension mm(inch)

SPECIFICATION:
Rated capacity: 10klb to 125klb	Operating temperature range: -30 to +70ºC
Rated output:3.0±0.003mv/v	Maximum safe overload;150% OF R.C
Combined error:±0.05% F.S	Ultimate safe overload;200% OF R.C
Non-repeatability:±0.02% F.S	Recommended Excitation;10 to 12V DC
Non-linearity:±0.05% F.S	Maximum Excitation;15V DC
Hysteresis error:±0.03% F.S	Environment protection: IP68
Zero balance: ±1% F.S	Input impedance: 750±10Ω
Creep error(30minutes): ±0.03% F.S	Output impedance: 702±3Ω
Temperature effect on zero: ±0.02% F.S	Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S	Material: nickel-plated alloy steel
Compensated temperature range: -10 to +40ºC	Cable length: 12/16meter, diameter 6mm

Technical parameter 4 wires: Exc+(Red); Exc -(Black); Sig+(Green); Sig-(White)

Rated capacities	1,1.5,2,2.5t
Sensitivity	3.0±0.003mV/V
Total error	±0.03%F.S;±0.05%F.S
Creep(30min)	±0.02%F.S
Zero balance	±1%F.S
TCO	±0.02%F.S/10°C
TC SPAN	±0.02%F.S/10°C
Input resistance	400±10Ω
Output resistance	352±2Ω
Insulation resistance	≥5000MΩ
Operating Temp Rang	-30°C~+70°C
Maximum safe overload	150%F.S
Ultimate overload	250%F.S
Excitation, recommended	10~12V DC
Excitation, maximum	15V DC
Protection class	IP68
Construction	Alloy Steel;Stainless Steel
Cable	Length: 3m, Diameter: 6mm(Stainless Steel)

FAQ

1.Can you customized the scale design for us?
Yes, we have professional team with rich experience of all type scales design by CAD software.you only need to tell us scale design or send us the technical drawing you want, so that we can customize according to your request.
2.Can you also offer truck scales weighing scales for us?
Yes, we can offer different models of different capacity and size of truck weighing scales to meet different request of customers.

3..How about your weighing scales quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of electronic truck scales and truck weighing scales.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard. Our products are running well in more than 30 countries
4.How we visit your factory and what will be the procedure?
Our company located in Quanzhou, FU JIAN province, our nearest airport is JIN JIANG airport, if you take plane, it will need about 1 hours from Guangzhou city, 1.5hours from shanghai and 2 hour from Beijing.We will pick you up from airport as well as the train station.Welcome you and your team to visit us at any time!
5.Your truck scale price is high, is there any discount?
We always provide high quality weighing scales with reasonable prices.Our truck scales have enough quality standard to make sure the scale can work at different sourrounings situations. Our marketing style is quality equal to price, the price will be acceptable for our clients and durable for our productsAnyhow, when we will negotiate the price with each other during our meeting in factory and try our best to get a good satisfaction.

Why you choose us? ---- IMPORTANT!!
1/ PROFESSIONAL EXPERIENCE
2/ RELIABLE QUALITY GUANRANTEED
3/ REASONABLE PRICE BASED ON ITS QUALITY
4/ STABLE WORKING EASY INSTALL AND MAINTANCE
5/ SPECIAL SERVICE AND IN-TIME SERVICE BEFORE AND AFTER SALES
6/ MATURE TECHNICS UPDATE

Company profile:

Quanzhou Wanggong Electronic scales Co., Ltd is a leading ISO accredited manufacturer and supplier of weighing instruments, such as truck scales, electronic truck scales, weighbridge, floor scales, hopper weighing scales, platform scales, crane scales and all kinds of weighing system with 40 years experience in this field since 1976.

Our commitment to you

As an experienced manufacturer, we are committed to satisfying our customers' needs for-

* Quality products

* Reasonable prices

* Efficient and speedy deliveries

And last but not least,

* Professional customer service team to handle all your enquiries within 24 hours!

Our products:

As experts in this field, we are able to offer a wide range of weighing scales to our customers, including tailor-made products. Our products include, but not limited to the following:

Truck scales

Weighbridge

Electronic platform scales

Floor scales

Livestock scales

Hopper weighing scales

Belt scales

Unmanned automatic weighing system

Explosion-proof weighing products

Our machines

38 sets modern electronic testing equipment

800T Bending machine

Auto-welding machine

Cutting machine, max length 8 meters

Pre-arch machine
